Description

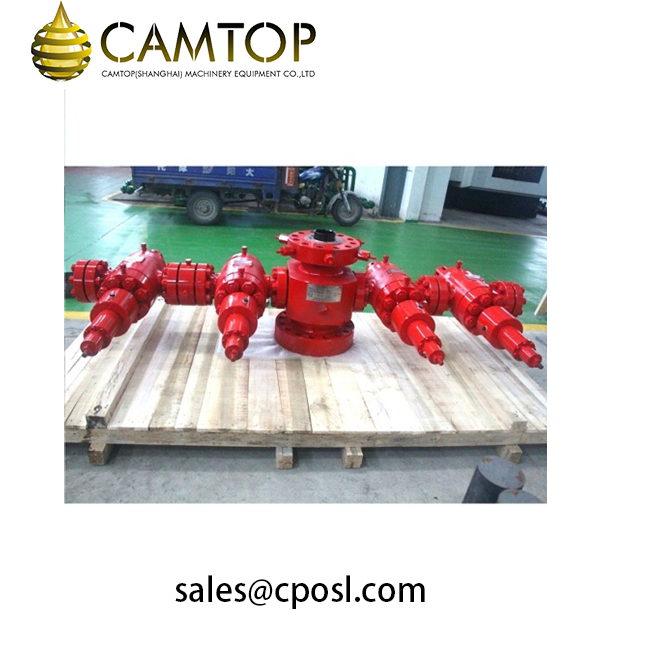

PSL3G Wellhead Assembly and Xmas Tree for Shale Gas Exploration
| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB,CIF,EXW |
| Payment Terms: | L/C, T/T |
| Place of Origin: | Jiangsu, China (Mainland) |
| Means of Transport: | Ocean |
| Production Capacity: | 1000 Sets/Year |
| Packing: | Fumigation-Free… |
Product Attribute
| Delivery Date: | 45 days | Product Name: | Shale Gas Wellhead Assembly Christmas Tree |
|---|---|---|---|
| Nominal Bore: | 2-1/16″ – 4-1/16″ | Rated Working Pressure: | 2000PSI – 15000PSI |
| Material Class: | AA, BB, CC, DD, EE, FF | Temp Class: | L, P, R, S, T, U |
| Performance Requirement: | PR1, PR2 | Product Specification Level: | PSL1, PSL2, PSL3, PSL3G |
| Material: | AISI 4130 Forged | Carried Standard: | API Spec 6A, NACE MR0175 |
| Application: | Shale Gas Well Drilling Production |
Product Description

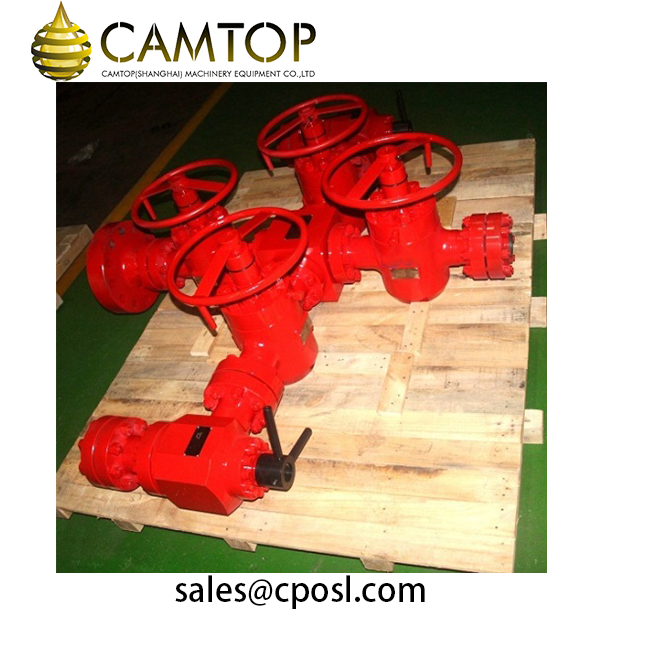

A Wellhead Assembly and Christmas Tree is the important component at the surface of an oil or gas well that provides the structural and pressure-containing interface for the drilling and production equipment. The primary purpose of a wellhead christmas tree is to provide the suspension point and pressure seals for the casing strings that run from the bottom of the hole sections to the surface pressure control equipment-Blowout Perventer (BOP). In petroleum and natural gas extraction, a Christmas Tree, or simply “tree”, is an assembly of valves, spools, and fittings used for an oil well, gas well, water injection well, water disposal well, gas injection well, condensate well and other types of wells. Christmas Tree is actually a wellhead assembly and they often be used together.
Shale Gas is natural gas that is found trapped within shale formations. Shale gas has become an increasingly important source of natural gas in the USA since the start of this century, and interest has spread to potential gas shales in the rest of the world.
As a professional Manufacturer of API-6A products, CAMTOP’S produces Wellhead Assembly and Christmas Trees for Shale Gas exploration. All of our Wellhead Assemblies & Christmas Trees are fully designed, manufactured, and tested in accordance with API 6A standards. Both PR1 and PR2 ratings are available. The wellhead christmas tree produced by our company is widely used in various types of well structures and well completion. It is also suitable for acidizing, fracturing, water injection, steam injection, and well testing. Meanwhile, we can also design and manufacture wellheads according to special requirements of drilling and completion conditions on site.
Detailed Specifications:
Product Name: Wellhead Assembly and Xmas Tree for Shale Gas Exploration
Nominal Bore Size: 2-1/16″ – 4-1/16″
Main Components: Casing Head Assembly, Tubing Head Assmbly, FC Gate Valves, Adapter Flange, Cross, Choke Valve, Casing Hangers, Tubing Hangers, Companion Flanges, Ring Gaskets, Needle Valves, Bull Plugs, VR Plugs, Pressure Gauges etc.
Working Pressure: 2000PSI – 15000PSI
Material Class: AA, BB, CC, DD, EE, FF
Material: AISI4130 (Integral Forged) or as per customers’ equirements
Temperature Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
PSL Level: PSL-1, PSL-2, PSL-3, PSL-3G
Standard: API-6A, NACE MR0175
Traceability: CAMTOP’S’s Shale Gas Wellhead Xmas Trees are supplied with full traceability documentation for each component.

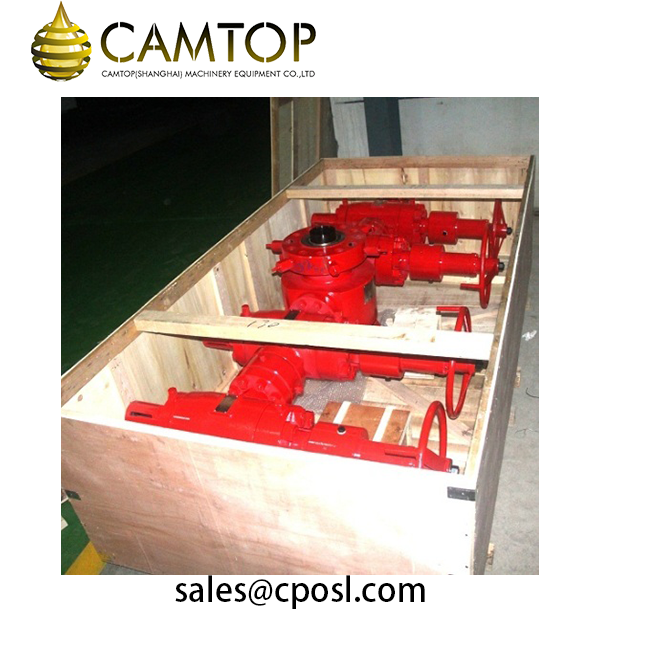

Packaging: Fumigation-Free Plywood Cases
Origin: Yancheng, China

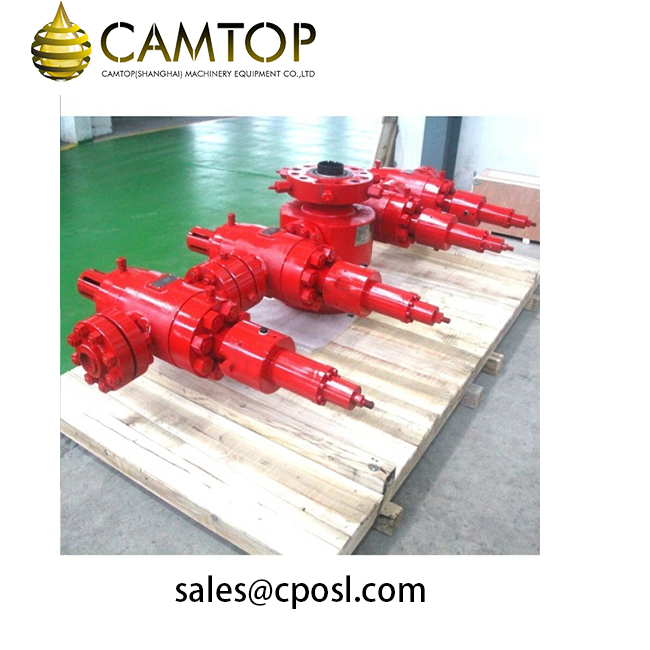

CAMTOP’s API-6A 15000PSI-PSL3G-Wellhead Assembly Xmas Tree for Shale Gas Exploration is ready for delivery
