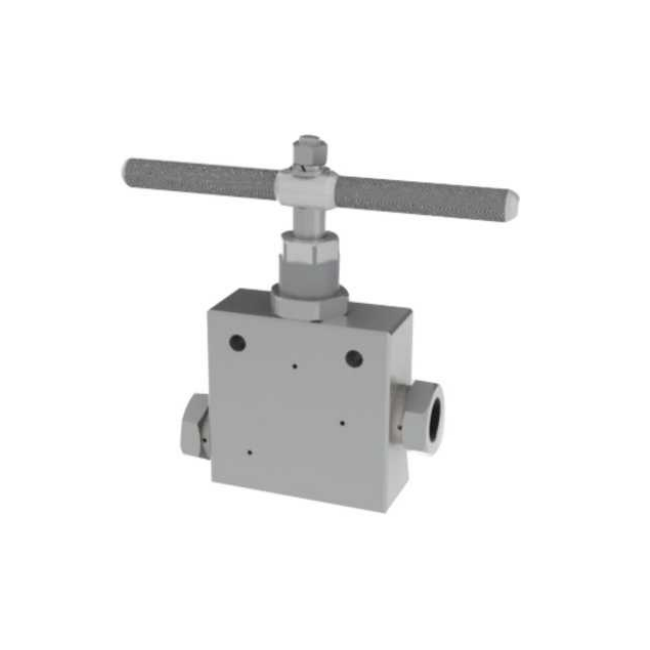

140MPa/Ф11 High Pressure Stop Valve（140GF11-00）
series globe valve is mainly used in hydraulic pipeline or hydraulic integrated system to control the flow of oil or cut-off, its valve core is conical seal and hydraulic balance type, with small opening force, good sealing performance and other characteristics.
This series of globe valves are mainly composed of valve body, valve core, adjusting rod, handwheel, etc. The valve body is made of steel forging, with nickel plating on the surface and excellent corrosion resistance.This series of globe valve has screw thread, flange, plate type and other installation connection, easy to choose.

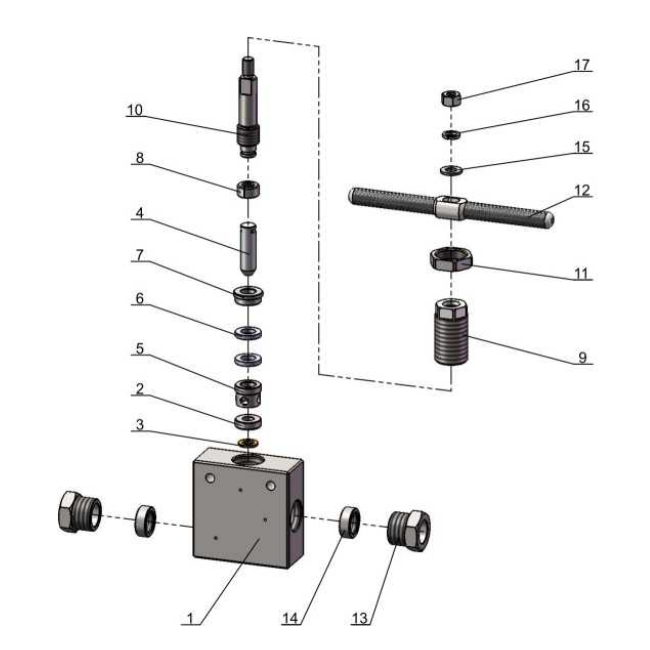

| 140 MPa/Ф11超高压截止阀140MPa/Ф11 High Pressure Stop Valve（140GF11-00） | ||||
|---|---|---|---|---|
| In repair kit维修包 | (Item)序号 | 图号(Part No.) | 名称(Description) | 数量Qty |
| 1 | 140GF11-01 | 阀体 Valve Body | 1 | |
| 2 | 140GF11-02 | 阀座 Valve Seat | 1 | |
| 3 | 140GF11-03 | 铜密封垫 Copper Seal Gasket | 1 | |
| ▲ | 4 | 140GF11-04 | 阀锥 Valve Core | 1 |
| 5 | 140GF11-05 | 支承套 Supporting Sleeve | 1 | |
| ▲ | 6 | 140GF11-06 | 密封垫 Seal Gasket | 2 |
| 7 | 140GF11-07 | 压套 Pressing Sleeve | 1 | |
| 8 | 140GF11-08 | 卡环Clasp | 1 | |
| 9 | 140GF11-09 | 阀盖 Valve Cap | 1 | |
| 10 | 140GF11-10 | 螺 杆 Valve Rod | 1 | |
| 11 | 140GF11-11 | 锁紧螺母 Lock Nut | 1 | |
| 12 | 140GF11-12 | 手 柄 Handle | 1 | |
| 13 | 140GF11-13 | 空心螺钉 Collar | 2 | |
| 14 | 140GF11-14 | 圆螺母 Gland | 2 | |
| 15 | GB95-2002 10 | 平垫圈 Flat Washer | 1 | |
| 16 | GB93-1987 10 | 弹簧垫圈 Spring Washer | 1 | |
| 17 | GB/T41-2000M10 | 六角螺母 Nut | 1 | |
