Description

Item No. Description gey No.Req.
Spare
Parts
Working Pressure(psi) 10,000 10,000 10,000 5,000 5,000 5,000 5,000
Bore(Inches) 183/4 135/g 11 211/4 183/4 163/4 135/g
   1 Lower Housing-Hubbed 1 156559 155008 一 一 151356 150948 151643
Lower Housing-Flanged 156473 152940 152345 150762 151397 151692 155458
   2 Upper Housing 1 156474 152704 152341 150763 151357 151191 151649
   3 Piston 1 156124 157506 152362 150764 151358 158180 152148
   4 Adapter Ring 1 157227 152701 155166 156600 156570 152668 151933

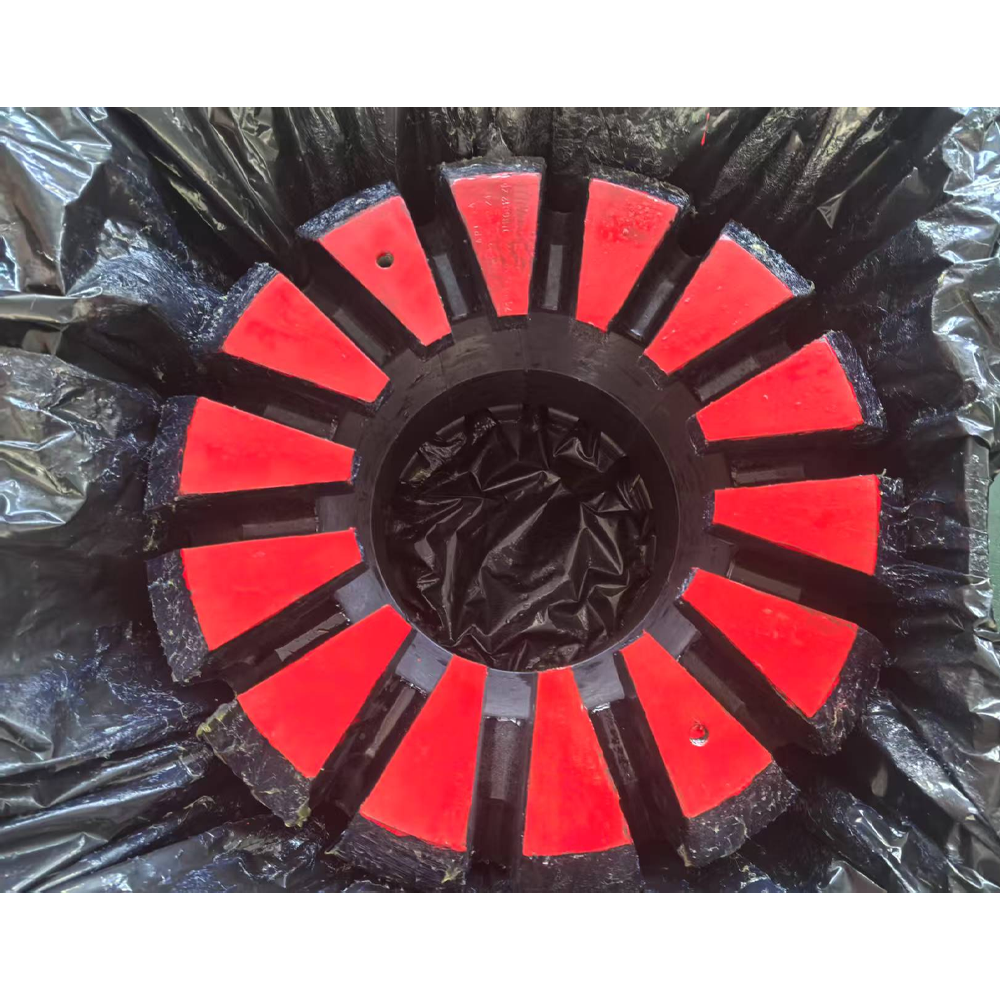

   5 Sealing Element 1 1
Nitrile(Blue) 155295 152693 152373 150853 151361 150851 150576
Natural(Red) 155294 152694 152374 150854 151362 150852 150577
   6 Stud 1 Set1 156171 152709 152351 150889 150889 150753 150753
   7 Nut 1 Set1 020348 020102 020102 020104 020104 020102 020102
   8 Seal-PistonID.Lower 1 1 031014 031146 031100 031018 030765 031012 030770
   9 Seal-PistonI.D.Upper 1 1 031236 031146 031100 031088 031082 031086 031097
   10 Seal-PistonO.D. 2 2 031237 031013 030767 031024 031048 031013 031029
   11 Seal-Adapter I.D.-Lower 1 1 031235 031148 031160 031025 031046 031014 030771
   12 Seal-Adapter I.D.-Upper 1 1 031235 031148 031160 031299 031294 031085 031096
   13 Seal-Adapter O.D. 1 1 031234 031015 031119 031026 031053 031015 030772
   14 Seal-AdapterTop 1 3 031365 031150 031120 031055 031053 031065 031094
   15 Wear Ring-Piston 2 150613 150613 150613 150613 150613 150613 150613
   16 Wear  Ring-
Lower  Housing		 1 150613 150613 150613 150613 150613 150613 150613
   17 Pipe Plug-2″NPT 2 一 一 2023957 一 一 2023957 一
2NPT 4 2023957 2023957 2023957 2023957 一
1/z”NPT 2 一 一 一 一 一 一 066329
   18 Lifting Eye 156566 156566 156566 156566 156566 156566 150819
   19 Anchor Shackle 2 060488 060495 060495 060495 060495 060495 060498
   20 SocketHead Cap Screw 8 010895 010895 010895 010895 010895 010895 010875
   21 Locking Segment 1 Set1 156128 156953 152355 150767 151363 150825 151658
   22 Locking Ring 1 156130 152700 152352 150888 151364 150826 151660
   23 Stud for Top API Hange 1 Set1 012231 012264 012254 011030 011029 011026 011024
   24 Nut for Top API Fange 1 Set1 020016 020014 020013 020015 020015 020014 020012
   NS2 Wear Ring-Adapter 1 150613 n/a 150613 152344 150613 n/a 152344
   NSZ Jack Screw 6 156172 150867 150867 150867 150867 150867 150867
   NS2 Eye Bolt-1″-8UN 2 150912 150912 150912 150912 150912 150912 150912
   NSZ HammerWrench 1 050819 050817 050817 050819 050819 050817 050817
Size(Inches) 11/4 1 1 11/4 11/4 1 1
   NSZ Pipe Plug /4″NPT 1 065008 065008 065008 065008 065008 065008 065008
   NS2 Seal Kit3 1 155566 155045 155168 155066 155068 155069 155070
  NS² Accumulator Kit4 1 155970 155970 155970 155970 155970 155970 152717
