3-position 5-Way Valve (35HR6-L10-F)

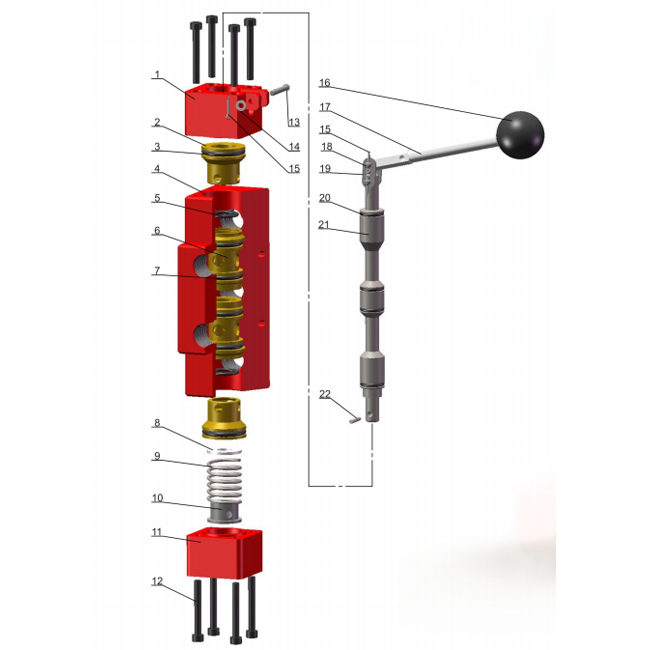

| 三位五通阀 3-position 5-Way Valve (35HR6-L10-F) | ||||
|---|---|---|---|---|
| In repair kit维修包 | (Item)序号 | 图号(Part No.) | 名称(Description) | 数量Qty |
| 1 | JY-35F-10 | 右端盖Right End | 1 | |
| 2 | JY-35F-5 | 套 Valve Sleeve | 2 | |
| ▲ | 3 | GB/T3452.1-1992 32×3.55 | O形密封圈O-Ring | 2 |
| 4 | JY-35F-6 | 阀体 Valve Body | 1 | |
| ▲ | 5 | GB 1235-76 22X2.4 | O形密封圈O-Ring | 2 |
| 6 | JY-35F-7 | 中间阀套 Inter Valve Sleeve | 2 | |
| ▲ | 7 | GB 1235-76 28X3.5 | O形密封圈O-Ring | 4 |
| 8 | JY-35F-4 | 挡板Retain plate | 1 | |
| 9 | JY-35F-3 | 弹簧 Spring | 1 | |
| 10 | JY-35F-2 | 弹簧Spring cap | 1 | |
| 11 | JY-35F-10 | 左端盖Left End | 1 | |
| 12 | GB/T 5780-2000 M5x40 | 内六角螺栓Screw | 8 | |
| 13 | JY-35F-9 | 销轴 Pin | 1 | |
| 14 | GB95-20004 | 平垫圈 Flat Washer | 1 | |
| 15 | GB/T91-2000 1.5×10 | 开口销Pin | 3 | |
| 16 | CA-10B | 手柄球Handle | 1 | |
| 17 | JY-35F-12 | 手柄杆Handle Pin | 1 | |
| 18 | JY-35F-11 | 销轴Pin | 2 | |
| 19 | JY-35F-13 | 连接片 Connecting Sheet | 2 | |
| ▲ | 20 | GB/T 3452.1-199212.5*16 | O形密封圈O-Ring | 4 |
| 21 | JY-35F-8 | 阀芯 Valve Core | 1 | |
| 22 | GB/T119.1-20003X16 | 圆柱销 Pin | 1 | |
| 23 | 3.4TQF-00-06 | 阀杆 Valve Stem | 1 | |
