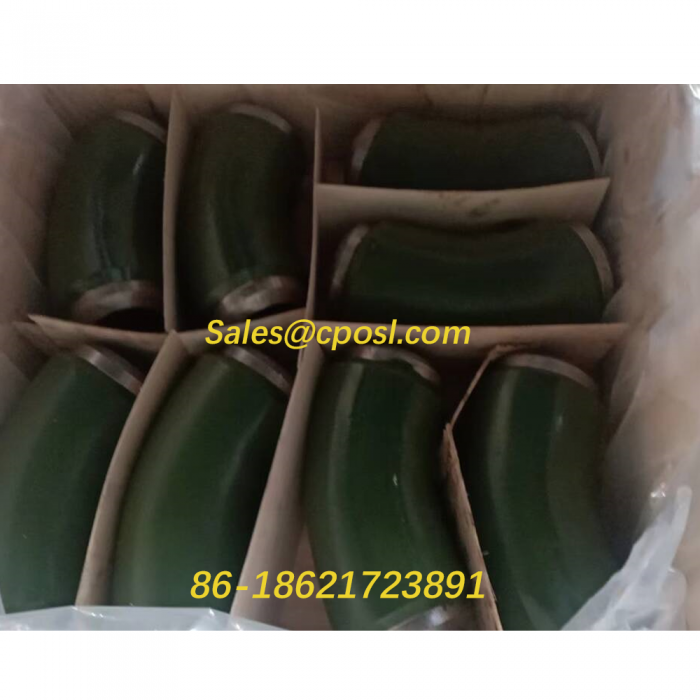

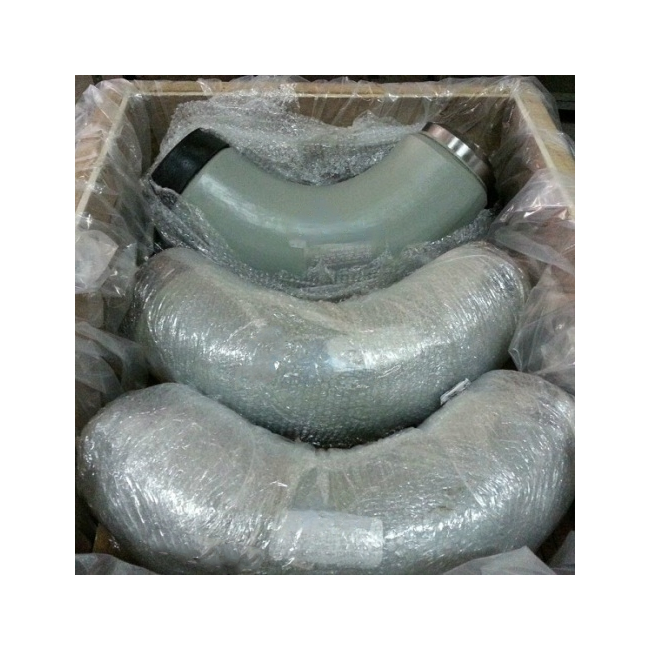

45 Degree Long Sweep Elbows in AISI 4130.
We hold a large selection of AISI 4130 45 Degree Long Sweep Elbows & Alloy Steel AISI 4130 fittings in stock to meet any project requirements. We are a trusted supplier to the oil and gas industry, providing international delivery with fast turn-around times.
2″ SCH XXS 45° LONG SWEEP ELBOW 10K PSI MAT AISI 4130 YS 75K PSI
Description
4130 Long Sweep Elbows (45°)
Camtop offer a full range of long sweep elbows from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. RBV Energy standard specification for our 4130 long sweep elbows is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
| Size | D | A | R | C | Weight (kgs) |
|---|---|---|---|---|---|
| 2″ NB SCH XXS | 60.3 | 118 | 150 | 56 | 9 |
| 3″ NB SCH XXS | 88.9 | 118 | 150 | 56 | 14 |
| 4″ NB SCH XXS | 114.3 | 162 | 210 | 75 | 26 |
| 5″ NB SCH XXS | 141.3 | 171 | 240 | 72 | 37 |
| 6″ NB SCH XXS | 168.3 | 203 | 305 | 25 | 57 |
| 5.5″ OD | 139.7 | 171 | 240 | 72 | 42 |
| 6.75″ OD | 171.45 | 203 | 305 | 25 | 72 |
