Full Flow High Pressure Manifold Crosses and Tees are closed die forged to ensure they have a correct grain flow, high integrity and uniform shape. Both 45° and 90° elbows are produced from hollow to tabular bars, hot formed on purpose made bending machines or forged in closed dies. Full ranges of httings form 2” to 6” are available with standard pressure ratings of 5000 PSI, 10000 PSI & 15000 PSI

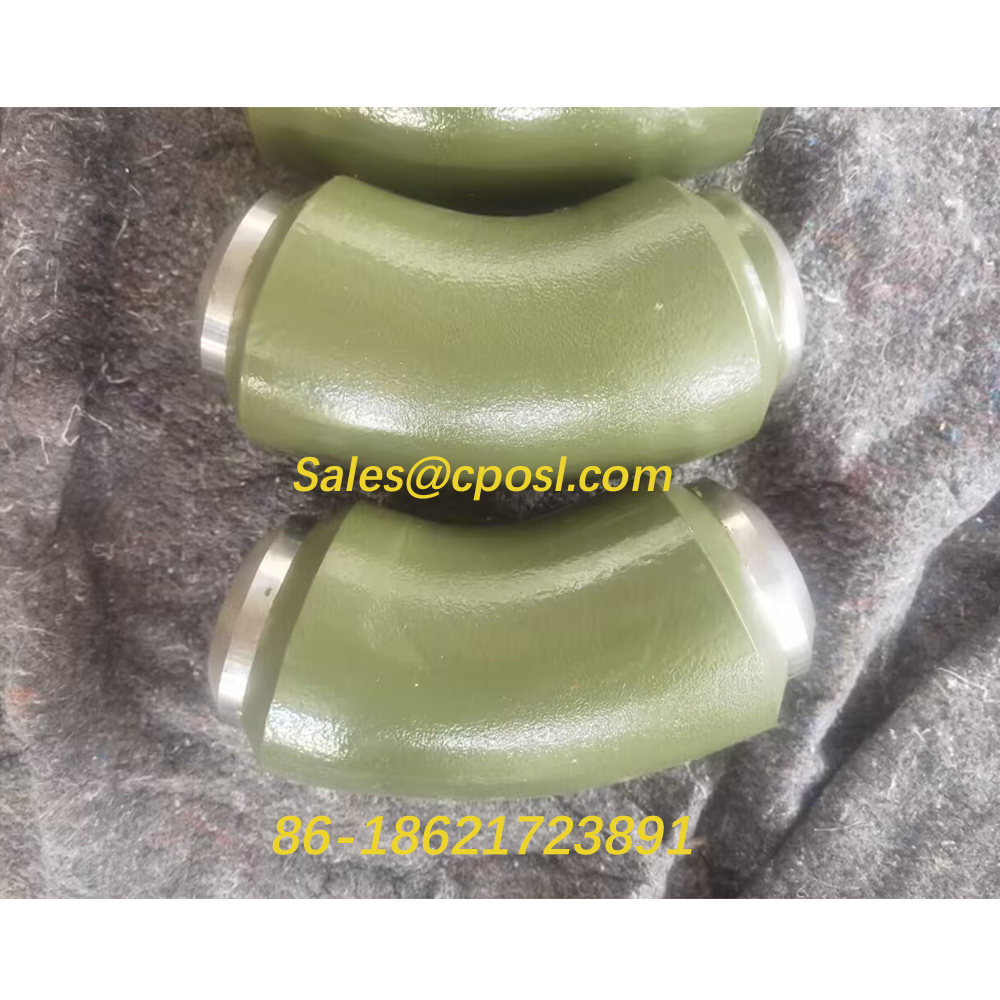

45-Degree Long Sweep Elbow
Description
45-Degree Long Sweep Elbow
Full Flow High Pressure Manifold Crosses and Tees are closed die forged to ensure they have a correct grain flow, high integrity and uniform shape. Both 45° and 90° elbows are produced from hollow to tabular bars, hot formed on purpose made bending machines or forged in closed dies. Full ranges of httings form 2” to 6” are available with standard pressure ratings of 5000 PSI, 10000 PSI & 15000 PSI

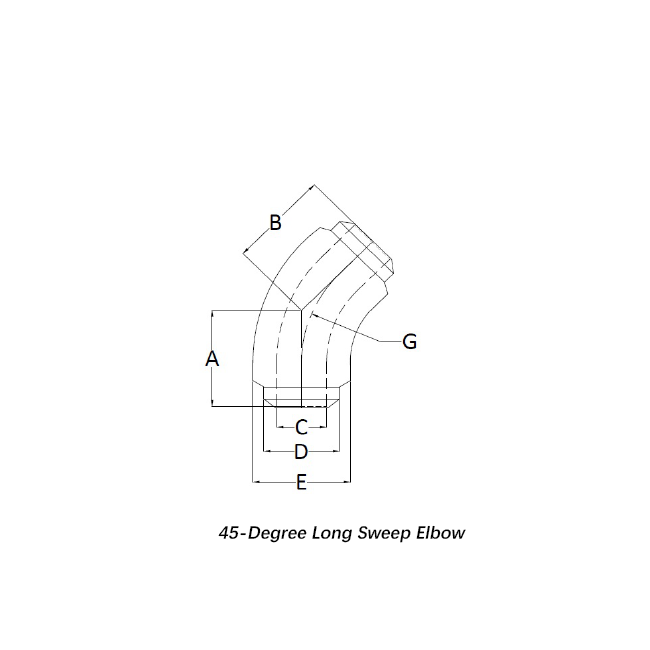

| Nominal Bore | A | B | E Cast OD |
G Rad |
XX Strong | SCHED.160 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C ID |
D OD |
Approx. Wt. (kg) |
Part No. | C ID |
D OD |
Approx. Wt. (kg) |
Part No. | |||||
| 2″ | 4.65 | 4.65 | 3.5 | 5.91 | 1.5 | 2.375 | 10 | SEF2-0020 | 1.69 | 2.375 | 8 | SEF2-1020 |
| 3″ | 4.65 | 4.65 | 4.5 | 5.91 | 2.3 | 3.5 | 14 | SM-1406 | 2.62 | 3.5 | 13 | SEF2-1030 |
| 4″ | 6.38 | 6.38 | 5.5 | 8.27 | 3.15 | 4.5 | 29 | SEF2-0030 | 3.44 | 4.5 | 28 | SEF2-1040 |
| 5″ | 6.73 | 6.73 | 6.6 | 9.45 | 4.06 | 5.56 | 38 | SEF2-0050 | 4.31 | 5.56 | 36 | SEF2-1050 |
| 6″ | 8 | 8 | 8.25 | 12 | 4.9 | 6.625 | 73 | SEF2-0060 | 5.19 | 6.625 | 71 | SEF2-1060 |
| 7″ | 6.61 | 6.61 | 7.75 | 9 | 5.13 | 7 | 42 | SM-1512 | ||||
