Description

Air-driven Hydraulic Pump Test Machine Stand for Sale

Air-driven Hydraulic Pump Test Machine Stand for Sale
Introduction

Air-driven Pressure Test Pump  are a fast, safe and simple method for hydrostatic testing, ideally

suited to work with the above plugs or on a stand alone basis eg heat exchanger tubes, pipes,

pressure vessels, hoses, etc.

hydraulic pump testing machine   are for oil, water or aggressive medium are complete hydraulic units

ready for connection which are provided for generating operating pressure up to 1,500bar.

The pressure will be generated by means of a pneumatically operated pump. The pump will be connected to the existing industrial compressed-air ductwork system.

Advantages

– Standstill of the pump when reaching the set final pressure

– No energy consumption in case of long pressure holding times

– No dissipated heat during the pressure holding phase

– Substitute of leakage by automatic re-delivery through the pump

– Regulator to control inlet air supply

– High pressure bleed valve and high pressure outlet

– Simple air-driven pump

– Test in the field or in the shop

– Simple installation, operationally reliable, easy to maintain

Technical parameters

Item Description
Medium Water,gas,glycol kinds of chemicals
Pressure 0~1500bar
Flow 0~26.39GPM(it’s customize)
Pressure accuracy ±1%FS
High pressure gauge 0~2000bar
Needle valve 412bar~2000bar(it’s customize)
Pressure regulator YES
Bleed-off valve YES
Air compressor N/A(it’s customize)
Water tank YES
Record N/A/mechanical/electronic recorder

Schematic Drawings

Air-driven Hydraulic Pump Test Machine Stand for Sale

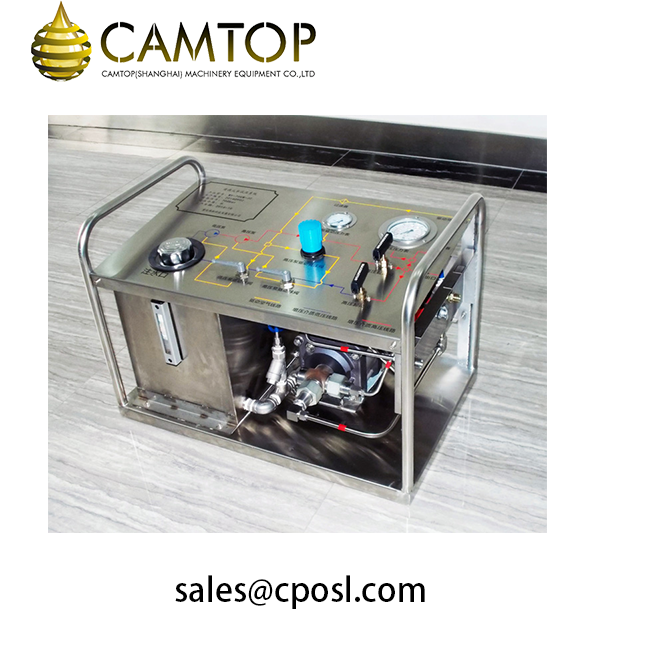

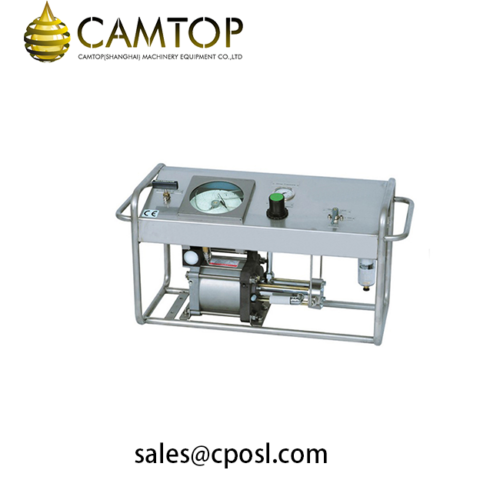

Product details

Air-driven Hydraulic Pump Test Machine Stand for Sale
