Description

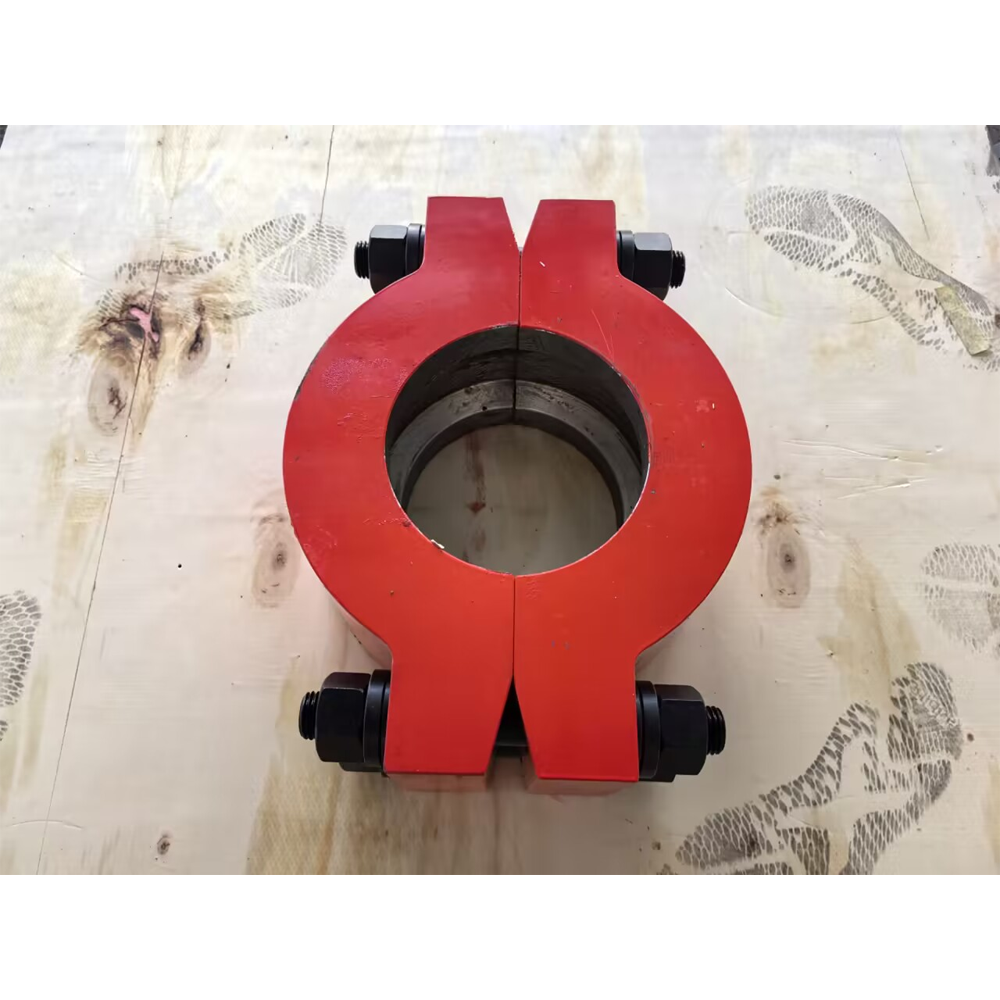

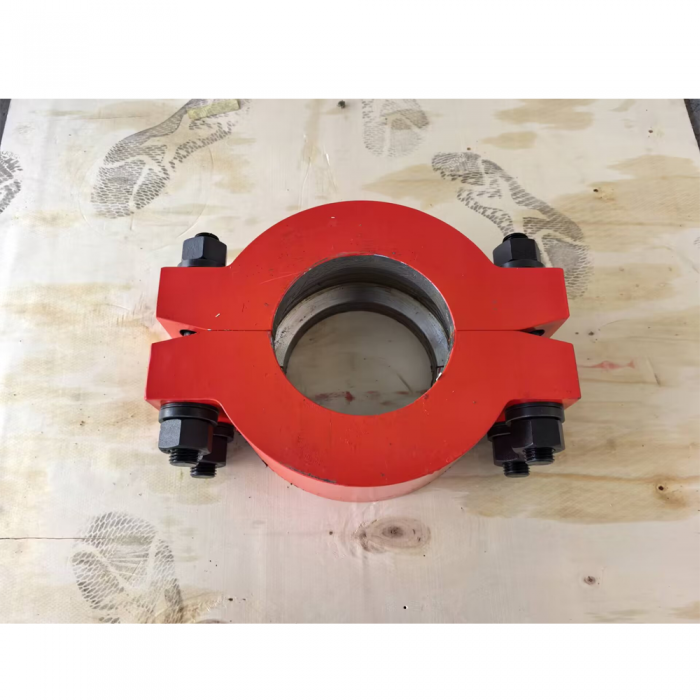

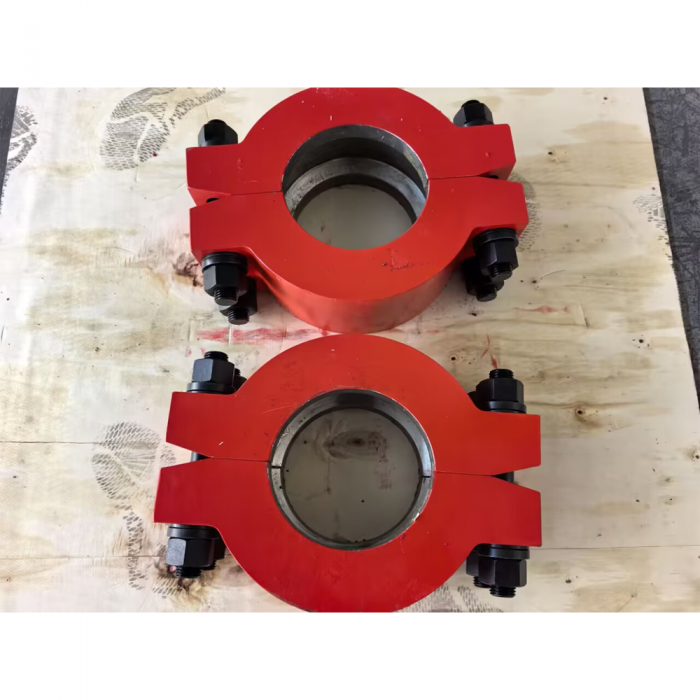

Our clamps provide a reliable means to  API and other hub connections, any of the equipment in the following list may have clamp hub connections: wellhead equipment, drilling equipment, manifold system.

Our clamps allow faster and easier make up. Where limited space requires, clamp adjustment allows easy access to nuts and bolts. Clamp have 360.infinite adjustability.

We have peformed stress analysis on each clamp size using formulas outlined in “Summary of design” to demonstrate conformance with the design allowable stresses specified in API Spe 16A, first edition.

  • Fit all hub connections specified in API Spec 16A plus many other popular hub

connections.

  • Made from Forged Low Alloy Steel, qualified to the same standards API Spec 16A

requires for flanges.

  • 100% dimensional, hardness and magnetic particle inspected.
  • Self-aligning bearing washers to evenly distribute bolting stress.
  • Special coatings on bolts, nuts, and washers to ease make and break of clamp hub

connections.

  • Swivel lifting eyes on larger sizes, to make handling easy, quick and safe.
CLAMP
NO.		 NOMINAL
BORE		 WORKING
PRESSURE
(PSI)		 RING
GASKET		 OUTER
WASHER
PART NO
8 REQ’D		 INNER
WASHER
PART NO
8 REQ’D		 BOLT SIZE BOLT
PART NO
4 REQ’D.		 NUT
PART NO
8 REQ’D		 IFTING EYE
SWIVEL		 APPROX.
ASSEMBLY
WEIGHT
(LBS.)
RX BX (2)
REQ’D.		 (4)
REQ’D.		 (6)
REQ’D.
1 1 13/16 10,000 20* 151 3715-05 3716-05 7/8-9UNX7 3900-01 3899-02 – – – 51
2 1/16 5,000 23* 152 3715-05 3716-05 7/8-9UNX7 3900-01 3899-02 – – – 51
2 1 13/16 15,000 20* 151 3715-05 3716-05 7/8-9UNX8 3900-02 3899-02 – – – 73
2 1/16 10,000 23* 152 3715-05 3716-05 7/8-9UNX8 3900-02 3899-02 – – – 73
2 9/16 5,000 24* 153 3715-05 3716-05 7/8-9UNX8 3900-02 3899-02 – – – 73
3 1 13/16 20.000 – 151 3715-06 3716-06 1-8UN X9 3900-05 3899-03 – – – 150
2 1/16 15.000 23* 152 3715-06 3716-06 1-8UN X9 3900-05 3899-03 – – – 150
2 1/16 20,000 – 152 3715-06 3716-06 1-8UN X9 3900-05 3899-03 – – – 150
2 9/16 15,000 24* 153 3715-06 3716-06 1-8UN X9 3900-05 3899-03 – – – 150
4 2 9/16 10,000 24* 153 3715-06 3716-06 1-8UN×8 1/2 3900-04 3899-03 – – – 80
3 1/8 5,000 27* 154 3715-06 3716-06 1-8UN×8 1/2 3900-04 3899-03 – – – 80
5 3 1/16 10,000 27* 154 3715-06 3716-06 1-8UN×8 1/2 3900-04 3899-03 – – – 82
4 1/16 5,000 35* 155 3715-06 3716-06 1-8UN×8 1/2 3900-04 3899-03 – – – 82
6 2 9/16 20,000 – 153 3715-07 3716-07 1 1/8-8UN×9 3/4 3900-06 3899-04 – – – 146
3 1/16 15,000 27* 154 3715-07 3716-07 1 1/8-8UN×9 3/4 3900-06 3899-04 – – – 146
4 1/16 10,000 35* 155 3715-07 3716-07 1 1/8-8UN×9 3/4 3900-06 3899-04 – – – 146
7 5-1/8 10.000 – 169* 3715-09 3716-09 1 1/8-8UN×12 3900-08 3899-06 – – – 234
7 1/16 5,000 45* 3715-09 3716-09 1 1/8-8UN×12 3900-08 3899-06 – – – 234
8 3 1/16 20,000 – 154 3715-10 3716-10 1 1/2-8UN×13 1/2 3900-11 3899-07 – – 3836 310
4 1/16 15,000 – 155 3715-10 3716-10 1 1/2-8UN×13 1/2 3900-11 3899-07 – – 3836 310
5-1/8 15,000 – 169* 3715-10 3716-10 1 1/2-8UN×13 1/2 3900-11 3899-07 – – 3836 310
7 1/16 5,000 – 156 3715-10 3716-10 1 1/2-8UN×13 1/2 3900-11 3899-07 – – 3836 310
7 1/16 10,000 45* – 3715-10 3716-10 1 1/2-8UN×13 1/2 3900-11 3899-07 – – 3836 310
9 5.000 49* 157 3715-10 3716-10 1 1/2-8UN×13 1/2 3900-11 3899-07 – – 3836 310
