Product Name:High pressure plug valve
Working Pressure:42MPA~150MPA
Nominal Bore:1-3 Inch
Working Medium:oil,natural gas,mud and gas containing H2S,CO2
Working Temperature:-29°C~121°C(Class PU)
Material Class:AA,BB,CC,DD,EE,FF,HH
Specification level:PSL1-4
API 6A 1″ 2″ 3″ Fig 1502 High Pressure Low Torque plug valve
Description
API 6A 1″ 2″ 3″ Fig 1502 High Pressure Low Torque plug valve
The plug valve is a necessary part that is utilized on the high pressure manifold for the cementing and fracturing operations in oil field and also suitable to control over the similar high pressure fluid. Featuring the compact structure, easy maintenance, small torque, rapid opening and easy operation, the plug valve is ideal for the cementing and fracturing manifolds.
Body of preventive maintenance and no need to be removed from the pipeline,no special tools required fro removal,which can realize the online maintenance
Special plating technology on cock,make excellent abrasion resistance and anticorrosive.

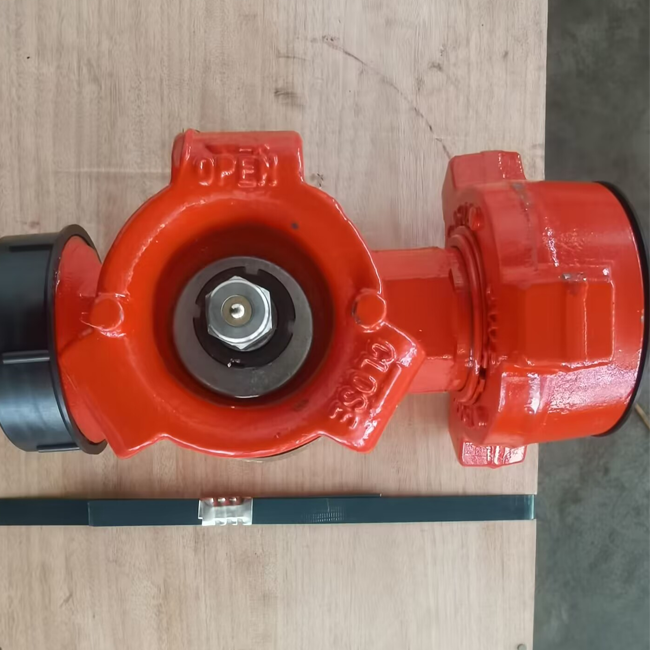

The switch of noil has obvious logo and limit mechanism
Plug valve have many options open device
Plug valve has a low torque performance,flexible operation of portable
Special sealing grease lubrication and sealing dual function
| S/N | Model | Description | Rated | WPEnd connection |
|---|---|---|---|---|
| 1 | SF42-1” | 1” plug valve | 6000psi | 2” male (LP) |
| 2 | SF70-1” | 1” plug vlave | 10000psi | 2” male (LP) |
| 3 | SF105-1” | 1” plug vlave | 15000psi | 2” male (LP) |
| 4 | SF105-1” | 1” plug vlave | 15000psi | 2” union(F*M) |
| 5 | SF42-2” | 2” plug vlave | 6000psi | 2” female (LP) |
| 6 | SF42-2” | 2” plug vlave | 6000psi | 2” union (F*M) |
| 7 | SF70-2” | 2” plug vlave | 10000psi | 2” female (LP) |
| 8 | SF105-2” | 2” plug vlave | 15000psi | 2” union (F*M) |
| 9 | SF42-3” | 3” plug vlave | 6000psi | 3” female (LP) |
| 10 | SF70-3” | 3” plug vlave | 10000psi | 3” female (LP) |
| 11 | SF105-3” | 3” plug vlave | 15000psi | 3” union (F*M) |
