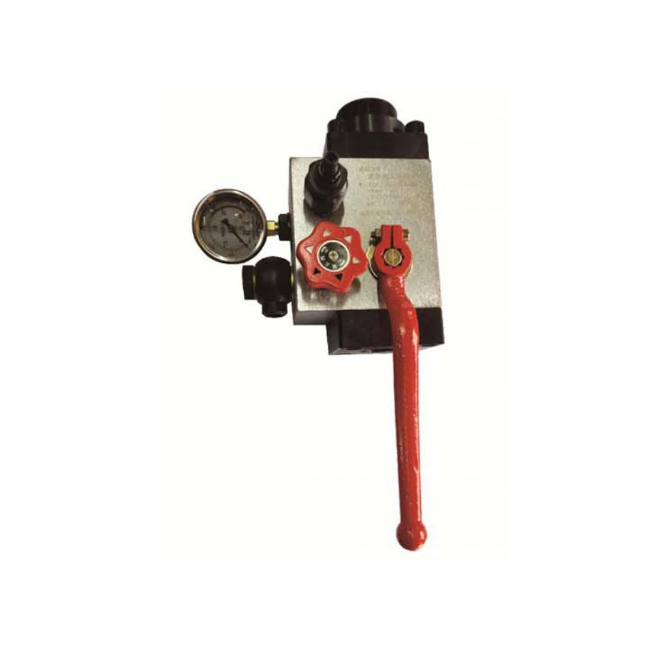

AQF type accumulator safety ball valve

Model AQF safety valves as a safety cut-off and discharge parts of accumulator, its main service to hydraulic bladder accumulator, is connected the accumulator with hydraulic system. The safety valve should holds pressure regular data in hydraulic system.

Description

AQF type accumulator safety ball valve

Model AQF safety valves as a safety cut-off and discharge parts of accumulator, its main service to hydraulic bladder accumulator, is connected the accumulator with hydraulic system. The safety valve should holds pressure regular data in hydraulic system.

1.Model code
AQF – L 32 H3-A-M60
1、Code:AQF Type safety valve group
2、Enter Oil Meatus:
L -Straight Way
3、Nominal Path:25、32、40mm
4、Pressure Grade:
H1-10MPa;H2-21MPa;H3-32MPa.
5、Structures:
A-Direct action overflow valve.
6、Joint thread of accumulator:
M27×2,M42×2,M60×2,M72×2

Model Connection size With the accumulator type Weight
S P
AQF-L25 M27×2、M42×2 M33×2 NXQ-0.4L~1L;NXQ-1.6L~6.3L 19
AQF-L32 M42×2、M60×2 M42×2 NXQ-1.6L~6.3L;NXQ-10L~50L 19.5
AQF-L40 M60×2、M72×2 M48×2 NXQ-10L~50L;NXQ-40L~125L 20
