Description

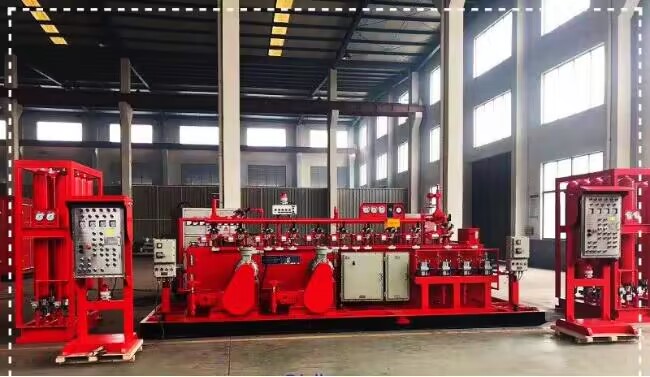

Bop Control System

                                                                                           -Electric Control Systems

Our Bop Control Systems are designed to comply with SY/T5053.2 and API Spec 16D standards and feature a fast plug-in facility, simplified automated controls with misoperation protection and a 120 minute backup battery. In addition, We can also supply to meet the ATEX explosion proof standard upon your request.

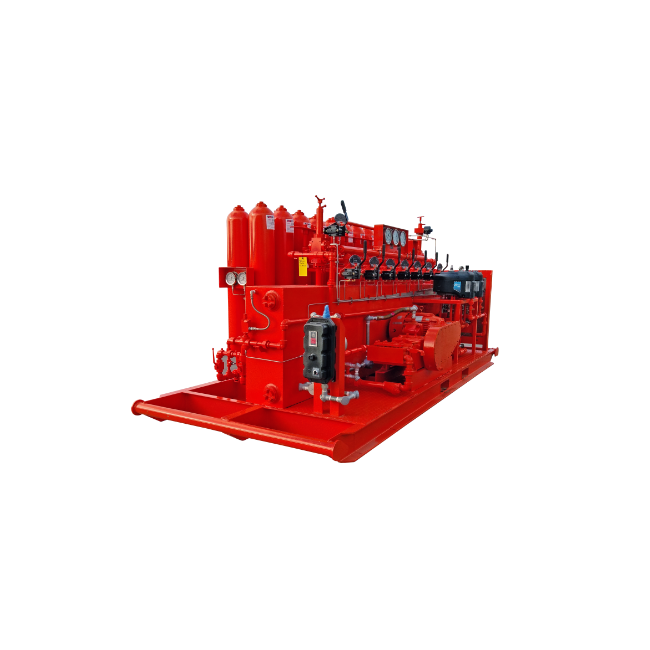

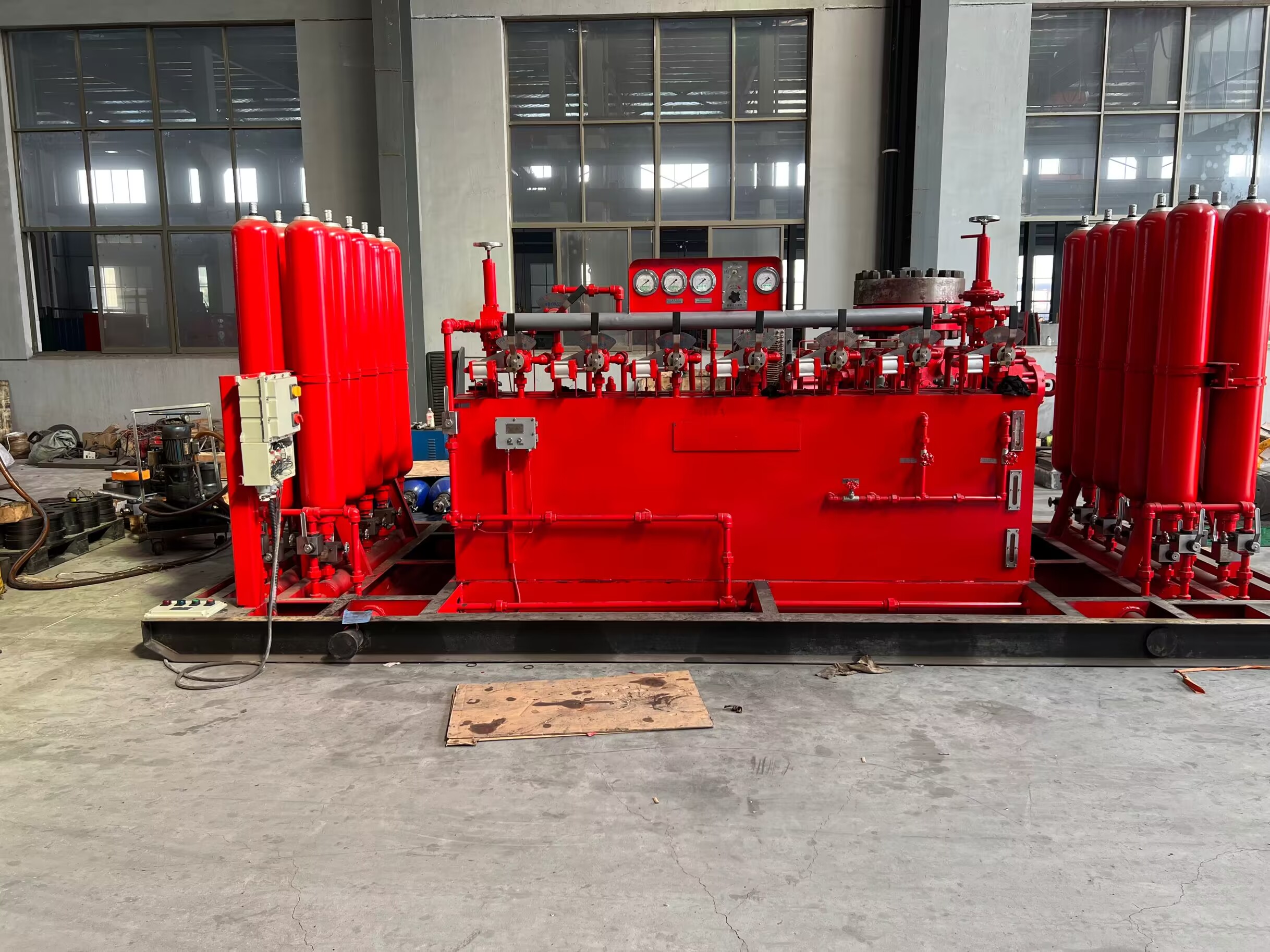

6 Station 20 Bottle Accumulator Bop Control System

Bop Control System Features

  • Uses advanced PLC and Profibus control technology to simplify and automate operation.
  • Designed and manufactured to comply with SY/T5053.2 and API Spec 16D standards
  • ATEX explosion-proof standard to meet European Security Standard CE available upon your request.
  • 120 minute backup battery for normal operation in the event of sudden power loss.
  • Stable working performance even under extreme working conditions.
  • Driller’s panel displays operation status notice and features misoperation protection.
  • Fast plug-in facility for easier installation.

Configuration Parameters of Electric Hydraulic Bop Control System

Model Number of controlled objects Accumulator unit Explosionproof motor Power (Kw)
Total volume (L) Available liquid volume (L) Installation mode
FKDQ1600-14 14 80×20 800 Side/rear 18.5×2
FKDQ1600-12 12 80×20 800 Side/rear 18.5×2
FKDQ1600-10 10 80×20 800 Side/rear 18.5×2
FKDQ1440-14 14 60×24 720 Side/rear 18.5×2
FKDQ1280-10 10 80×16 640 Side/rear 18.5×2
FKDQ1280-9 9 80×16 640 Side/rear 18.5×2
FKDQ1280-8 8 80×16 640 Side/rear 18.5×2
FKDQ1280-7 7 80×16 640 Side/rear 18.5×2
FKDQ1200-9 9 60×20 600 Side/rear 18.5×2
FKDQ1200-8 8 60×20 600 Side/rear 18.5×2
FKDQ960-8 8 60×16 480 Side/rear 18.5×2
FKDQ960-7 7 60×16 480 Side/rear 18.5×2
FKDQ800-8 8 40×20 400 Side/rear 18.5
FKDQ 800-7 7 40×20 400 Side/rear 18.5
FKDQ 800-6 6 40×20 400 Side/rear 18.5
FKDQ720-7 7 60×12 360 Side/rear 18.5
FKDQ 720-6 6 60×12 360 Side/rear 18.5
FKDQ 640-6 6 40×16 320 Side/rear 18.5
FKDQ 640-5 5 40×16 320 Side/rear 18.5
FKDQ 480-5 5 40×12 240 Side/rear 18.5
FKDQ 480-4 4 40×12 240 Side/rear 18.5
FKDQ320-5 5 40×8 160 Side/rear 15
FKDQ320-4 4 40×8 160 Side/rear 15
FKDQ320-3 3 40×8 160 Side/rear 15
FKDQ240-3 3 40×6 120 Side/rear 15
FKDQ200-4 4 25×8 100 Side/rear 15
FKDQ160-3 3 40×4 80 Side/rear 15
FKDQ150-2 2 50×3 75 Side/rear 15
FKDQ125-3 3 25×5 62.5 Side/rear 7.5/11
FKDQ80-3 3 40×2 40 Side/rear 7.5
FKDQ80-2 2 40×2 40 Side/rear 7.5
FKDQ75-2 2 25×3 62.5 Side/rear 7.5
FKDQ63-2 2 63×1 31.5 Side/rear 7.5
FKDQ50-2 2 25×2 25 Side/rear 7.5
FKDQ40-2 2 40×1 20 Side/rear 7.5
FKDQ25-2 2 25×2 12.5 Side/rear 7.5
FKDQ25-1 1 25×2 12.5 Side/rear 7.5
Model Pump system displacement Rated operating pressure of the system (Mpa) Maximum operating pressure of the system (Mpa)
Triplex pump (mL/r) Pneumatic pump (mL/ stroke)
FKDQ1600-14 80×2 120×4 21 31.5
FKDQ1600-12 80×2 120×4 21 31.5
FKDQ1600-10 80×2 120×4 21 31.5
FKDQ1440-14 80×2 120×4 21 31.5
FKDQ1280-10 80×2 120×3 21 31.5
FKDQ1280-9 80×2 120×3 21 31.5
FKDQ1280-8 80×2 120×2 21 31.5
FKDQ1280-7 80×2 120×2 21 31.5
FKDQ1200-9 80×2 120×3 21 31.5
FKDQ1200-8 80×2 120×2 21 31.5
FKDQ960-8 80×2 120×2 21 31.5
FKDQ960-7 80×2 120×2 21 31.5
FKDQ800-8 80 120 21 31.5
FKDQ 800-7 80 120 21 31.5
FKDQ 800-6 80 120 21 31.5
FKDQ720-7 80 120 21 31.5
FKDQ 720-6 80 120 21 31.5
FKDQ 640-6 80 120 21 31.5
FKDQ 640-5 80 120 21 31.5
FKDQ 480-5 80 120 21 31.5
FKDQ 480-4 80 120 21 31.5
FKDQ320-5 60 120 21 31.5
FKDQ320-4 60 120 21 31.5
FKDQ320-3 60 120 21 31.5
FKDQ240-3 60 120 21 31.5
FKDQ200-4 60 120 21 31.5
FKDQ160-3 60 120 21 31.5
FKDQ150-2 60 120 21 31.5
FKDQ125-3 28 – 21 21
FKDQ80-3 28 – 21 21
FKDQ80-2 28 – 21 21
FKDQ75-2 28 – 21 21
FKDQ63-2 28 – 21 21
FKDQ50-2 28 – 21 21
FKDQ40-2 28 – 21 21
FKDQ25-2 28 – 21 21
FKDQ25-1 28 – 21 21

Main Technical Parameters of Electric Hydraulic Control System

Normal pressure of the system: 21 Mpa 3000 psi
Pressure regulating range of the system: 0~14 Mpa 3000 psi
Nitrogen charging pressure of accumulator: 7±0.7 Mpa 3000 psi
Pressure switch setting range: 18.9~21 Mpa 2700~3000psi
Hydraulic/pneumatic switch setting range: 18.9~21 Mpa 2700~3000psi
Air supply pressure: 0.65~0.8 Mpa 93~115psi
Power supply: 380±19V / 50Hz
Optional as required by customers
Control power supply: 24V DC
Battery capacity: 10Ah
Communication interface: Profibus-Dp

Functional Configuration of Electric Hydraulic Control System

Model Electric oil pump Pneumatic oil pump Manual oil pump Alarm device Standby nitrogen system Protection house
FKDQ1600-14 • • ◊ • ◊ •
FKDQ1600-12 • • ◊ • ◊ •
FKDQ1600-10 • • ◊ • ◊ •
FKDQ1440-14 • • ◊ • ◊ •
FKDQ1280-10 • • ◊ • ◊ •
FKDQ1280-9 • • ◊ • ◊ •
FKDQ 1280-8 • • ◊ • ◊ •
FKDQ1280-7 • • ◊ • ◊ •
FKDQ1200-9 • • ◊ • ◊ •
FKDQ1200-8 • • ◊ • ◊ •
FKDQ960-8 • • ◊ • ◊ •
FKDQ960-7 • • ◊ • ◊ •
FKDQ800-8 • • ◊ • ◊ •
FKDQ 800-7 • • ◊ • ◊ •
FKDQ 800-6 • • ◊ • ◊ •
FKDQ720-7 • • ◊ • ◊ •
FKDQ 720-6 • • ◊ • ◊ •
FKDQ 640-6 • • ◊ • ◊ •
FKDQ 640-5 • • ◊ • ◊ •
FKDQ 480-5 • • ◊ • ◊ •
FKDQ 480-4 • • ◊ • ◊ •
FKDQ320-5 • • ◊ • ◊ •
FKDQ320-4 • • ◊ • ◊ •
FKDQ320-3 • • ◊ • ◊ •
FKDQ240-3 • • ◊ • ◊ •
FKDQ200-4 • • ◊ • ◊ •
FKDQ160-3 • • ◊ • ◊ •
FKDQ150-2 • • ◊ • ◊ •
FKDQ125-3 • x ◊ • ◊ •
FKDQ80-3 • x ◊ • ◊ •
FKDQ80-2 • x ◊ • ◊ •
FKDQ75-2 • x ◊ • ◊ •
FKDQ63-2 • x ◊ • ◊ •
FKDQ50-2 • x ◊ • ◊ •
FKDQ40-2 • x ◊ • ◊ •
FKDQ25-2 • x ◊ • ◊ •
FKDQ25-1 • x ◊ • ◊ •
Model Insulated House Driller’s console Auxiliary console Pipe rack and hose PN-T automatic recording system Zero pressure starting system
FKDQ1600-14 ◊ • ◊ ◊ ◊ ◊
FKDQ1600-12 ◊ • ◊ ◊ ◊ ◊
FKDQ1600-10 ◊ • ◊ ◊ ◊ ◊
FKDQ1440-14 ◊ • ◊ ◊ ◊ ◊
FKDQ1280-10 ◊ • ◊ ◊ ◊ ◊
FKDQ1280-9 ◊ • ◊ ◊ ◊ ◊
FKDQ 1280-8 ◊ • ◊ ◊ ◊ ◊
FKDQ1280-7 ◊ • ◊ ◊ ◊ ◊
FKDQ1200-9 ◊ • ◊ ◊ ◊ ◊
FKDQ1200-8 ◊ • ◊ ◊ ◊ ◊
FKDQ960-8 ◊ • ◊ ◊ ◊ ◊
FKDQ960-7 ◊ • ◊ ◊ ◊ ◊
FKDQ800-8 ◊ • ◊ ◊ ◊ ◊
FKDQ 800-7 ◊ • ◊ ◊ ◊ ◊
FKDQ 800-6 ◊ • ◊ ◊ ◊ ◊
FKDQ720-7 ◊ • ◊ ◊ ◊ ◊
FKDQ 720-6 ◊ • ◊ ◊ ◊ ◊
FKDQ 640-6 ◊ • ◊ ◊ ◊ ◊
FKDQ 640-5 ◊ • ◊ ◊ ◊ ◊
FKDQ 480-5 ◊ • ◊ ◊ ◊ ◊
FKDQ 480-4 ◊ • ◊ ◊ ◊ ◊
FKDQ320-5 ◊ • ◊ ◊ ◊ ◊
FKDQ320-4 ◊ • ◊ ◊ ◊ ◊
FKDQ320-3 ◊ • ◊ ◊ ◊ ◊
FKDQ240-3 ◊ • ◊ ◊ ◊ ◊
FKDQ200-4 ◊ • ◊ ◊ ◊ ◊
FKDQ160-3 ◊ • ◊ ◊ ◊ ◊
FKDQ150-2 ◊ • ◊ ◊ ◊ ◊
FKDQ125-3 ◊ • ◊ ◊ ◊ ◊
FKDQ80-3 ◊ • ◊ ◊ ◊ ◊
FKDQ80-2 ◊ • ◊ ◊ ◊ ◊
FKDQ75-2 ◊ • ◊ ◊ ◊ ◊
FKDQ63-2 ◊ • ◊ ◊ ◊ ◊
FKDQ50-2 ◊ • ◊ ◊ ◊ ◊
FKDQ40-2 ◊ • ◊ ◊ ◊ ◊
FKDQ25-2 ◊ • ◊ ◊ ◊ ◊
FKDQ25-1 ◊ • ◊ ◊ ◊ ◊

Note:

  1. Listed above are basic configurations of our products, where, “•” represents basic configuration and “◊” optional.
  2. The optional configuration here doesn’t mean that it is available in any model, which should be discussed at time of contract conclusion.
  3. Protection room width: 2100mm for common room and 2300mm for room with thermal insulation.
  4. Listed above are basic configurations, but special design and manufacturing can be provided upon request.
  5. The auxiliary driller’s console can be based on buttons or touch screen
  6. Pneumatic pump is not available to FKDQ series liquid control equipment. The remote console must be provided with air supply interface for pneumatic control.
