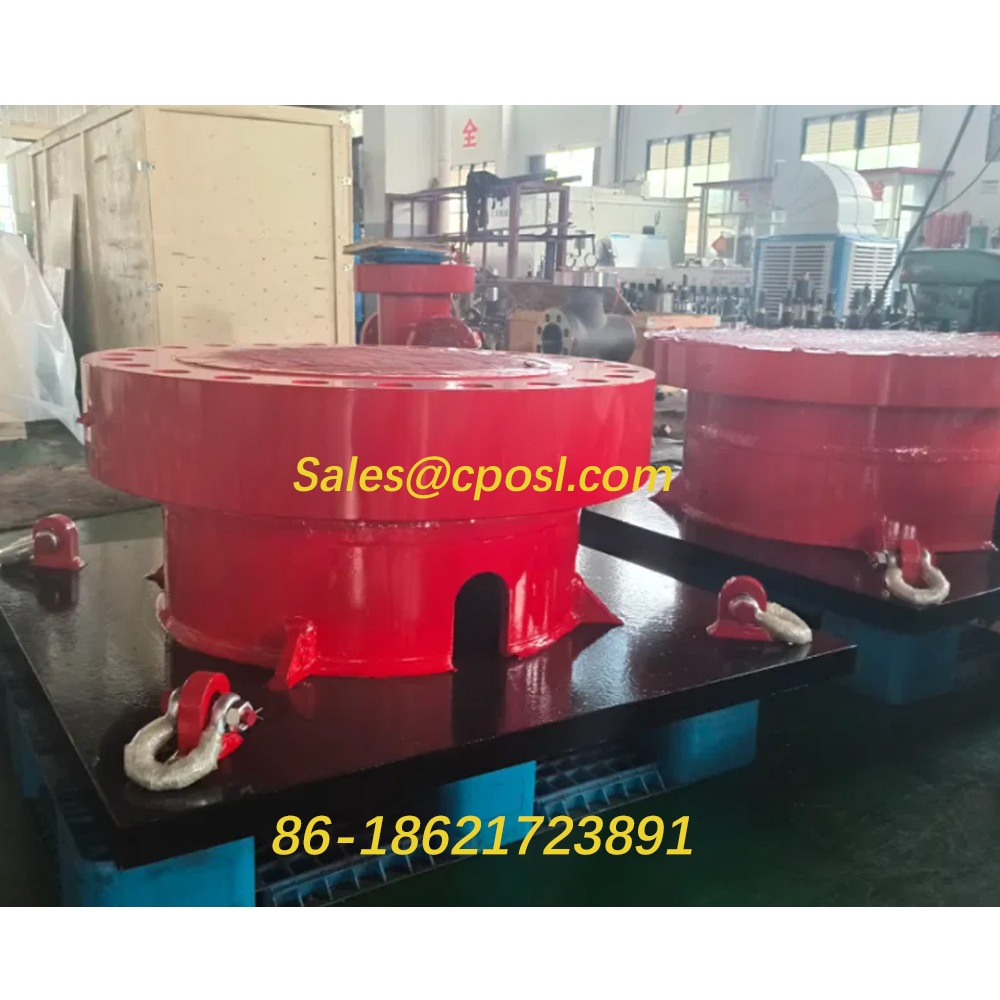

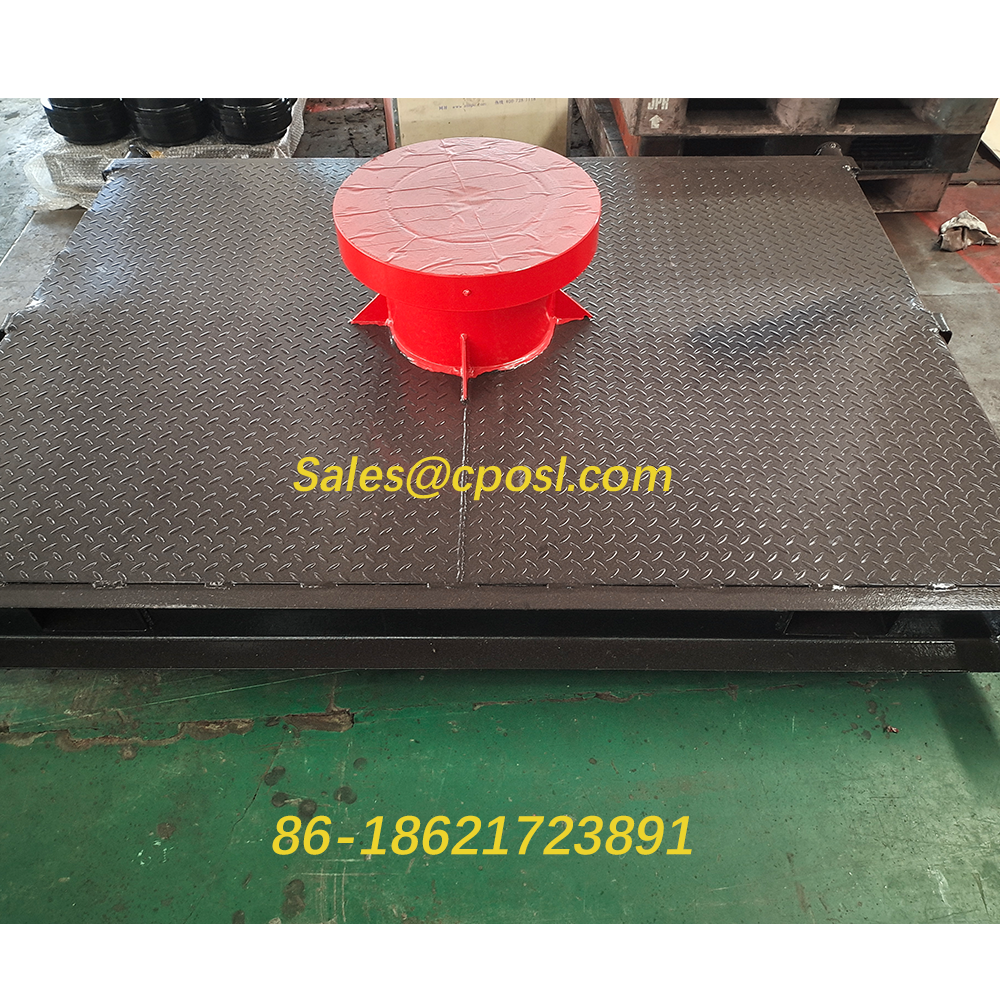

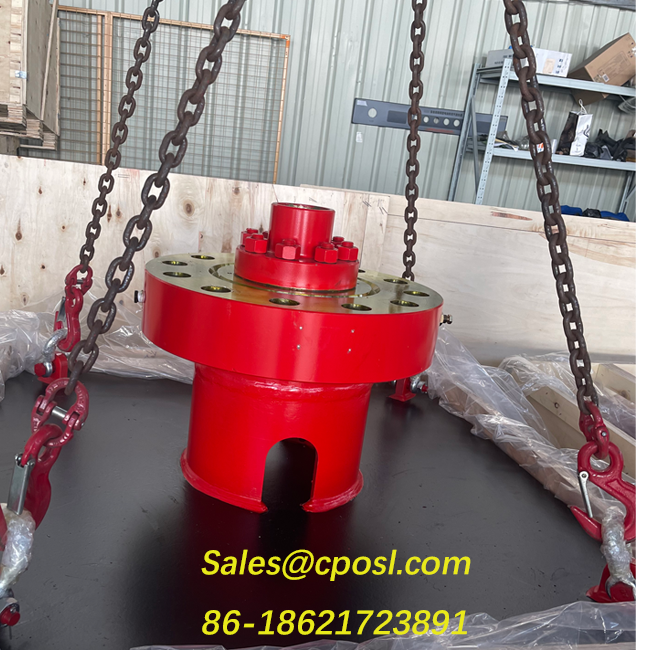

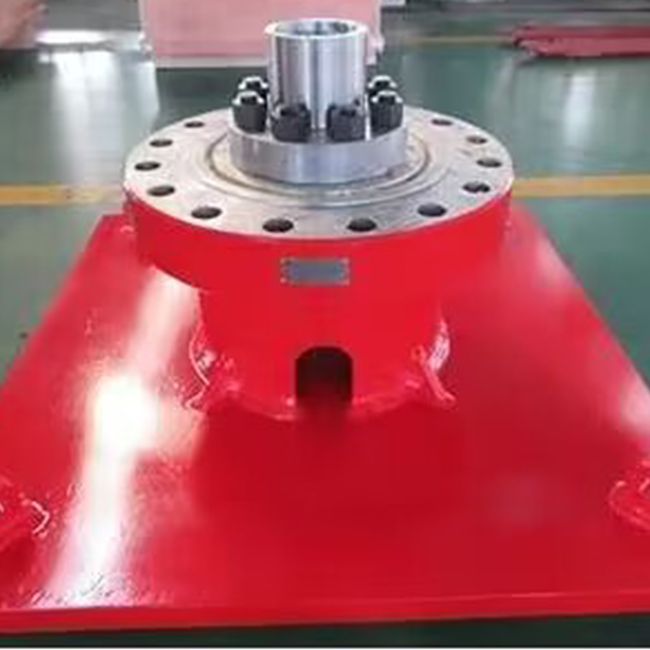

Type: BOP Test Stump with Transportable Skid
Size: 7-1/16”
Pressure Rating: 3,000psi / 5,000psi
Certification: API 6A Monogrammed
BOP Test Stump with Transportable Skid, 11″
Description
Blow Out Preventer (BOP) test stumps are often used for manufacturers to test their BOP or drillers testing operations at off-shore and on-shore drilling rig. BOP TEST STUMP is designed and manufactured in accordance with API 6A or API 16A standard.we provide all sizes and pressure ratings BOP TEST STUMP used for BOP test.
Specifications:
BOP TEST STUMP, ADAPTER
TYPE: VERTICAL BORE
SIZE: 7 1/16 IN
FLANGE: 7.1/16 IN X 3000 PSI WP R45
PRESSURE: 3000 PSI
ROVE MATERIAL: TOP STEINLESS STEEL LINED RING
GROOVES
MATERIAL CLASS: BB
API CERTIFICATE: API 6A
ADDITIONAL VALUE:
MOUNTED ON A 48IN BASE PLATE CHANGABLE MANDREL
RETAINING FOR 3.1/2IN EUE, 2 7/8IN EUE, 2 3/8IN EUE.
COMPLETE WITH:
– TEST PORT
-DRAIN PORT
– 4 LIFTING POINT
