BOP Test Unit

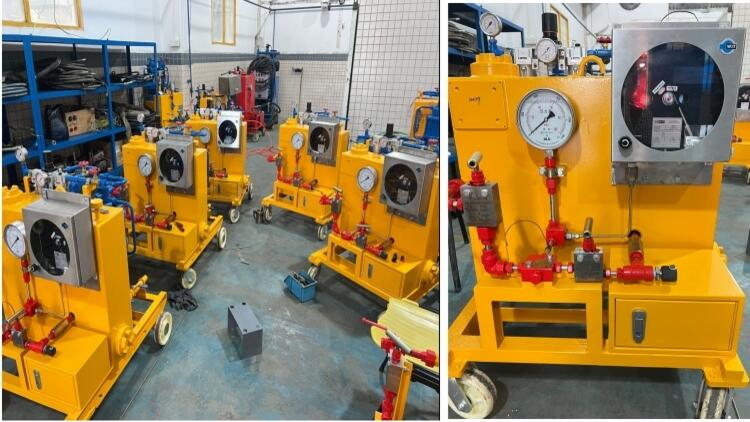

BOP Testing Unit, also called pressure test pump which is recommended for high pressure testing of BOP stacks, choke and kill lines, Christmas trees and any other type of equipment requiring high pressure static testing. Test Units are available in unit-mounted, portable, skid-mounted and high flow electric driven styles. Accessories include stand-mounted chart recorders and high pressure hose assemblies. High Pressure Test Units are provided in working pressure ranges from 5,000 to 20,000 PSI.

Accessories of pressure test unit, including stand-mounted chart recorders and high pressure BOP Accumulator Units, meet the design specification specified in API 16D. Customized pressure test pump is available to assure reliable control of the BOP stack with adequate reserve for continuous operation under emergency conditions.

Model Pneumatic pump Rated input
pressure		 Working
pressure		 Volume of
oil tank(L)		 Rated
explosion
pressure		 Automatic
recorder
1:30 1:100 1:60 1:200 1:225 (Mpa) (Mpa) (Mpa) (set)
QT21 1 0.7 21 45
QT21-J 1 0.7 21 45 1
QT35 1or1 0.58 35 100
QT35-J 1or1 0.58 35 100 1
QT70 1 1 0.7 70 100 84
QT70-J 1 1 0.7 70 100 84 1
QT140 1 1 0.7 140 100 168
QT140-J 1 1 0.7 140 100 168 1
QT140A 2 2 0.7 140 100 168
QT140A-J 2 2 0.7 140 100 168 1
QT140B 1 1 0.7 140 168
QT140B-J 1 1 0.7 140 168 1
QT140C 1 1 0.7 140 100 168
QT140C-J 1 1 0.7 140 100 168 1
QT200 1 1 0.9 200 100 225
QT200-J 1 1 0.9 200 100 225 1
QT200A 2 2 0.9 200 100 225
QT200A-J 2 2 0.9 200 100 225 1
