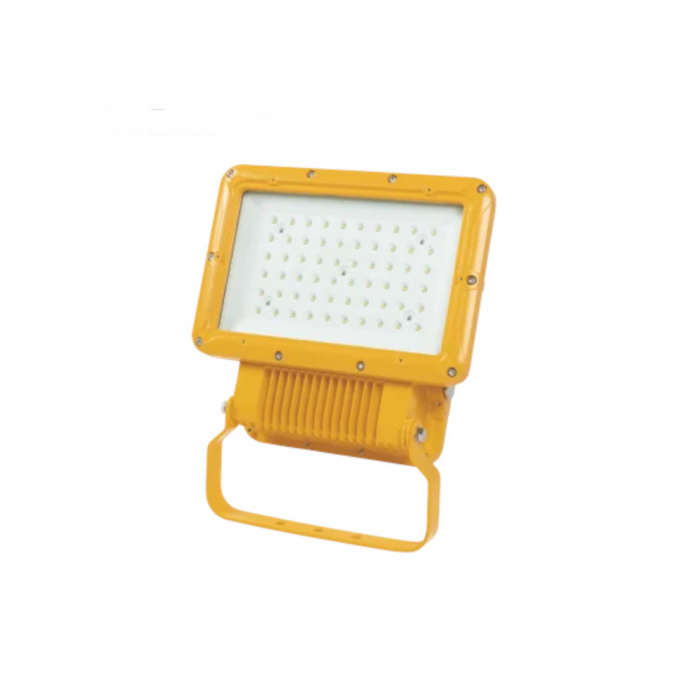

Description

Explosion protection to
EN, IEC
• Can be used in
Zone 1,2,21,22
Class I Zone 1,2
Division 1
Groups B, C, D

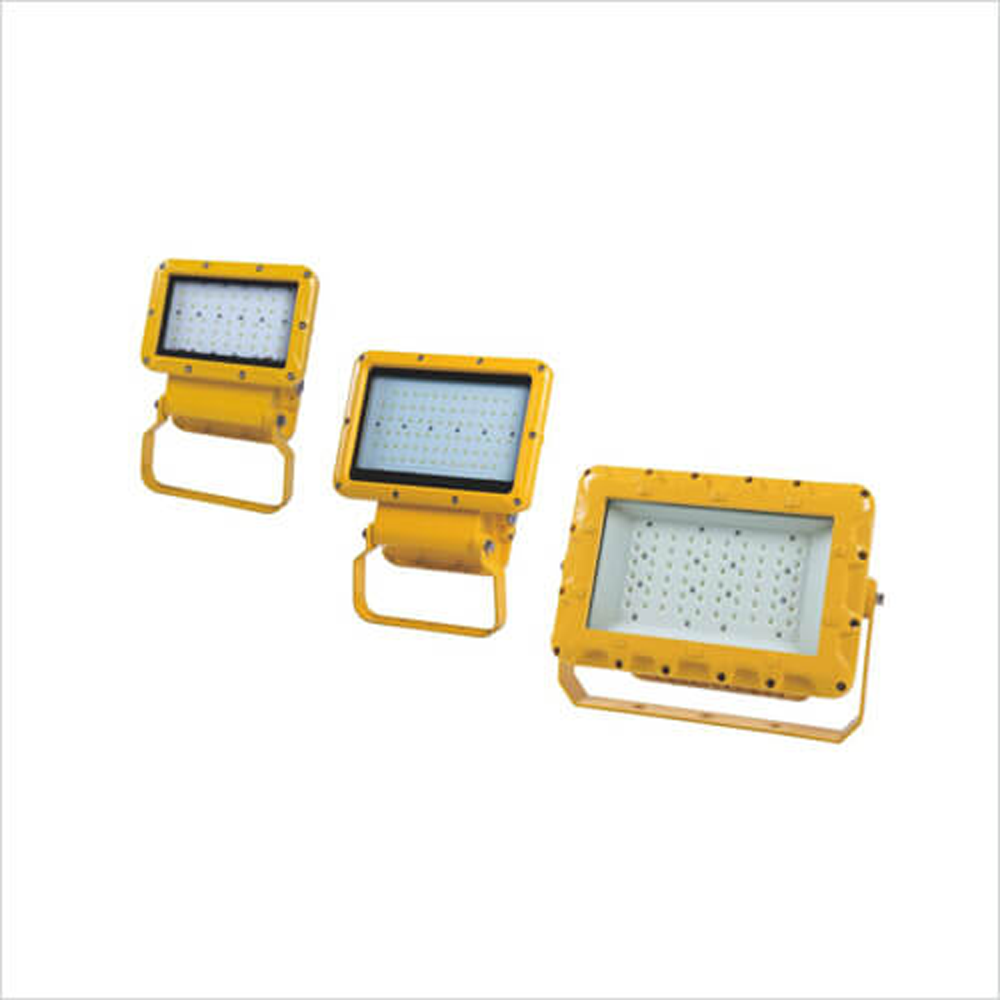

• Three enclosure types:90, 160, 240
• Applicable lamp and power (max.240W)
LED: 60W, 90W, 120W, 160W, 200W, 240W
• Isolated LED lamp compartment, CC-CV (constant currentconstant-voltage) power controller compartment and terminal compartment; Wind-convection heat dissipation structure.
• Standard product is of floodlight effect, lens of 60°and 90° can be provided on request to realize spotlight effect
• Low-maintenance due to long service life is up to 100,000 operating hours.

Type/
Ordering code		 Lamp
power(W)		 Weight
(kg)		 Type/
Ordering code		 Lamp
power(W)		 Weight
(kg)		 Type/
Ordering code		 Lamp
power(W)		 Weight
(kg)
BAT86-90-60G 60 6.7 BAT86-90-60Y 60 8.5 BAT86-90-60S 60 7.55
BAT86-90-90G 90 6.7 BAT86-90-90Y 90 8.5 BAT86-90-90S 90 7.55
BAT86-160-120G 120 13 BAT86-160-120Y 120 14.8 BAT86-160-120S 120 13.85
BAT86-160-160G 160 13 BAT86-160-160Y 160 14.8 BAT86-160-160S 160 13.85
BAT86-240-200G 200 28 BAT86-240-200Y 200 29.5
BAT86-240-240G 240 28 BAT86-240-240Y 240 29.5
Note:1.The product is supplied according to “Type/Ordering code”in the table with mounting accessories.
2.The light fitings are supplied without lens.Lighting distribution is of floodlight.Lens of 60°and 90°can be provided on
request.Please specify whenordering



Technical parameters
Conformity to standards IEC60079, EN60079, GB3836, GB12476, CCS standard
Ambient temperature -60℃~+40/60℃
Light sourc LED moudule
Degree of protection IP66
Corrosion-proof WF2
Cable entry 2×M25×1.5, suitable for Φ12.5~Φ20.5mm cable
Terminal 3×1.5~4mm²
