CAMRAM 350 Packers and Top Seals for U BOP’s(13-5/8″to21-1/4″）
Description

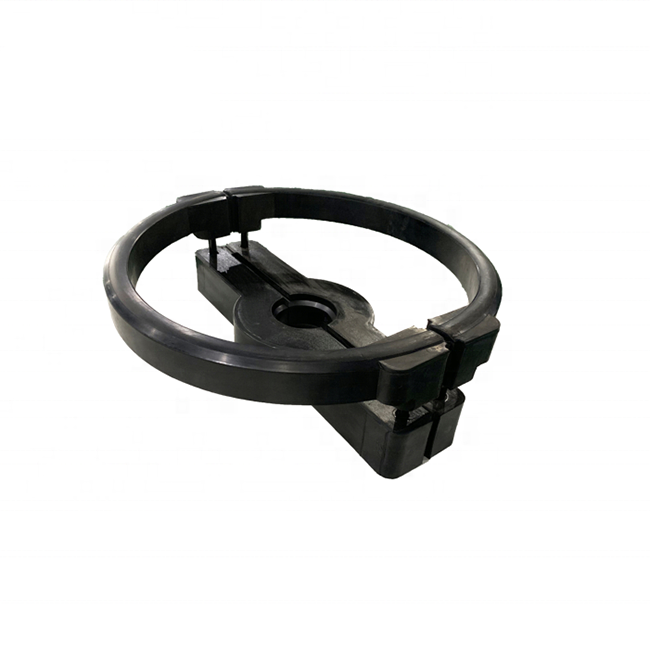

CAMRAM 350 Packers and Top Seals for U BOP’s
CAMRAM 350 U BOP pipe ram packers and top seals are available for applications which require high temperature capabilities and
greater H2S resistance than standard CAMRAM packers and top seals.
CAMRAM 350 is available in all UBOP sizes in which standard CAMRAM packers and top seals are offered.
CAMRAM packers in drill pipe sizes feature the Cameron patented lipped plate design. All packers also have chamfered ends on the top and bottom reinforcing plates to prevent ram bore scoring and reduce elastomer extrusion.
All packers and top seals are molded using CAMLASTTM high performance elastomer from Cameron Elastomer Technology.
| U BOP CAMRAM 350 Part Numbers | |||
|---|---|---|---|
| 13-5/8″ 15,000 psi Top Seal 644709-01-00-01 Packer |
16-3/4″ 3,000-10,000 psi Top Seal 644711-01 Packer |
18-3/4″ 10,000 psi Top Seal 644713-01-00-01 Packer |
20-3/4″ 3,000 psi 21-1/4″ 2000 psi Top Seal 2164113-01 Packer |
| 644708-01-00-01 | 644710-01 | 644712-01 | 2164105-01 |
| / | / | / | / |
| / | 644710-02 | / | / |
| 644708-02-00-01 | / | / | / |
| 644708-03-00-01 | 644710-03 | 644712-02 | 2164105-02 |
| 644708-04-00-01 | 644710-04 | 644712-03 | 2164105-03 |
| 644708-05-00-01 | 644710-05 | 644712-04-00-01 | 2164105-04 |
| 644708-07-00-01 | 644710-06 | 644712-06-00-01 | 2164105-05 |
| 644708-08-00-01 | 644710-07 | 644712-07-00-01 | 2164105-06 |
| 644708-11-00-01 | 644710-09 | 644712-10 | 2164105-07 |
| 644708-12-00-01 | 644710-10 | 644712-11 | 2164105-08 |
| / | / | / | / |
| 644708-24-00-01 | 644710-21 | 644712-21-00-01 | 2164105-09 |
| 644708-13-00-01 | 644710-11 | 644712-12 | / |
| 644708-14-00-01 | 644710-12 | 644712-13 | 2164105-10 |
| 644708-15-00-01 | 644710-13 | 644712-14-00-01 | 2164105-11 |
| / | / | / | / |
| 644708-16-00-01 | 644710-14 | 644712-15 | 2164105-12 |
| 644708-17-00-01 | / | / | / |
| 644708-18-00-01 | 644710-15 | 644712-16 | 2164105-13 |
| 644708-19-00-01 | 644710-16 | 644712-17 | / |
| 644708-20-00-01 | 644710-17 | 644712-18-00-01 | 2164105-14 |
| 644708-22-00-01 | / | / | / |
| / | / | / | |
| 644708-21-00-01 | 644710-18 | 644712-19 | 2164105-15 |
| / | 644710-19 | / | 2164105-16 |
| / | 644710-20 | 644712-20-00-01 | 2164105-17 |
