Description
API-6A Wellhead C22/C-29 Casing Spool
| Min. Order: | 1 Piece/Pieces |
|---|---|
| Trade Term: | FOB,CIF,EXW |
| Payment Terms: | L/C, T/T |
| Place of Origin: | Jiangsu, China (Mainland) |
| Means of Transport: | Ocean |
| Production Capacity: | 100 Pieces/Month |
| Packing: | Plywood |
Product Attribute
| Delivery Date: | 40 Days | Top Flange Size: | 11″, 13-5/8″ |
|---|---|---|---|
| Bottom Flange Size: | 11″, 13-5/8″, 16-3/4″, 20-3/4″, 21-1/4″ | Rated Working Pressure: | 2000 PSI – 15000 PSI |
| Material: | AISI4130 Integral Forged | Material Class: | AA, BB, CC, DD, EE, FF |
| Temp Class: | L, P, R, S, T, U, V | Product Specification Level: | PSL1, PSL2, PSL3, PSL3G |
| Performance Requirement: | PR1, PR2 | Standard Carried: | API Spec 6A, NACE-MR0175 |
| Application: | Wellhead Christmas Tree, Casing Head |
Product Description
Overview

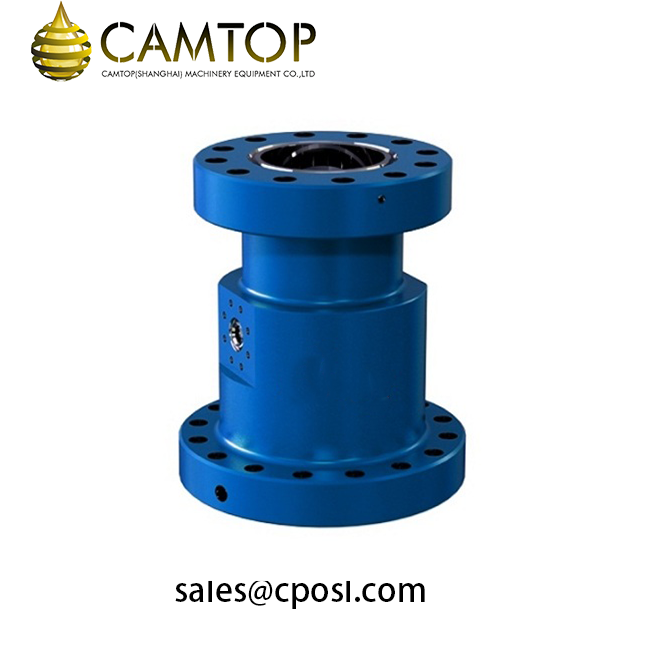

A Casing Spool is a very important component in controlling wellhead pressure. It is often flange ended on the top of the casing head and connected with the bottom of the tubing head to secure the upper end of a casing string, ultimately comprising a portion of the wellhead system. A casing spool has a straight bore bowl with 45°landing shoulder that prevents damages to sealing areas commonly caused by drilling tools. This also eliminates test plug and bowl protector wedging problems when pressure is applied. Camtop’s casing spools are normally furnished with threaded outlets and studded outlets and can also be flexibly designed according to clients’ specific requirements and actual working conditions. They can be used for both single completions and dual completions.

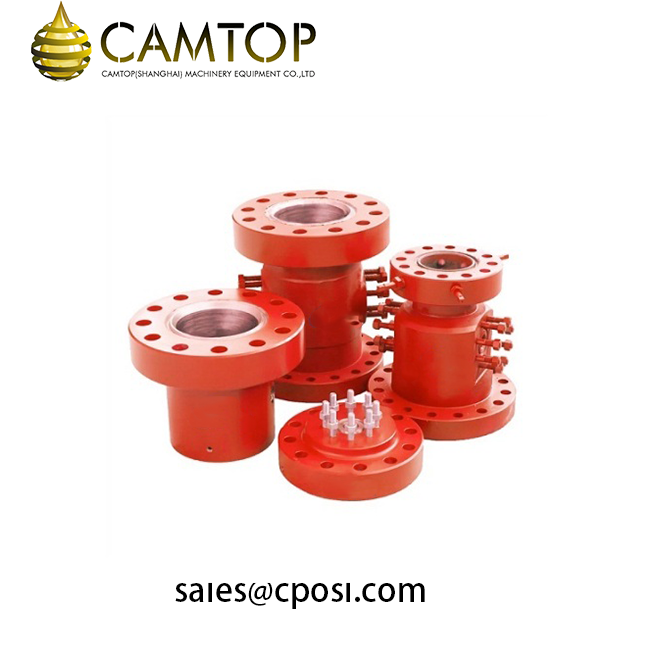

Casing spools produced by Camtop’s mainly comprises of CS-22 and CS-29 types, and this two models of casing spools are both provided with 45 degrees of main bearing shoulder. The depth of the bearing shoulder of the CS-29 casing head is bigger than that of CS-22, and is applicable to drilling deep well after being assembled with the CS-29 type casing hanger. Engineered to operate under heavy loads and high pressure, our casing spools work well with various slip type and mandrel type casing hangers for your well head completion.
Detailed Specifications:
Product Name: Wellhead Casing Spool
Outlets: Line pipe, Flanged (Studded), Extended Flanged
Pressure Rating: 2000PSI, 3000PSI, 5000 PSI, 10000PSI, 15000PSI
Material Class: AA, BB, CC, DD, EE, FF
Main Material: AISI4130 Integral Forged
Temperature Class: L-U
Working Medium: Petroleum, Natural Gas, Mud, Gas containing H2S and CO2
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL3G
Standards: API Spec 6A, NACE MR0175, CE, ISO9001 etc
Appliaction: Petroleum Drilling & Production, Wellhead Assembly & Christmas Tree
Traceability: Camtop’s casing spools are supplied with full traceability documentation for each component.
Origin: China
Features/Functions/Others:
Attaches above the Casing Head and seals off the next casing string
Supports the blowout preventer while drilling
Allows for testing of the blowout preventer
Housing for casing hanger and seal assembly
Side outlets for annular access
Secured by locking screws
Available in various sizes.

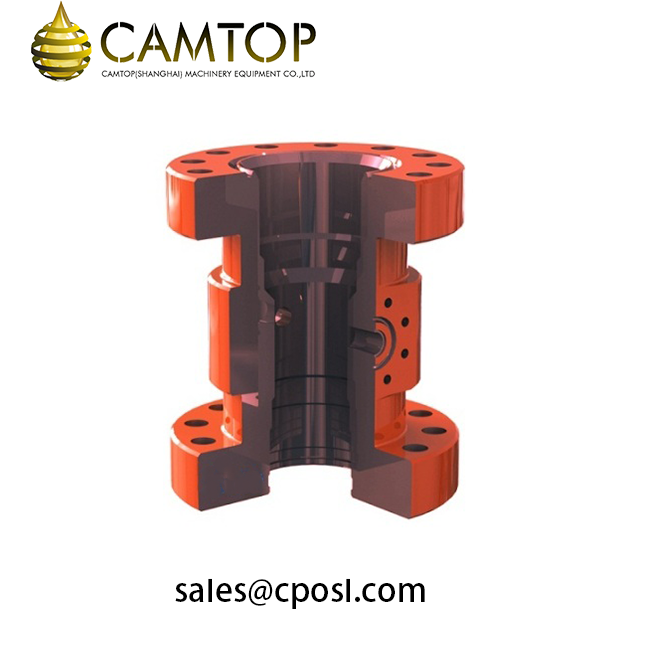

Versatile straight-bore design,uses a 45° landing shoulder
Allows use of lock screws to retain hanger
Has a additional lock screws for Bowl protecion
Accepts a wide variety of slip type and mandrel type casing hangers
On-Time delivery and competitively priced
