Description

Constant Speed Frequency Blender Model RC-9361

The Constant Speed Frequency Blender conforms to API Specification 13A and can be used to mix cement for field or lab testing.

Preset of Speeds:3000, 4000, 8000, 10, 000, 11,000 and 12,000 RPM

1 spindle ,Volume:500ml ; Time range 0~99 minutes

The Constant Speed Frequency Blender conforms to API Specification 13A and can be used to mix cement for field or lab testing.

Routine laboratory mixing is easily handled with the Mixer. These mixers are perfect for formulating drilling fluids in the lab, and for pilot testing and mud additive analysis.

Special attention to mixing procedures and reagent preparation is essential in any qualitative fluid analysis. Factors such as low or high shear, initial mix concentrations, and an ability to change mixing speeds are important considerations when choosing a laboratory or field mixer.

The Mixer has preset rotating speeds of 3000, 4000, 8000, 10, 000, 11,000 and 12,000 rpm/min.

Constant Speed Frequency Blender Specifications
Part No. Model Description &Technical Parameters G.W.
152-01 RC-9361 Preset of Speeds:3000, 4000, 8000, 10, 000, 11,000 and 12,000 RPM
1 spindle ,Volume:500ml .
Variable Speeds Range: 0-12,000 RPM/Min.
220V±5%AC; 50Hz; Power: 280W;
Time range 0~99 minutes		 24kg

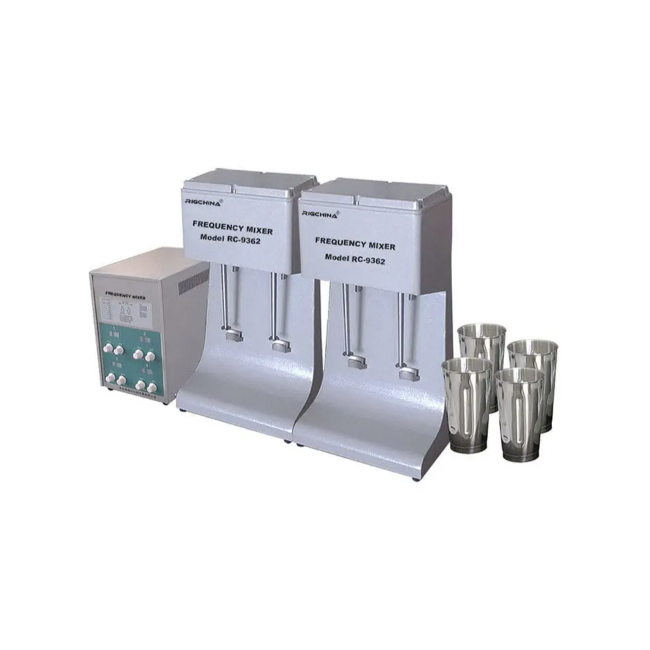

152-02 RC-9362 Preset of Speeds:3000, 4000, 8000, 10, 000, 11,000 and 12,000 RPM
2 spindle , Volume:500ml×2 ;
Variable Speeds Range: 0-12,000 RPM/Min.
220V±5%AC; 50Hz; Power: 560W;
Time range 0~99 minutes		 45kg
152-4 RC-9364 Preset of Speeds:3000, 4000, 8000, 10, 000, 11,000 and 12,000 RPM
4 spindle ,Volume:500ml×4 .
Variable Speeds Range: 0-12,000 RPM/Min.
220V±5%AC; 50Hz; Power: 1120W;
Time range 0~99 minutes		 98kg
