Description
desander

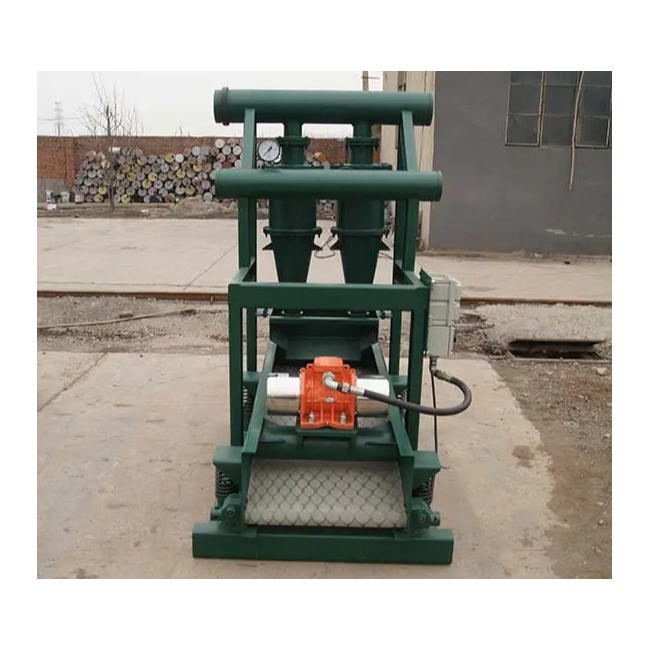

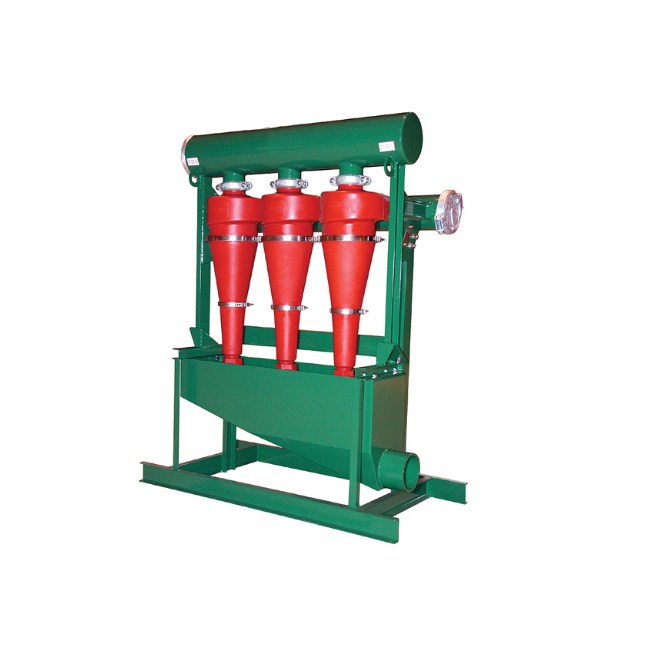

The desander with underflow shaker is also called mini desander cleaner which is applicable for both weighted and unweighted drilling mud, while traditional desander no underflow vibrating screen only for unweighted drilling fluids. And comparing with large size mud cleaner, the Mini Desander is cost-effective. For compact mud system used in HDD, CBM, water well drilling and mining project, Mini desander is an Ideal choice.
- Desander Options with shaker and without shaker for flexible application.
- Desander Cyclone PU material with better Abrasion resistance.
- No under shaker design structure compact and assembly flexible.
- Mini desander cleaner with shaker for both weighted / unweighted mud in various drilling.
Model | Z200-D528*2 | Z528-D1056 | Z528-D1584 |
---|---|---|---|
Capacity | 120/240m3/h | 240m3/h (1056GPM) | 360m3/h(1584GPM) |
Desander Size | 10 Inch | ||
Desander Qty | 1/2pcs | 2pcs | 3pcs |
Working Pressure | 0.25~0.4Mpa | ||
Feeding Size | 6 Inch | ||
Output Size | 8 Inch | ||
Bottom Shale Shaker Specs | |||
Shaker Model | Z200 | Z528 | |
Vibration Mode | Linear Motion | ||
Vibration Motor | 2×0.75Kw | 2×1.72Kw | |
Angle Adjust Motor | N/A | 0.55Kw | |
Screen Qty | 2pcs | 3pcs | |
Screen Size: L×W | 750×900mm | 700×1250mm |
