Description

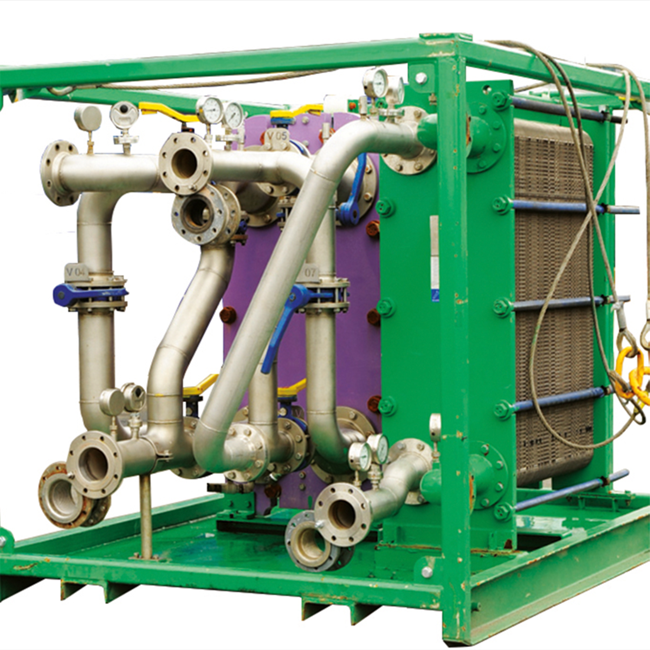

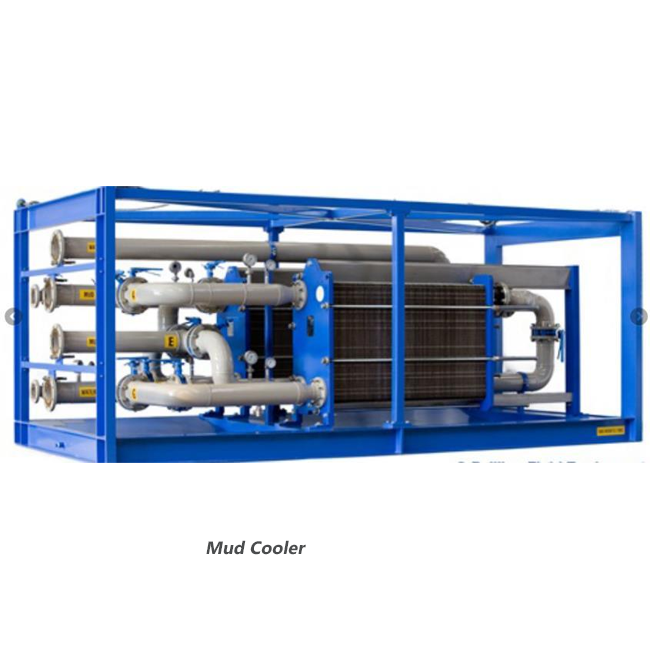

Drill Mud Cooler

CAMTOP’s range of highly efficient mud coolers reduce potential health, safety and environmental risk factors and complications during the drilling process. Built on decades of application experience, these dedicated modular heat exchangers reduce thermal stresses and provide better temperature control for mud processing and downhole tool accuracy, especially when drilling at high temperatures and pressures.

echnical Specifications

Overall Dimensions
Length: 4550 mm
Width: 2000 mm
Height: 2000 mm
Weight: 6000 kg

Cooler Design Specifications
Flowrate: Up to 2500 ltr/min
Density of mud: Up to 2.2 kg/ltr
Inlet Temp: 75 °C
Outlet Temp: 60 °C
Capacity: 3000 kW
