Description

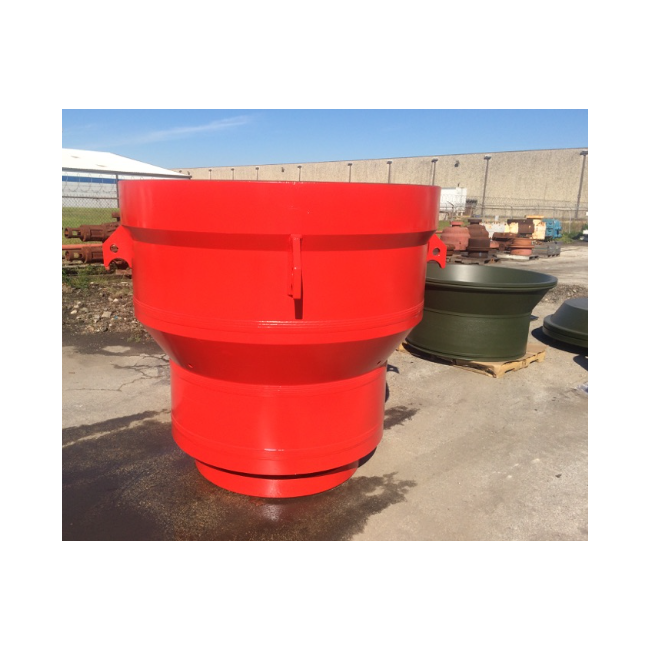

API 16A Drilling Diverter for Well Control
Diverter, 29-1/2″ 500 PSI NOV/T-3 (Hydril MSP copy), 30” 300 Series MSS (29-1/2” 500 psi) Flange Bottom (R-95) x 30” 300 Series MSS (29-1/2” 500 psi) Studded Top, Stainless Steel Lined Ring Grooves, H2S Trim
BOP is 100% interchangeable with Hydril Manufacture
Remanufactured by API 16A and ISO 9001 Licensed Facility
Furnished c/w New Surplus OEM Nitrile Rubber Packing Element and Seal Kit
Furnished c/w New OEM Seal Kit
Data Book for BOP to include:
API Licensing Certification for Repair Facility
Hardness Survey complying with NACE MR-0175 specifications
Dimensional Inspection Report
Magnetic Particle Inspection Reports
Dye Penetrant Inspection of Ring Grooves
Drift Test, Welding Procedures
Stress Relief Certification (as applicable)
Certificates of Conformance for New Rubber Seals & Packing Element
Certificate of Test and Hydrostatic (Well Bore & Shell) and Hydraulic (Open and Close) Test Charts
Operations Manual and Parts List
echnical Specifications of Drilling Diverter:
| Model | Main bore mm(in) |
Working pressure MPa(psi) |
Operating pressureMPa | Connection type | Dimension mm | weight kg | Recommended bop type | ||
|---|---|---|---|---|---|---|---|---|---|
| Top | Bottom | Outside diameter | Height | ||||||
| FFZ75-3.5 | 749.3(29 1/2) | 3.5(500) | 8.4~10.5 | studded | fanged | 1910 | 1798 | 12607 | H06.00C |
| FFZ76-07 | 762 (30) | 7(1000) | 1805 | 1700 | 13866 | H31.00 | |||
| 29 1/2″-500 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95 | |||||||||
| 30″-1000 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95 | |||||||||
