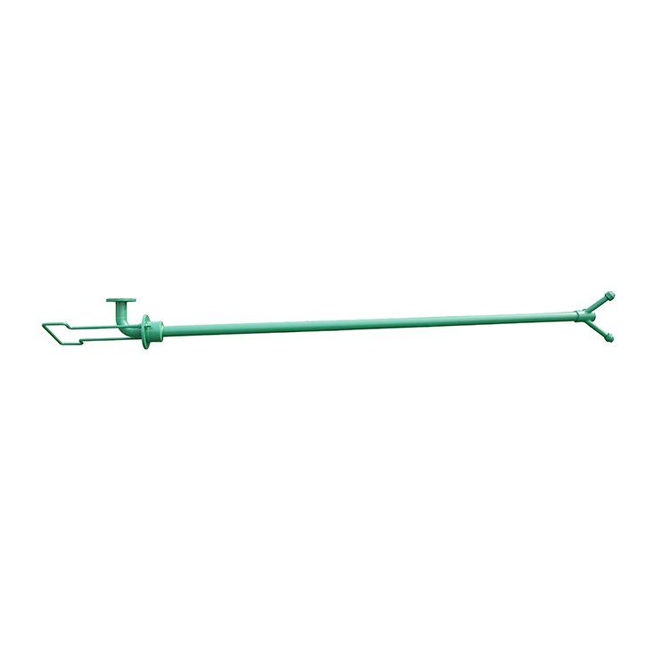

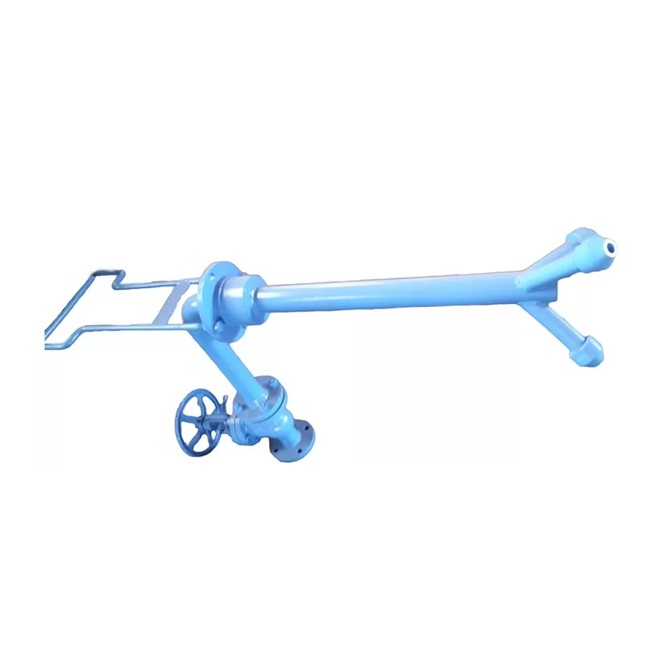

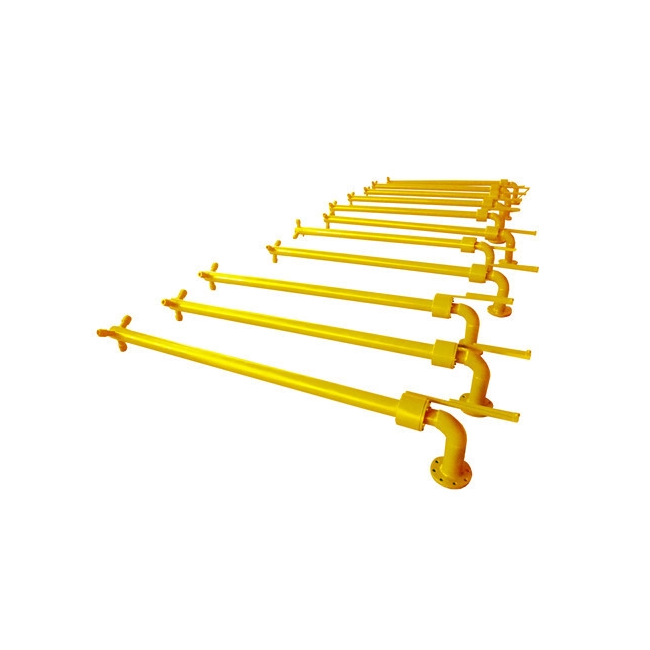

Drilling Mud Gun
Mud Gun is designed and manufactured for the different drilling mud solids control system. The mud gun are classified into three kinds: low pressure; medium pressure; high pressure, mainly to match with centrifugal pump,or mud pump, or the shear pump. It is to clean the wall tube and to prevent the mud sediment in the mud tank.
| Model | NJQ503 | NJQ501 | NJQ503 | NJQ801 |
|---|---|---|---|---|
| Diameter | 2”(φ50) | 2”(φ50) | 3”(φ80) | 3”(φ80) |
| Valve ID | 50mm | 50mm | 80mm | 80mm |
| Interface Size | 2” | 2” | 3” | 3” |
| Pressure | 1.6/3.2/6.4Mpa | 1.6/3.2/6.4Mpa | 1.6/3.2/6.4Mpa | 1.6/3.2/6.4Mpa |
| Nozzle number | 3 | 1 | 3 | 1 |
| Rotation angle | 120°/0 | 120° | 120°/0 | 120° |
| Remark | rotate/non-rotate | rotate | rotate/non-rotate | rotate |
