Description

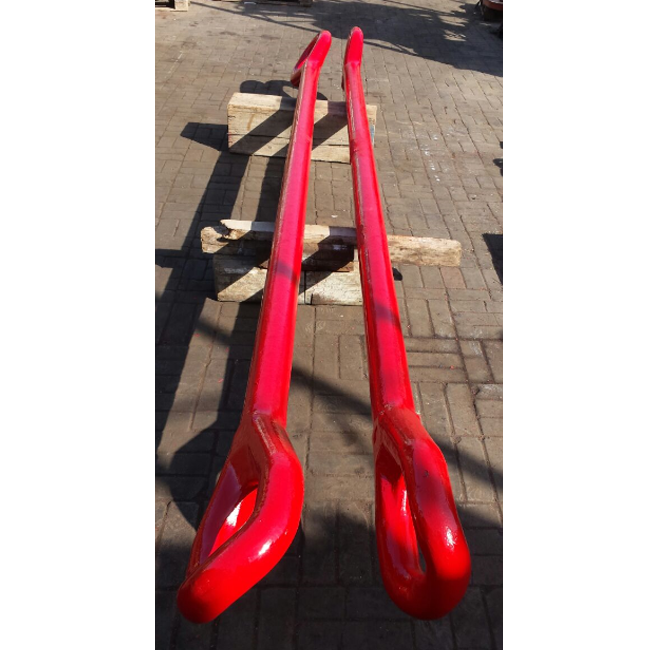

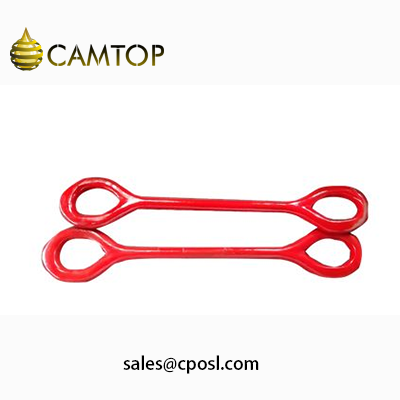

Elevator links

Elevator Links (Bails) need to perform daily under high loads in harsh environments. Forged in one piece from a special high grade alloy steel, our Elevator Links get their maximum tensile strength.

Ranging from 350 – 1500 short tons, our Elevator Links connect Elevators to all standard API top drive systems.

Technical Data
Capacity 350 – 1500 tons
Range Length from 48’’ to 720’’
Certification API 8C, CE & ATEX marked

Features
Weldless design
High grade steel for highest strength
Suitable for all standard API top drives
API 8C certified

Partial specifications data for elevator links are provided as follows:

150ton 250ton 350ton 500ton 750ton
1¾”x48″
1¾”x60″ 2¼”x60″ 2¾”x60″
1¾”x72″ 2¼”x72″ 2¾”x72″
1¾”x84″ 2¼”x84″ 2¾”x84″
1¾”x96″ 2¼”x96″ 2¾”x96″
1¾”x108″ 2¼”x108″ 2¾”x108″ 4¾”x108″
1¾”x120″ 2¼”x120″ 2¾”x120″ 4¾”x120″
1¾”x132″ 2¼”x132″ 2¾”x132″ 4¾”x132″
2¼”x144″ 2¾”x144″ 3½”x144″ 4¾”x144″
2¼”x150″ 2¾”x150″ 3½”x150″
2¼”x168″ 2¾”x168″ 3½”x168″
2¼”x180″ 2¾”x180″ 3½”x180″
2¼”x192″ 2¾”x192″ 3½”x192″
2¾”x200″ 3½”x200″
2¾”x216″ 3½”x216″
2¾”x240″ 3½”x240″
