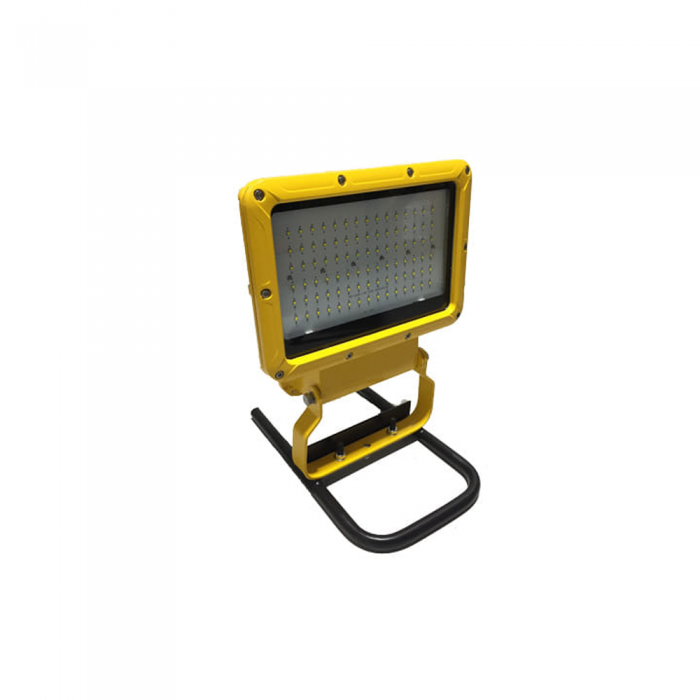

Explosion-proof LED Floodlightings Model BAT86

Explosion protection to
– IEC
– CENELEC
– NEC
Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I, Zone 1 and Zone 2
Class I, Division 1, Groups B, C, D
Three enclosure types: 90, 160, 240
Applicable lamp and power (max.240W)
LED: 60W, 90W, 120W, 160W, 200W, 240W
Isolated LED lamp compartment, CC-CV (constant current-constant voltage) power controller compartment and terminal compartment; Wind-convection heat dissipation structure.
Standard product is a floodlight; spotlight lenses of 40° or 60° can be provided on request.
Low maintenance due to a service life of up to 100,000 operating hours.

Type/ Ordering code	Lamp power(W)	Weight (kg)	Type/ Ordering code	Lamp power(W)	Weight (kg)	Type/ Ordering code	Lamp power(W)	Weight (kg)
BAT86-90-60G	60	6.7	BAT86-90-60Y	60	8.5	BAT86-90-60S	60	7.55
BAT86-90-90G	90	6.7	BAT86-90-90Y	90	8.5	BAT86-90-90S	90	7.55
BAT86-160-120G	120	13	BAT86-160-120Y	120	14.8	BAT86-160-120S	120	13.85
BAT86-160-160G	160	13	BAT86-160-160Y	160	14.8	BAT86-160-160S	160	13.85
BAT86-240-200G	200	28	BAT86-240-200Y	200	29.5
BAT86-240-240G	240	28	BAT86-240-240Y	240	29.5
Note:1.The product is supplied according to “Type/Ordering code”in the table with mounting accessories. 2.The light fitings are supplied without lens.Lighting distribution is of floodlight.Lens of 60°and 90°can be provided on request.Please specify whenordering
