Short Description:
-Increase service life by 30% on average
-The storage time of the packing elements can be increased to 5 years, under the shading conditions, the temperature and humidity should be controllable.
-Fully interchangeable with foreign and domestic BOP brands
– Third-party testing can be done during the production process and before leaving the factory according to customer requirements. The third-party inspection company could be BV, SGS, CSS, etc.

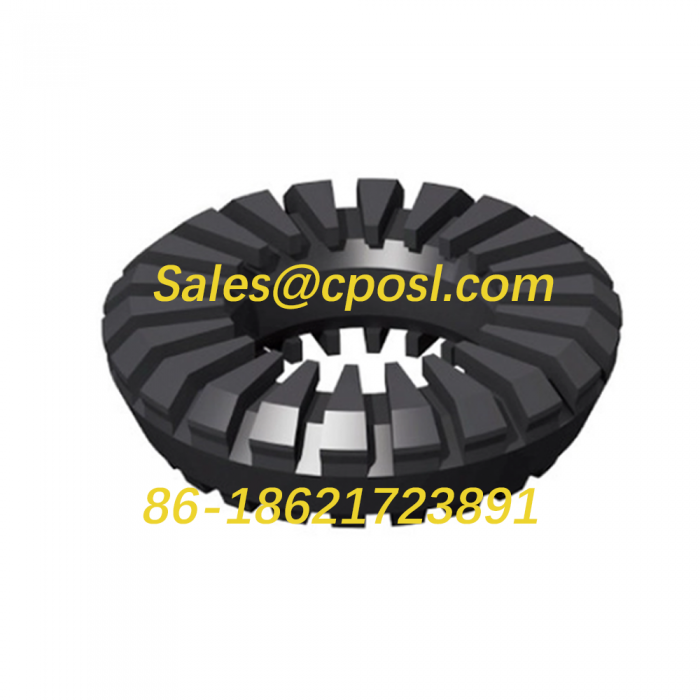

The tapered BOP packing element was first developed by Hydril, an American Company and it is used for annular blowout preventers of Hydril type.
The tapered packing element has unique advantages in large diameter and high-pressure working conditions. At present, it is also one of the most widely used blowout-preventer packing elements.
Our OEM tapered packing elements use foreign formulas and technology, which have significant advantages in service life and product reliability.
Our OEM Tapered BOP Packing Elements elevate performance standards by incorporating cutting-edge foreign technologies and formulations. This innovation enhances both product longevity and dependability, providing a superior solution for challenging drilling operations.
We offer packing elements for the following annular BOPs in aftermarket (non-OEM) and we can also quote from the OEM:
Cameron Style D & DL
Shaffer style Spherical (SBOP)
Hydril style GK, MSP, GL (OEM), GX (OEM)
Sizes range from 7-1/16″ – 30″. Material available are nitrile (NBR) and natural rubber (NR).
| Dimensions | |||||
|---|---|---|---|---|---|
| BOP Size | Work Pressure | BOP Type | Matched BOP Manufacturer | ||
| Foreign | Domestic | ||||
| 9″ | 5,000 PSI | GK | Hydril | All | |
| 11″ | 10000 PSI | GX | Hydri | ||
| 13 5/8″ | 5,000 PSI | GK/GX | Hydril | ||
| 10.000 PSI | GX | Hydril | |||
| 16 3/4″ | 5.000 PSI | GK | Hydril | ||
| 21 1/4″ | 2,000 PSI | GK | Hydril | ||
| 29 1/2″ | 500 PSI | MSP | Hydri | ||
| 18 3/4″ | 10000 | GX | |||
| Seal Kit | |||||
| BOP Size | Work Pressure | BOP Type | Matched BOP Manufacturer | ||
| Foreign | Domestic | ||||
| 11” | 10000 PSI/15000 PSI | Hydril | All | ||
| 13 5/8″ | 5,000 PSI | GK | Hydri | ||
| 13 5/8″ | 5,000 PSI | GK | Hydril | ||
| 13 5/8″ | 10000 PSI | Hydril | |||
| 16 3/4″ | 5,000 PSI | Hydril | |||
| 21 1/4″ | 2,000 PSI | Hydril | |||
| 29 1/2″ | 500 PSI | Hydri | |||
| 18 3/4″ | 10000 | GK | |||
