Description

Hydraulic Cylinder(2″YG-00)

YG type engineering hydraulic cylinder is the actuator of reciprocating motion in the hydraulic system.The hydraulic energy can be converted into mechanical energy through the hydraulic cylinder, which can realize the automatic control of each action specified in the main engine.Mainly used in engineering machinery, lifting, transportation machinery and engineering vehicle hydraulic transmission system.

This series hydraulic cylinder has the characteristics of compact structure, reliable performance, simple installation, convenient maintenance, buffer device and various installation methods.

Working principle:

YG series double-acting single-rod piston hydraulic cylinder USES oil pressure to push the piston rod forward and backward in both directions, thus driving other working parts to and fro in a straight line.

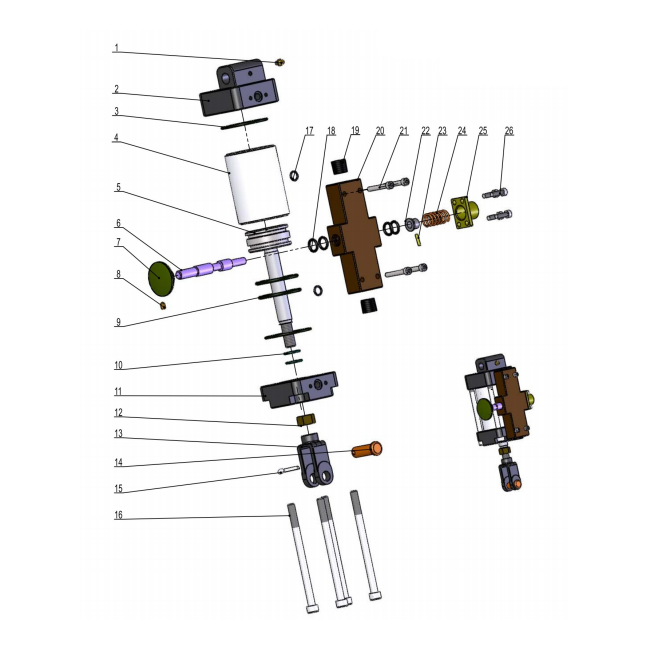

2”液缸 Hydraulic Cylinder(2″YG-00)
In repair kit维修包 (Item)序号 图号(Part No.) 名称(Description) 数量Qty
1 GB273-66 油杯 Cott Pin 1
2 2″YG-03 下盖 End Cap 1
▲ 3 GBJ3452.1-1992 50X2.65 O形密封圈O-Ring 2
4 2″YG-01 缸筒 Barrel 1
5 2″YG-04 活塞 Piston 1
6 2″YG-06 阀杆 Valve Stem 1
7 3/8″ANF-08 按钮 Botton 1
8 GB/T 78-2000 内六角锥端紧定螺钉Screw 1
▲ 9 GB/T3452.1-1992 43.7X3.55 O形密封圈O-Ring 2
▲ 10 GB1235-76 20X2.4 O形密封圈O-Ring 2
11 2″YG-02 上盖 Head, Rod End 1
12 GB/T470-2000 51-76 M12 六角螺母 Nut 1
13 3″QG-00-06 连接叉 Clevis 1
14 3″QG-00-07 销轴 Pin 1
15 GB/T91-2000 4X20 开口销 Cotter Pin 1
16 GB/T70.1-2000M8X120 内六角圆柱头螺栓 Screw 4
▲ 17 GB1235-76 12X1.9 O形密封圈O-Ring 2
▲ 18 GB1235-76 16X2.4 O形密封圈O-Ring 4
19 GB/T 14626 ZG3/8″螺塞 Blank Plug 2
20 2″YG-05 阀体 Valve Body 1
21 GB/T 70.1-2000 M5X35 内六角圆柱头螺栓 Screw 4
22 3/8”ANF-03 支承座 Adjustment Seat 1
23 GB/T119.2-2000 5X14 圆柱销 Pin 1
24 3/8”ANF-02 弹簧 Spring 1
25 2″YG-07 阀盖 Valve Cap 1
26 GB/T 70.1-2000 M5X16 内六角圆柱头螺栓 Screw 4
