Description

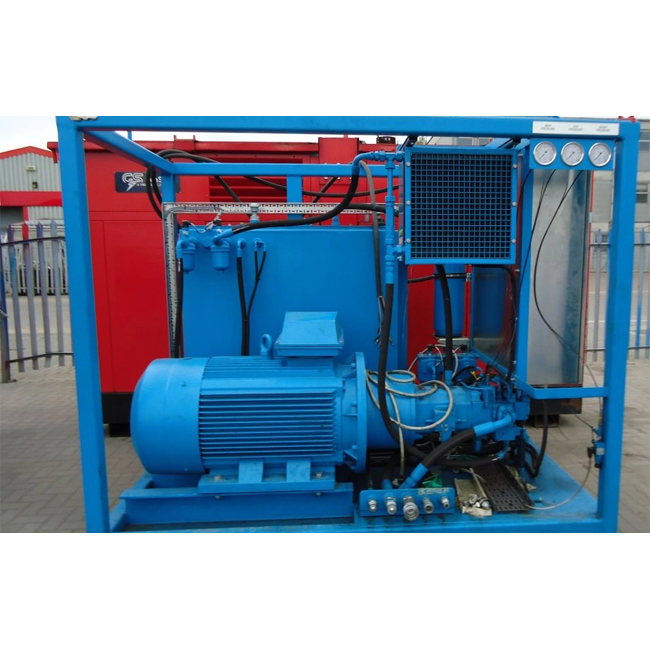

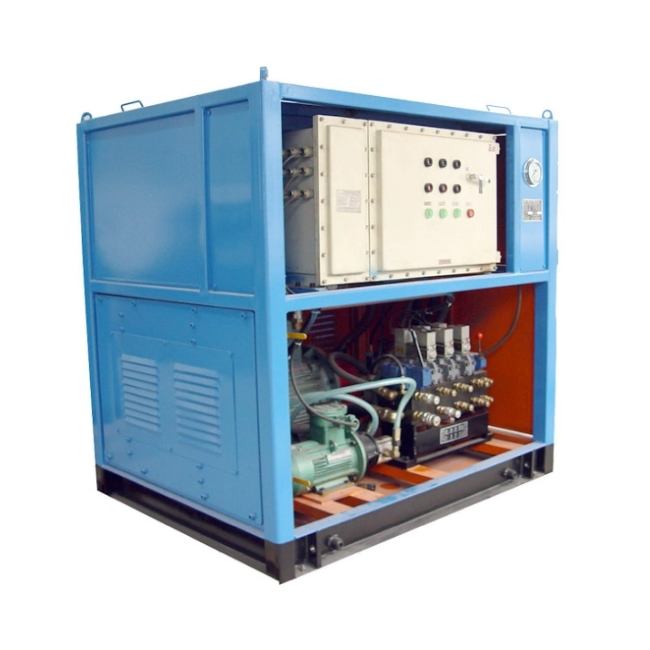

Hydraulic Power Unit



We offer a wide variety of hydraulic power units (HPUs). These are able to be configured for any set of  requirements. We are able to offer both open and closed loop, with or without auxiliary circuits and boost systems. They can range from 11kW up to 800kW.

  • Can be used in onshore and offshore drilling operation, desert and continuous working situation.
  • Wide adjustment range, easy operation, high generality.
  • Air or water cooled.
  • Electric driver and diesel drive.
Model YZC-120II YZC-120II-2 YZC-60/21M YZCF-120L
Rated flow L/min 120 120 50 120
gpm 31.7 31.7 13.2 31.7
Rated pressure MPa 16.6 18 21 17.5
psi 2400 2610 3050 2540
Max.pressure MPa 20 20 21 20
psi 2900 2900 3050 2900
Simp volume L 600 600 190 760
gal 158.5 158.5 50 200
Diesel engine power kw 60 70 45 70
hp 80 93.3 60 93.3
Diesel engine speed rpm 1500 1800 1500 1800
Diesel engine start mode
mode Electric starting Air starting Electric starting Electric starting
Diesel tank volume L 130 230 105 120
gal 34.2 60.5 28 31.7
Radiation area m2 – – – 40
ft2 – – – 430.6
Size mm 2150×1300×1650 2450×1300×1725 1700×1300×1490 2450×1400×1785
in 85×51×65 97×51×68 67×51×59 97×55×70
Weight kg 2450 2450 1450 1800
lb 2866 2866 3200 3968
