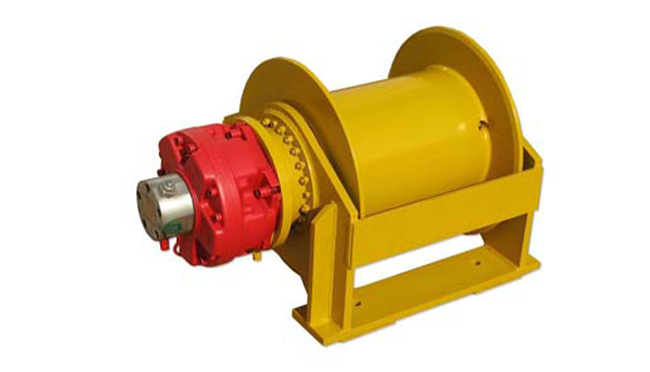

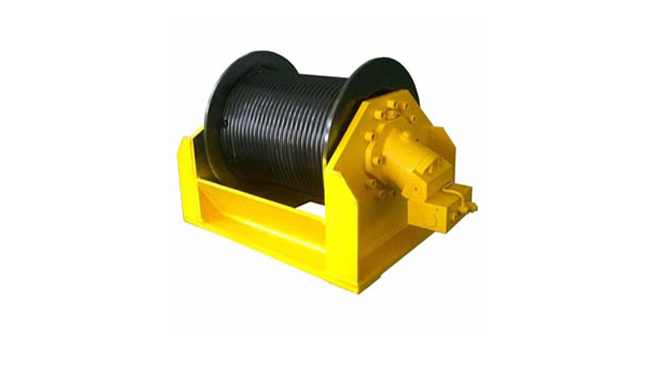

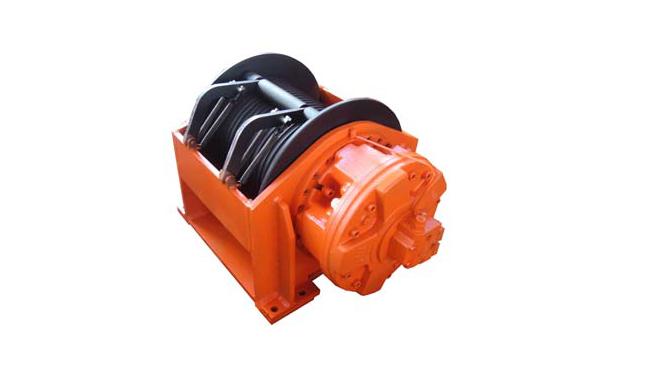

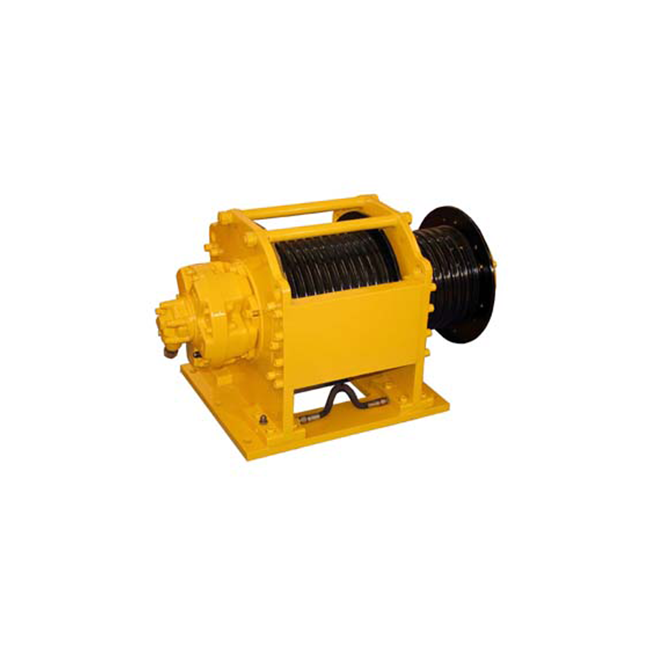

Hydraulic Winch
This hydraulic winch is a lifting equipment driven and braked by hydraulic. It has the advantages of compact structure, light weight, convenient operation and stable lifting. It is used to lift heavy objects in mines, ports and building engineering. Mainly consist of hydraulic motor, control valve and brake body.
Produce and design according API 7K standard.
Exploration proof than air winch.
Small dimension, lower noise.
High strength steel body and parts, longer service time.
| Model | YJ3/110 | YJ5/100 | YJ16/60 | YJ16/100 | |
|---|---|---|---|---|---|
| Flow Rating | L/min | 120 | |||
| gpm | 31.7 | ||||
| Pressure rating | MPa | 16.6 | |||
| psi | 2400 | ||||
| Max. Pull | kN | 30 | 50 | 160 | 160 |
| US ton | 3.3 | 5.5 | 17.6 | ||
| Max. Line Speed | m/min | 23 | 11 | 5.8 | |
| ft/min | 73 | 36 | 19 | ||
| Wire rope Dia. | mm | 12.7 | 20.5 | 28 | |
| in | 1/2 | 3/4 | 13/32 | ||
| Rope Storage | M | 110 | 100 | 60 | 110 |
| ft | 360 | 328 | 197 | 328 | |
