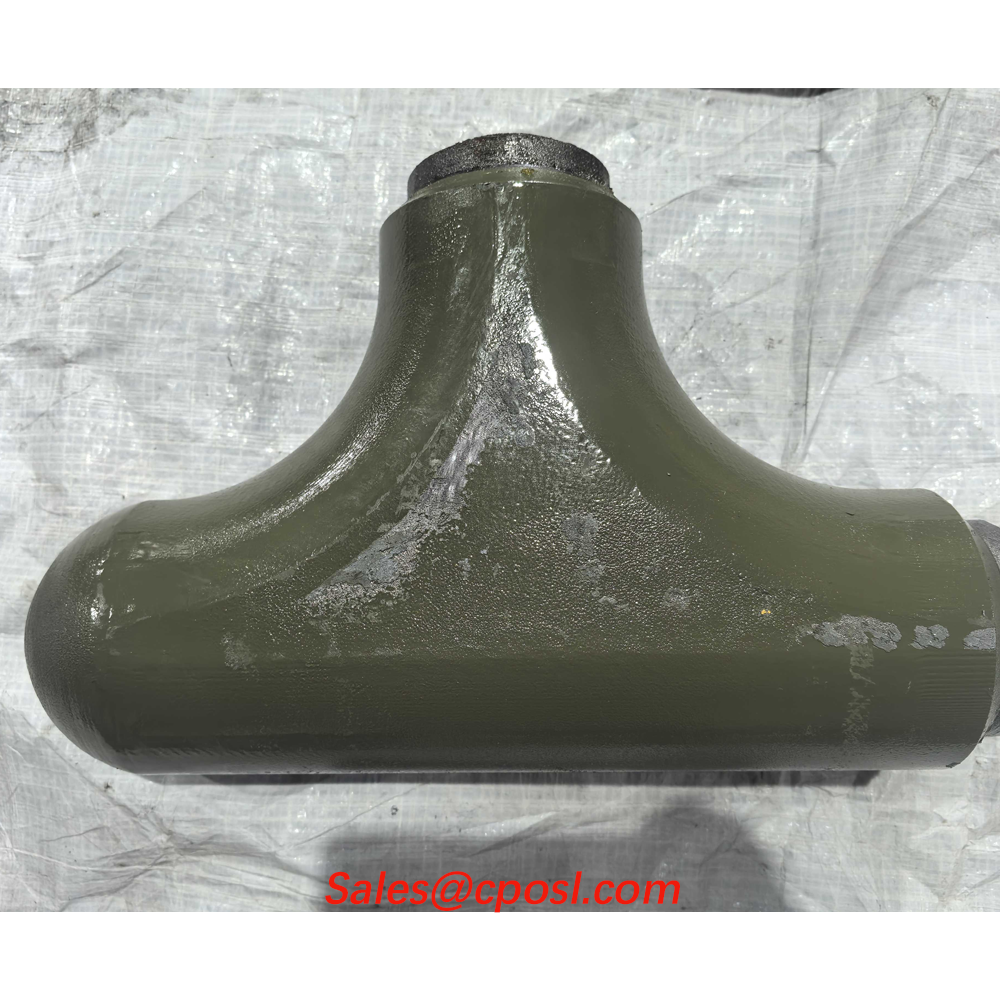

Long Sweep Full Flow Equal Tee
Camtop manufacture AISI 4130 Long Sweep Tees, Straight Tees, Long Sweep Full Flow Tees and Long Sweep Tees with Integral Bull Plugs for high pressure applications like sour services, offshore drilling, choke and kill manifold packages and drilling rig projects.
AISI 4130 Long Sweep Tee features:
Elimination of post-weld heat treatment requirements that can restrict the material’s potential strength
Uninterrupted bores to minimise pressure reduction and turbulence
Full material tractability
AISI 4130 tees are pressure tested and certified by the appropriate industry body as standard
| NB: Long Sweep Tee | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 2″ XXS | 13 | 8 | 8 | 1.5 | 2.37 | 4.5 |
| 3″ XXS | 13 | 8 | 8 | 2.3 | 3.5 | 4.5 |
| 4″ XXS | 16 | 11 | 11 | 3.15 | 4.5 | 5.56 |
| 5″ XXS | 19 | 12 | 12 | 4.06 | 5.56 | 6.63 |
| 6″ XXS | 27 | 15 | 15 | 4.9 | 6.63 | 7.75 |
| 5.5″ OD x 3.0″ ID | 19 | 12 | 12 | 3.06 | 5.5 | 6.63 |
| 6.75 OD x 5.00″ ID | 27 | 15 | 15 | 5 | 6.75 | 7.75 |
