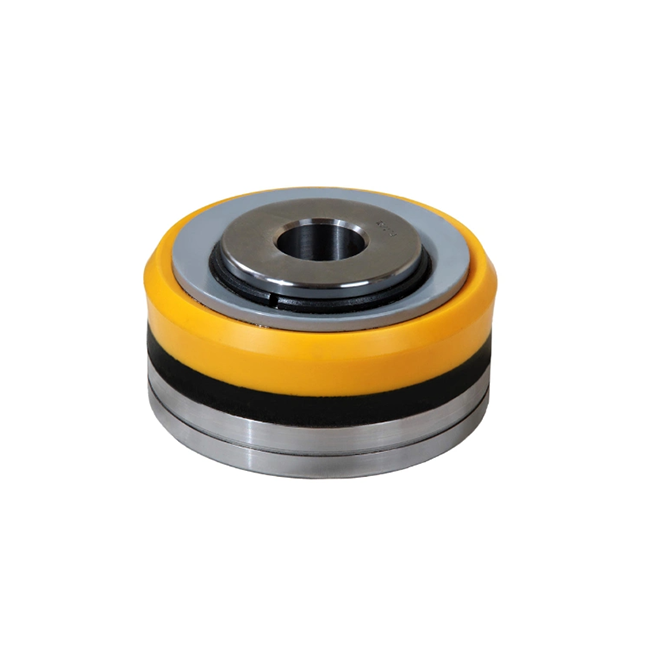

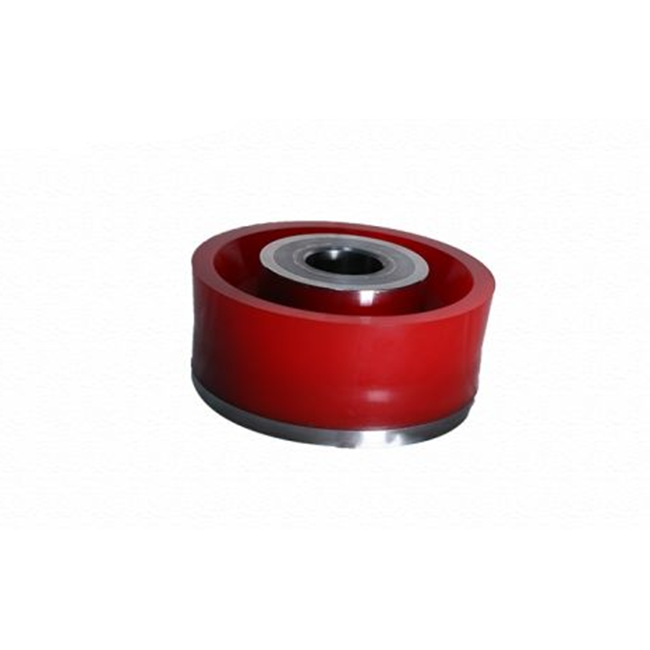

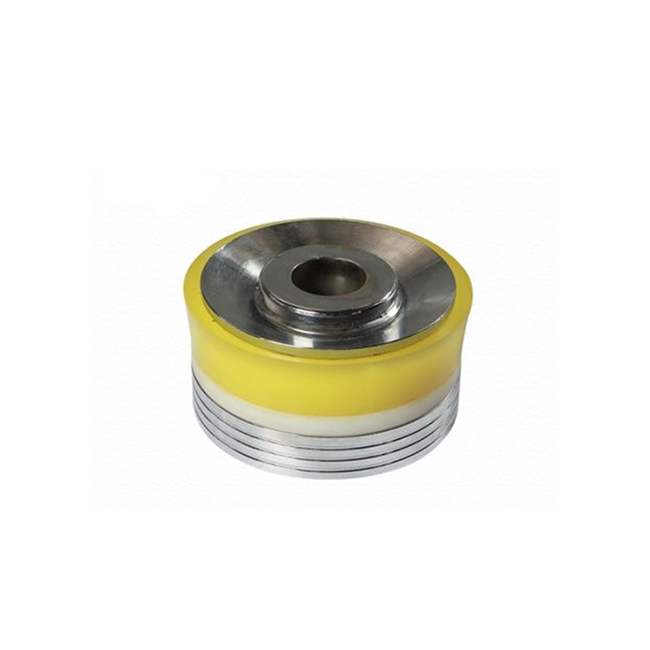

Mud Pump Piston

00% interchangeable with the most common brands of mud pumps.
High tensile strength.
Maximud operating temperature up to 250°F.
Extended service life.
Customized pistons according to drawings can be produced, too.
Mud Pump Piston assembly is the important spare parts and expendable parts of oil drilling mud pumps.

Mud Pump Pistons are made of high hardness alloy steel, and they are wear-resistant, anti-corrosive and anti-distortion after heat treatment. The seal of the piston can be made of polyurethane, polyether material and it can be also made of thiakol rubber.

Type: Bonded pistons, Replaceable pistons
Material of piston hub: forged by 45# steel or 40Cr with hardening and tempering
Material of piston cup: urethane NBR rubber
Surface treatment of piston hub: by phosphating and by Oxidizing
Size: 3 ~ 8 in
Brand: NATIONAL, GD, EMSCO, OILWELL, IDECO, DRILLMEC, WEATHERFORD, BOMCO, TSC, EWCO, AMERICAN BLOCK, EWECO, HONGHUA, LS NOV, WIRTH, RONGSHENG

Bomco F-500
Brewster B-1000-T B-1100-T B-1300-T B-1600-T FA-1600 FB-1600
HONGHUA HHF-500 HHF-800 HHF-1000 HHF-1300 HHF-1600 HHF-1600HL HHF-2200HL
Emsco F-350 F-500 F-650 F-800 F-1000 FD-1000 FB-1300
FB-1600 FA-1600 FA-1300 FC-1600 FD-1600 FC-2200D-300/500 D-175
D-225 D-375 D-500 D-550 DA-500 DB-500 D-700
DA-70 DB-700 DC-700 DA-850 DB-850 DC-850 D-1000
DB-1000 DC-1000 D-1000-A D-1350 D-1650
National 7-P-50 8-P-80 9-P-100 10-P-130 12-P-160 14-P-220 JWS-165-L
JWS-340 JWS-400 C-250 C-350 K-380 K-500-A G-700
K-700 N-1000 N-1300 N-1600
Oilwell 350-PT A-650P-T A-850-PT A-1100-PT A-1400-PT A-1700-PT HD-1400-PT
HD-1700-PT 612-P 212-P 214-P 218-P 700-P 816-P
818-P 1000-P
Ideco T-500 T-800 T-1000 T-1300 T-1600 MM-450 MM-500-F
MM-600-A MM-700-F MM-1000
Gardner Denver PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 FK-FXK FY-FXD
FD-FXX FG-GXG FG-FXG KG-KXG FQ-FXQ FF-FXF FF-FXP
TGE TGF TGH PAH-275
LS National Mud Pumps 3NB-500C 3NB1000C 3NB1300C 3NB1600
Wirth Mud Pump TPK1000 TPK1600 TPK2000
Russian Pumps UNBT-950 UNB-600 8T-650 UNBT650 NBT600 UNB1180 UNB1180L
WEATHERFORD/Ellis Williams MP-5 MP-8 MP-10 MP-13 MP-16 E-447 E-2200
W446 W440
Drillmec 7TS-600 8T-800 9T1000 10T-1300 12T1600 14T-2200 10D2C
8D1S
Upetrom 3PN-1000 3PN-1600 3PN-1300 3PN-2000
OPI 350-D 350-GD 500-DC 700-HDL 1000-HDL
Lewco/Ewco W-250-C WH440 W446 W600 WH600 WH770 W1100
WH1312 W1612 W1712 W2000 W2214 W2215
American Block K800 K1000 K1300 K1600 K2200
Loadmaster LSF-500 LSF-800 LSF-1000 LSF-1300 LSF-1600
Soilmec 7T500 7T508 8T650
Dragon 440HP 660HP
GASO/Wheatly 1550 1560 1563 1654 1742 1753 1874
1849 1860 2652
Great American GA-550 GA-750
TFI BH-800 F-500 F-800 F-1000 F-1300 F-1600
TSC WF-400 WF-450 WF-700 WFU-750 WF-1000 WF-1300 WF-1600
WF-2000 WF-2200
