Description

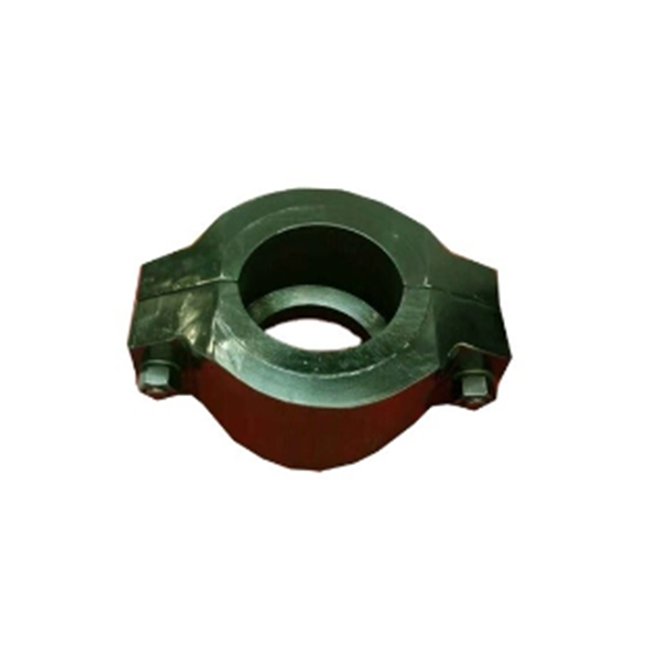

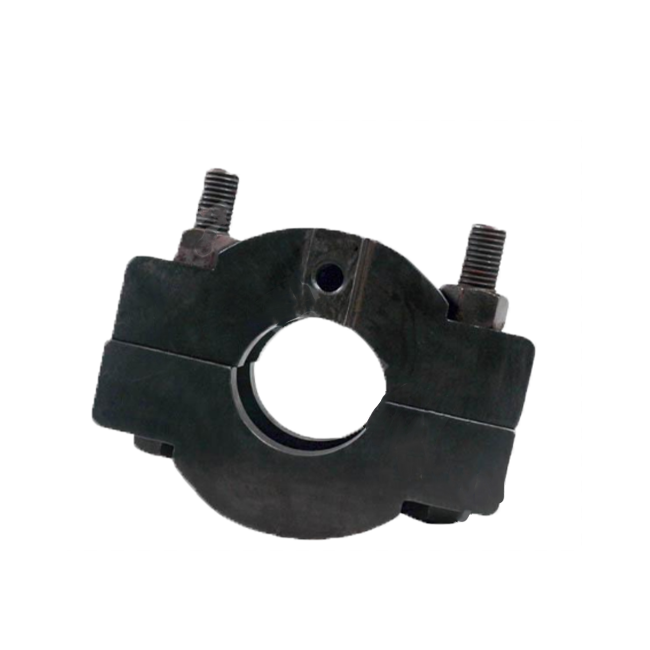

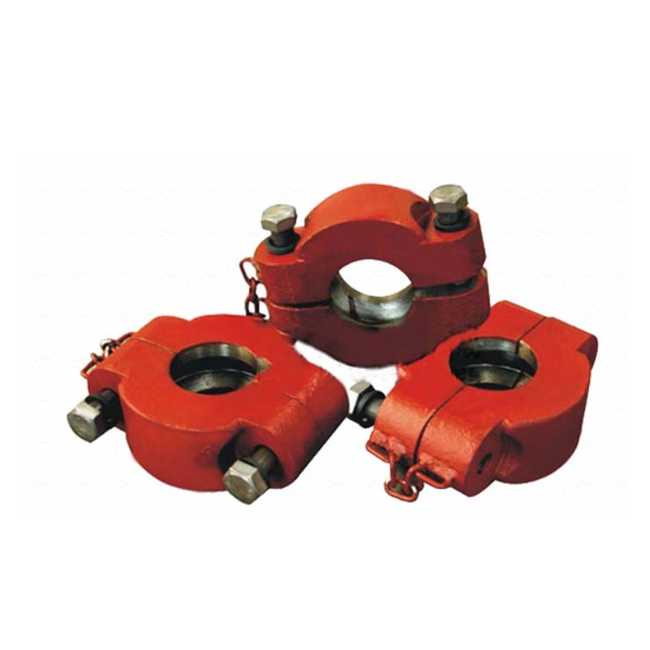

12p160 Mud Pump Piston Rod Clamp



Clamps are used for connecting Triplex piston rod to extension rod, or sub rods, the precision machining tolerance ensures proper fit and alignment of the adjoining components.

Piston Rod Clamp is the main parts of drilling mud pump hydraulic end system, we can supply various of clamp assembly to make piston rod install on the cross head intermediate rod closely.Our products has excellent mechanical properties.
We offer a full range of clamps for mating the piston rod to the crosshead extension (pony) rod. Machining tolerances are tightly held to assure proper fit and alignment of the adjoining components. All clamps are furnished complete with all required hardware.

Piston Rod Clamp Assy Suitable For Mud Pumps:
EMSCO
BOMCO		 F-350, F-500, F-650, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-2200,
D-300, D-375, D-500, D-700, DA-500, DA-700
GARDNER DENVER PAH, PJ8A, TEE, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
IDECO T-500, T-800, T-1000, T-1300, T-1600
NATIONAL JWS-400, 7-P-50, 8-P-80, 9-P-00, 10-P-130, 12-P-160, 14-P-200, 14-P-220,
K-500, K-500A, K-700, K-700A
OILWELL A-350-PT, A-560-PT, A-600-PT, A-850-PT, A-110-PT, A-1400-PT, A-1700-PT
UNBT 8T-310, 8T-650, BRN-1, NBT-600, UNB-600, UNBT-950, UNBT-1180, UNBT-1180L
QZ

LS

 3NB-800, 3NB-1000, 3NB-1000C, 3NB-1300, 3NB-1300C, 3NB-1600
WIRTH TPK1000, TPK1600, TPK2000
