MUDKING PUMP-550 (FLUID VAVLE ASSEMBLY)
Description
The RMKP-550 mud pump features a pleasing shape, advanced design, reasonable structure, and high efficiency. At power end, pinion shaft and bull gear are both hard teeth, wear-resistant, and transmission stable.All parts at power end except the lubrication oil pump and all parts of the fluid end are completely exchangeable with OEM pumps from the United States.
The taper of the valve seat is 1:6. The bottom of the seat is provided with a shoulder to be suitable for high pressure. The valve seat and the upper step of the valve seat conform to API 7K. The discharge valve and the suction valve are exchangeable.

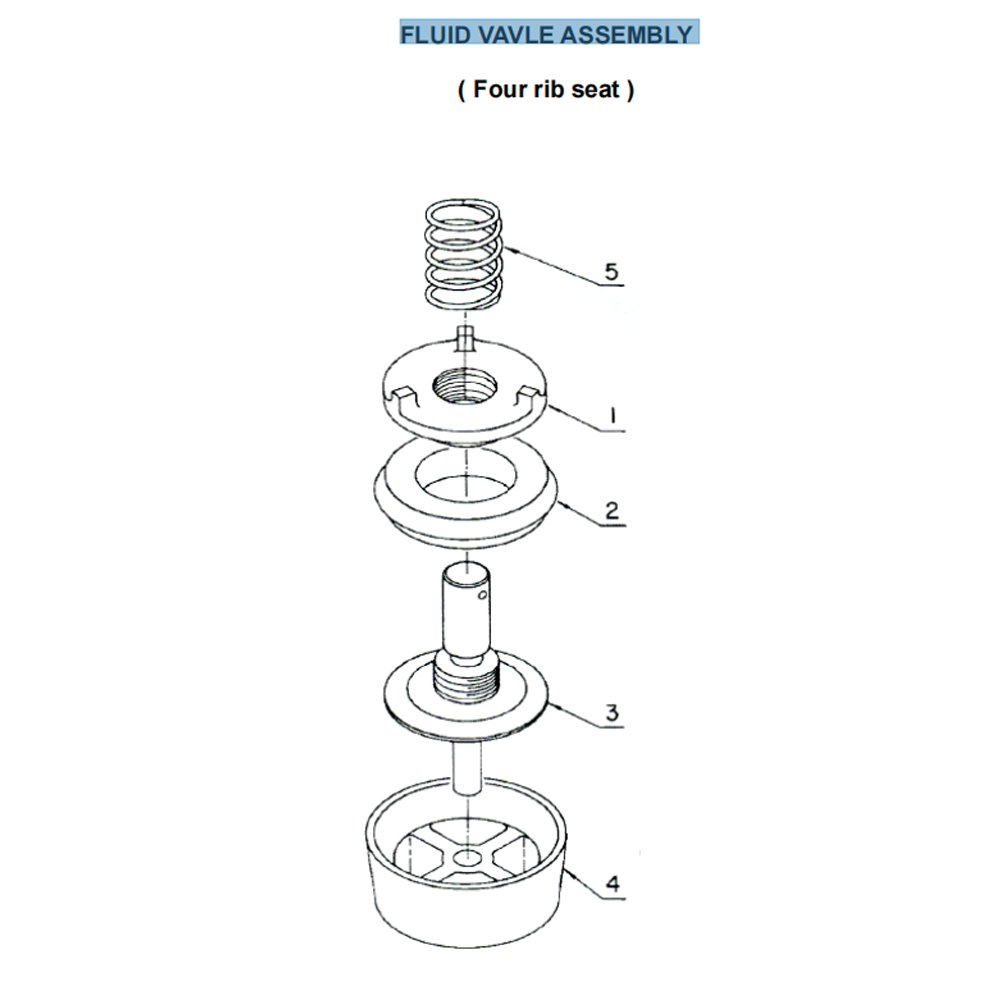

| No | Description | Qty | Part No |
|---|---|---|---|
| FLUID VALVE ASSEMBLY | RM-PZL66086 | ||
| VALVE-FLUID Includes Ref.#1 thru 3. | 6 | RM-200PZL482 | |
| 1 | PALTE-VALVE BODY | 6 | RM- |
| 2 | INERT(Urethane) | 6 | RM-201PZL106 |
| 2 | INERT(Rubber) | 6 | RM-202PZL106 |
| 3 | BODY-VALVE | RM- | |
| 4 | SEAT-VALVE | 6 | RM-200PZL039 |
| 5 | SPRING | 6 | RM-78H44 |
