Description

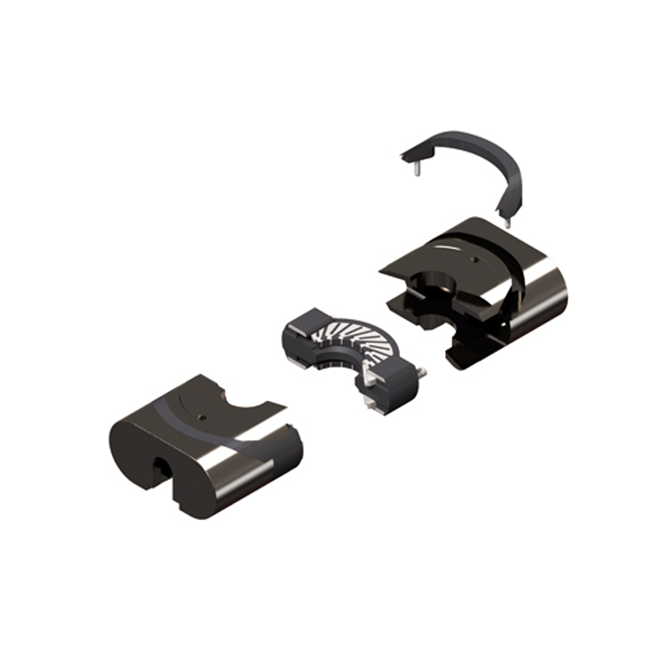

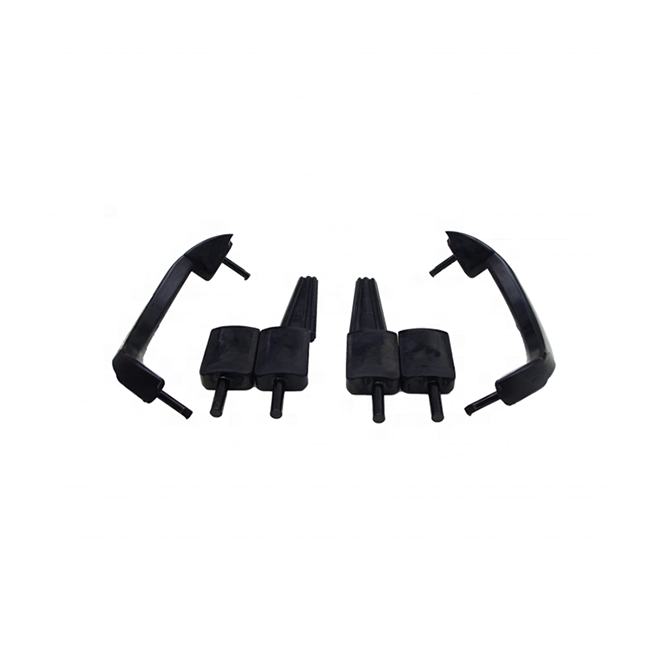

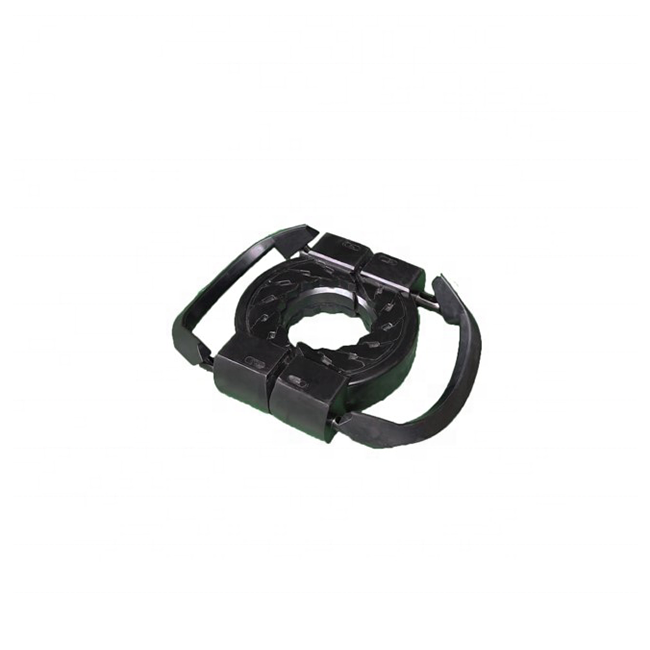

Fz 35-105 Oilfield Well Bop Shearing RAM Side Seal API 16A Blowout Preventer Type Cameron Rubber Accessories

The product can match and interchange most of domestic BOP manufactories, (such as Shanghai Shenkai, Huabei Rongsheng, Chuanyou
Jingkong, Baoji Oil,Jiangsu Xinde, Jiangsu Sanyi, etc). Over the years usage in the oil fields, it has been proved that all the
technical requirements and performance of our products can reach the standards of shaffer and Cameron Ram Packer for replacement.It can be customized according to customers’ specific requirements of temperature, pressure and environment conditions.

Temperature Range:-45 ºC~180ºC

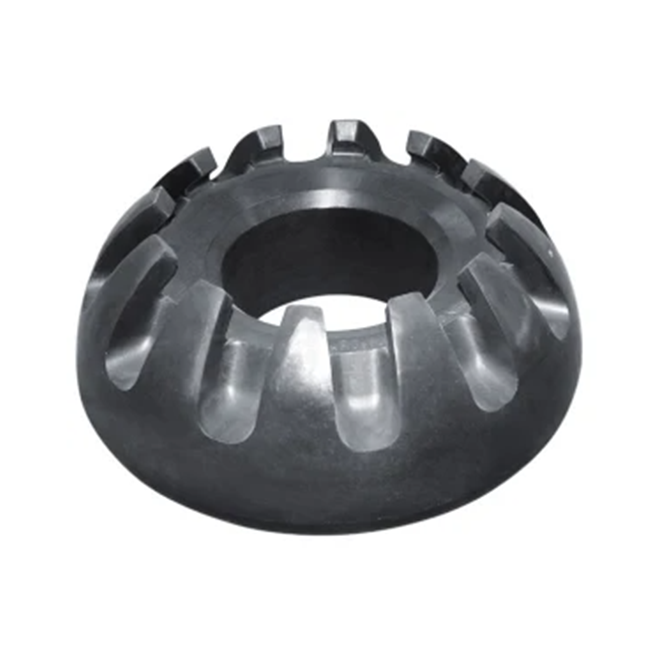

Specifications and technical parameters of Annular Bop (Model A)
Model Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FHZ18-70 179.4 70/10000 36 27 6293
FHZ28-70 279.4 70/10000 67 66 12290
FHZ35-70 346.1 70/10000 116 117 15190
FHZ43-35 425.4 35/5000 134 134 14100
FHZ54-14 539.7 14/2000 95.3 94.5 7660
Specifications and technical parameters of Annular Bop (Model D)
Model Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FH18-21 179.4 21/3000 21 15 1433
FH18-35 35/5000 21 15 1520
FH23-21 228.6 21/3000 34 22.8 2398
FH23-35 35/5000 42 33 2986
FH28-21 279.4 21/3000 50 39 2950
FH28-35 35/5000 6 72 4675
FH35-21 346.1 21/3000 94 69 5738
FH35-35 35/5000 94 69 6415
FH48-35 425.3 35/5000 220 171 16000
FH53-21 427 21/3000 173 110 6994
FH54-35 539.7 35/5000 241 181 20230
