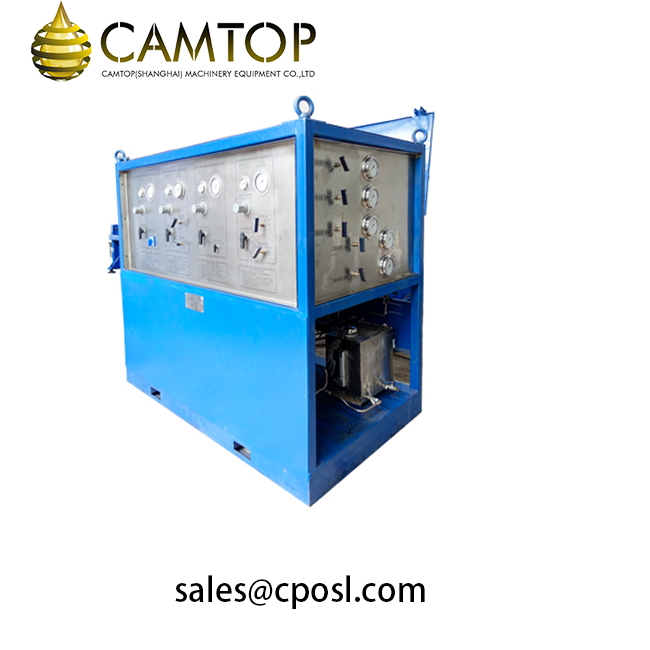

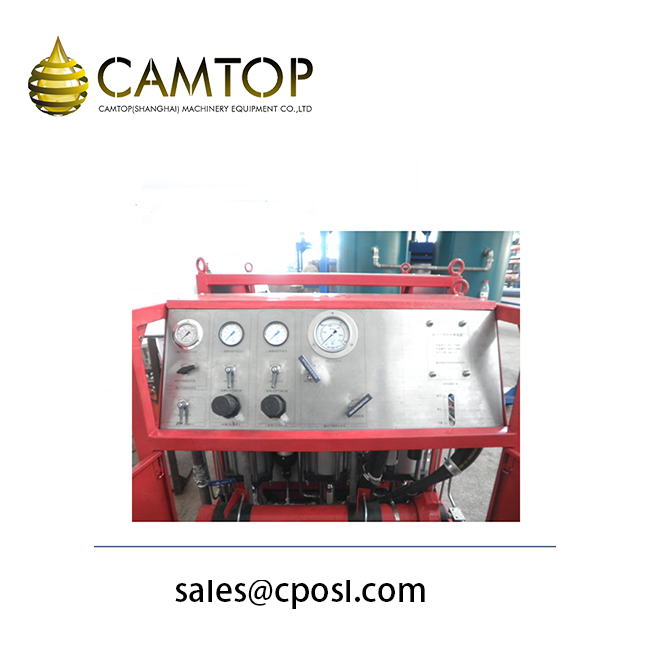

Portable wellhead high pressure hydro test pump
Product Description
Introduction
CNG cylinder hydrostatic test pump are a fast, safe and simple method for hydro
test, ideally suited to work with the above plugs or on a stand alone basis eg heat exchanger
tubes, pipes, pressure vessels, hoses, etc.
Burst pressure testing machine are for oil, water or aggressive medium are complete hydraulic
units ready for connection which are provided for generating operating pressure up to 1,500bar.
The pressure will be generated by means of a pneumatically operated pump. The pump will be
connected to the existing industrial compressed-air ductwork system for hydrostatic pressure testing machine.
Advantages
– Standstill of the pump when reaching the set final pressure
– No energy consumption in case of long pressure holding times
– No dissipated heat during the pressure holding phase
– Substitute of leakage by automatic re-delivery through the pump
– Regulator to control inlet air supply
– High pressure bleed valve and high pressure outlet
– Simple air-driven pump
– Test in the field or in the shop
– Simple installation, operationally reliable, easy to maintain
Technical parameters
Item |
Description |
Medium |
Water,gas,glycol kinds of chemicals |
Pressure |
0~1500bar |
Flow |
0~26.39GPM(it’s customize) |
Pressure accuracy |
±1%FS |
High pressure gauge |
0~2000bar |
Needle valve |
412bar~2000bar(it’s customize) |
Pressure regulator |
YES |
Bleed-off valve |
YES |
Air compressor |
N/A(it’s customize) |
Water tank |
YES |
Record |
N/A/mechanical/electronic recorder |
Schematic Drawings
Product details
Testing Procedure
