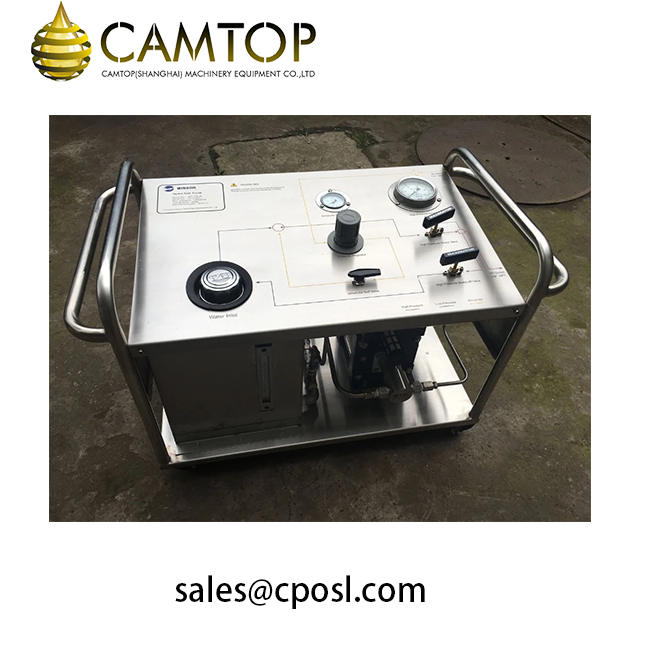

Portable Water Hose Hydrostatic Pressure Test Booster Pump
Introduction
Water hose pressure booster are a fast, safe and simple method for hydrostatic testing, ideally suited to work with the above plugs or on a stand alone basis eg heat exchanger tubes, pipes, pressure vessels, hoses, etc.
Hydrostatic head pressure test are for oil, water or aggressive medium are complete hydraulic units ready for connection which are provided for generating operating pressure up to 1,500bar.
The pressure will be generated by means of a pneumatically operated pump. The pump will be connected to the existing industrial compressed-air ductwork system.
Advantages
– Standstill of the pump when reaching the set final pressure
– No energy consumption in case of long pressure holding times
– No dissipated heat during the pressure holding phase
– Substitute of leakage by automatic re-delivery through the pump
– Regulator to control inlet air supply
– High pressure bleed valve and high pressure outlet
– Simple air-driven pump
– Test in the field or in the shop
– Simple installation, operationally reliable, easy to maintain
Technical parameters
| Item | Description |
| Medium | Water,gas,glycol kinds of chemicals |
| Pressure | 0~1500bar |
| Flow | 0~26.39GPM(it’s customize) |
| Pressure accuracy | ±1%FS |
| High pressure gauge | 0~2000bar |
| Needle valve | 412bar~2000bar(it’s customize) |
| Pressure regulator | YES |
| Bleed-off valve | YES |
| Air compressor | N/A(it’s customize) |
| Water tank | YES |
| Record | N/A/mechanical/electronic recorder |
Schematic Drawings
