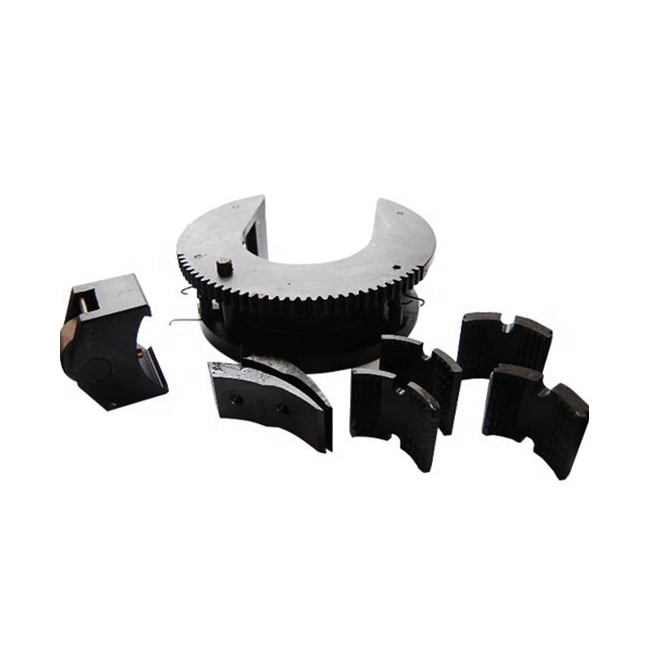

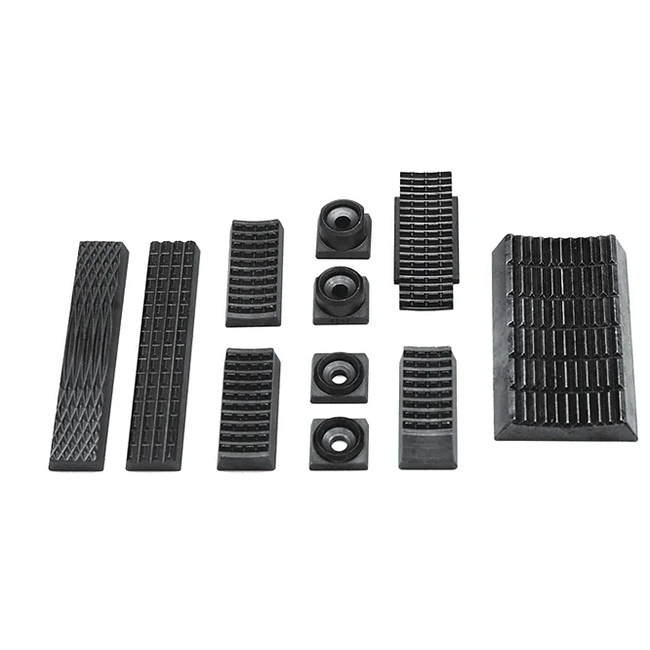

The dies and Jaws are made of high-quality alloy steel
They are chemically heart-treated for surface hardness.
They are wear-resisting and corrosion-resisting and they have a long service life.
We can also design and manufacture special inserts according to customer’s requirements
While running in or pulling out tubular at oil rigs the joints (tool joints) are tightened or loosened with the help of manual tongs or power tongs.
Dies are the principal element in the Manual Tongs and Power Tongs which carry out the job of gripping the tool joints, before torque application. (Rollers or chains are also used for gripping of tubular while using pipe spinners)
CAMTOP manufactures tong dies and slip inserts out of the best quality alloy steel. The dies are case hardened to the desired depth while leaving the inner portion (core) ductile. The hardened surface is highly resistant to wear and exhibits quality gripping of tool joints. The inner ductile core absorbs the shock of sudden impact and heavy torque. The combined effect is an efficient operation in the long run. CAMTOP make dies to meet OEM specifications also.
| Use for product | Pipe size (in) |
|---|---|
| W-SDS Rotary Slips | 2 3/8″ – 4 1/2″ |
| W-SDML Rotary Slips | 2 3/8″ – 5 1/2″ |
| W-SDXL Rotary Slips | 3 1/2-5 1/2 |
| 3 1/2″ – 5″ Rotary Slips | 3 1/2″ – 5″ |
| 5″ – 7″ Rotary Slips | 5″ – 7″ |
| W3 1/2-75 (125) Rotary Slips | 2 3/8″, 2 7/8″, 3 1/2″ |
| 5-75 (125,200) Rotary Slips | 4″, 4 1/2″, 5″ |
| DCS-S Drill Collar Slips | 3″ – 4 7/8″ |
| DCS-R Drill Collar Slips | 4 1/2″ – 7″ |
| DCS-L Drill Collar Slips | 6 3/4″ – 14″ |
| WT Drill Collar Slips | 4 1/2″ – 11 3/4″ |
| 8″ Drill Collar Slips | 8″ |
| 9″ Drill Collar Slips | 9″ |
| Casing Slips | 6 5/8″ – 30″ |
| WA-C Safety Clamps | 3 1/2″ – 15 5/8″ |
| WA-T Safety Clamps | 1 1/8″ – 4 1/2″ |
| QQP60-89/585 Pneumatic Spider | 2 3/8″ – 3 1/2″ |
| QQP60-89/675 Pneumatic Spider | 2 3/8″ – 3 1/2″ |
| QQP60-127/900 Pneumatic Spider | 2 3/8″ – 5″ |
| Well Repair Manual Tongs | 2 3/8″ – 10 3/4″ |
| B Manual Tongs | 2 3/8″ – 12 3/4″ |
| DB Manual Tongs | 3 1/2″ – 17″ |
| 13 3/8 Casing Manual Tongs | 13 3/8″ |
| Q13 3/8-30 Casing Manual Tongs | 13 3/8″ – 30″ |
| Tubing and workover tong | All size available |
| Drill Power tong | All size available |
