Mud Pump Pulsation Dampener Air Bag Bladder

CAMTOP supplies forged and casted steel pulsation dampeners which are inter-changeable and
compatible with Hydril series “K” dampeners, Emsco series “PD” dampeners and Bomco
series “KB” dampeners. These units are dependable and reliable with API connections

K-10,3000 psi/K-10,5000 psi/K-20, 5000 psi/K-20, 7500 psi
KB-45, 5000 psi/KB-75, 5000 psi
PD-45, 5000 psi/PD-55, 5000 psi

Fluid End Expendables & Accessories
Liner: hy-chrome liner, zirconia liner, ceramic liner, chrome-plated liner, hardned liner
Piston: nitrile rubber piston, supreme piston, polyurethane piston, urethane bonded piston, green duo piston, blue lightning piston, white lightning piston
Valve & Seat: three-web valve seat, four-web valve seat, full open valve seat, Bomco type valve seat, NOV valve seat, Mission valve seat, Southwest valve seat
Pulsation Dampener: KB45,KB75,PD45,PD55,K10,K20
Module: “I” shaped module, “L” shaped module, suction module, discharge module
Spare parts: Upper and lower Valve Guide, Liner Gasket, Piston Rod, Rod Clamp, Valve Cover, Valve Cover Seal, Cylinder head, Cylinder Head Gasket, Cylinder Head Flange/Threaded Ring, Alignment Ring, Wear Plate, Cylinder Head Plug, Liner Flange, Liner Lock, Mud Baffle

Power End Parts
Pony Rod/Extension Rod, Stuffing Box, Stuffing box Seal Parts, Crosshead, Crosshead Guide, Crosshead Pin, Crosshead Bearing, Connection Rod, Bull Gears, Pinion Shaft, Pinion Shaft Bearing/Bearing Carrier/Oil Seal Gasket/, Crank Shaft, Crank Shaft Bearing/Bearing Carrier, Eccentric Bearing, Inner/outer Race Retainer, Gauges, Oil Lubrication Pump, Mud Pump Transmission Belt Pulley/V-belt.

Model Bottom O/D mm Upper O/D mm Upper I/D mm H mm Lip Thickness mm
F1300/1600(KB-75) 530 279 240 378 16
3NB-1000/1300(3NB) 590 314 280 286 23
F500/800/1000(KB-45) 445 235 196 332 16
SL-1300A 465 270 240 250 21
600 530 300 260 350 30
KB-25 368 203 162 297 15
350 350 216 190 250 20

Product introduction:

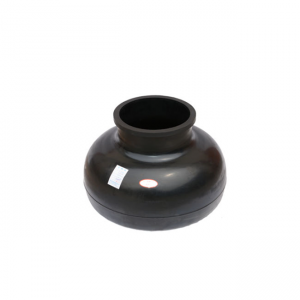

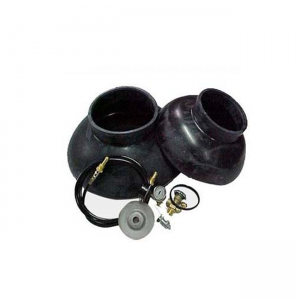

rubber bladder is composed of rubber pulsation bladder,rubber balance plate and pressure plate bolt, it can reduce the drilling pump pressure fluctuations of instantaneous displacement change;

Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.

the product is also used as stabilizer and vibration absorber for air pump.

Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gas is forbidden.

Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.

Usage:

Mainly applicable to 25 to 35 Mpa drilling, to meet the needs of high pressure jet drilling.

Specification:

Above are our regular specification, any customizing request is also welcome.

Mud Pump Model:
Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL
Emsco: F-500, F-800, F-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600 D-300/500, D-375, D-700
National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, JWS-340, JWS-400
Oilwell: A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT Ideco: T-500, T-800, T-1000, T-1300, T-1600
Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000
Russian Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
WEATHERFORD/Ellis Williams: E-447, E-2200, W446, W440
Drillmec: 9T1000, 12T1600, 7TS600,10D2C, 8D1S
Romania: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000
OPI: 700-HDL | 1000-HDL
