Description

Bop Top Seal Front Seal Rubber Seal Spare Parts for RAM Bop

BOP parts that we supply all come from original manufacturers, they are 100% interchangeable

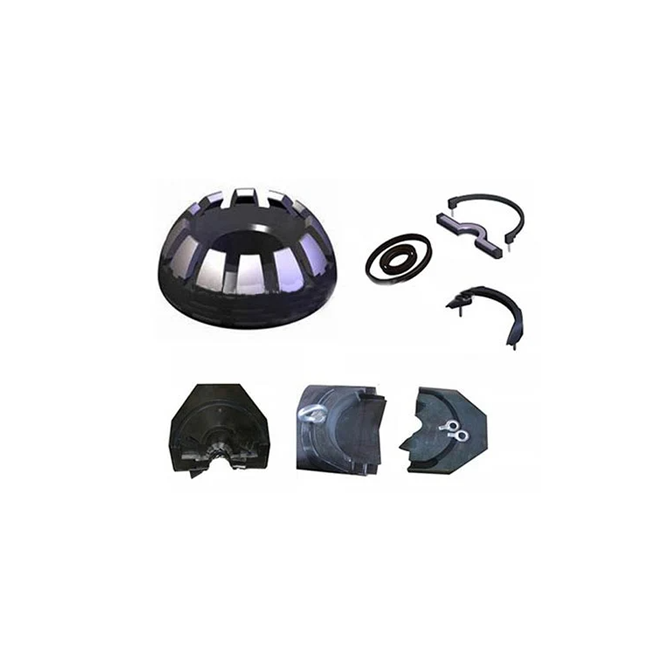

BOP PART NAME: top sealing, front sealing, pipe ram, blind ram, slip ram, shear ram, spherical packer, bonnet, piston, shell.

APPLY TO BELOW BOP:

Brand: ALL FAMOUS BRAND BOP

Type :Annular BOP, Single Ram BOP, Double Ram BOP, Shear Ram BOP
Standard: API Spec 16A,16C
Working pressure:2000psi-15000psi(14 Mpa-105Mpa)
Operating temperature:-18deg–121deg
Bore size:7 1/16″-21 1/4″
Top & nottom connection:Flanged,studded

Specifications and technical parameters of Annular Bop (Model A)
Model Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FHZ18-70 179.4 70/10000 36 27 6293
FHZ28-70 279.4 70/10000 67 66 12290
FHZ35-70 346.1 70/10000 116 117 15190
FHZ43-35 425.4 35/5000 134 134 14100
FHZ54-14 539.7 14/2000 95.3 94.5 7660
Specifications and technical parameters of Annular Bop (Model D)
Model Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FH18-21 179.4 21/3000 21 15 1433
FH18-35 35/5000 21 15 1520
FH23-21 228.6 21/3000 34 22.8 2398
FH23-35 35/5000 42 33 2986
FH28-21 279.4 21/3000 50 39 2950
FH28-35 35/5000 6 72 4675
FH35-21 346.1 21/3000 94 69 5738
FH35-35 35/5000 94 69 6415
FH48-35 425.3 35/5000 220 171 16000
FH53-21 427 21/3000 173 110 6994
FH54-35 539.7 35/5000 241 181 20230
