Replacement Parts for 2 1/16″ CIW Manual F & FC Gate Valves

We manufactures a full line of replacement parts for Cameron-style Manual Gate Valves F & FC (CIW) including Gates, Seats, Body Bushings, Stems, Bonnet Seal Rings, Bearing & Races, Body Grease Fittings, Packing Injection Fittings, Handwheels and more.

				2 1/16″ 5,000 psi	2 1/16″ 10,000 psi	2 1/16″ 15,000 psi
	Part Description		No. Req’d	P/N	P/N	P/N
1.	Handwheel	DUCTILE IRON	1	19937-01	19937-03	19937-03
2.	o-ring	BUNA	1	B/70-236	B/70-236	B/70-236
3.	Grease FTG (brg cap) PRESS	S.S.	2	5929-05	5929-05	5929-05
4.	Bearing Cap	alloy	1	19106-01	19106-01	19106-01
5.	Bolt/Nut(handwheel)
6.	O-ring (Stem Adpt.)	BUNA	1	B/70-222	B/70-222	B/70-222
7.	Stem Adapter	alloy	1	20871-01	20871-01	20871-01
8.	Thrust Bearing		2	5931-09	5931-09	5931-09
9.	Bearing Race		4	19108-01	19108-01	19108-01
10.	Packing Gland 4130	4130 PHOSPHATE	1	20874-01	20874-01	20874-01
11.	Check Valve s.s	S.S.	1	19776-01	19776-01	19776-01
12.	Grease Ftg	4140 nace	1	5929-25	5929-25	5929-25
	s.s.	S.S.		5929-55	5929-55	5929-55
13.	Bonnet	4130	1	33297-01-01	33297-04-01	33297-05-01
14.	Stem Pin	alloy	1	21812-14	21812-14	21812-14
15.	Stem Packing		1	686598-01	686598-01	686598-01
	Stem Pkg backup ring	MFTFE		N/A	N/A	(1) 691889-01
16.	Stem	17-4 S.S	1	19285-01	19285-01	19285-01
		INCONEL		29381-01-99	29381-01-99	29381-01-99
17.	Bonnet Nut	B7	8	5926-09-10	5926-25-10	5926-23-10
18.	Bonnet Stud	B7	8	5912-67-10	5914-18-10	5915-67-10
19.	Gate	410 S.S. NIT.	1	19798-04	19798-04	19798-04
		4130 HF/COL.		694493-01	694493-01	694493-01
		410 S.S. HF/TC		23042-04	23042-04	23042-04

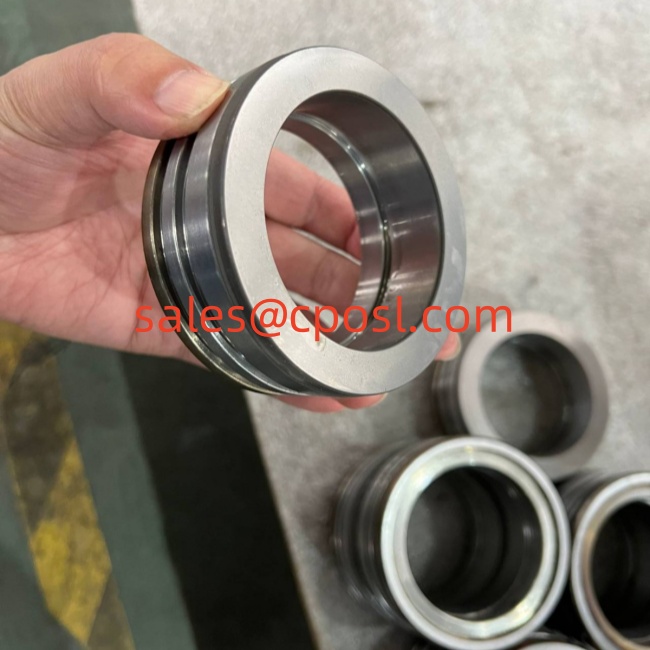

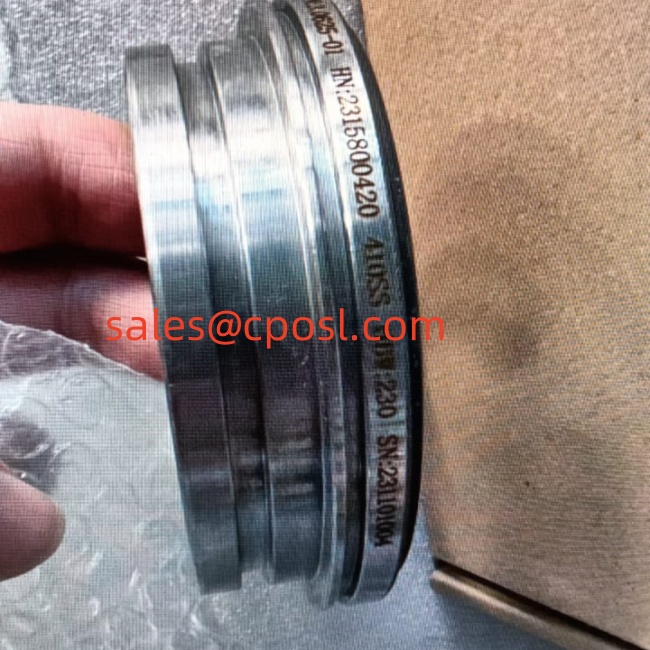

20.	Seat Ring	stellite	2	44844-06	44844-06	44844-06
		410 S.S. NIT.		C-04110-50	C-04110-50	C-04110-50
21.	Body Bushing	410 S.S.	2	694810-01	694810-01	694810-01
22.	Body Bushing Seal	MFTFE	2	14719-69	14719-69	14719-69
23.	Seal Ring “seat seal”	MFTFE	2	14719-23	14719-23	14719-23
24.	Retainer Plate	alloy	2	611404-01	611404-01	611404-01
		S.S.		611404-02	611404-02	611404-02
25.	Bonnet Seal Ring	S.S.	F	21793-11	19141-07	19141-07
		S.S.	FC		16210-30	16210-30
26.	Gate Guide	S.S.	2	694811-01	694811-01	694811-01
27.	Body, Valve	4130	1	694812-01-01	235000-01-01	610591-01

NOTE: Regular Trim = 410 Nitride Gate & S.S. Nitride Seat Super Trim = 4130 HF/COL Gate & Solid Stellite Seat Stainless Super Trim = 410 S.S. HF/TC Gate & Solid Stellite Seat
