Replacement Parts for 3 1/8″ & 3 1/16″ CIW Manual F & FC Gate Valves

We manufactures a full line of replacement parts for Cameron-style Manual Gate Valves F & FC (CIW) including Gates, Seats, Body Bushings, Stems, Bonnet Seal Rings, Bearing & Races, Body Grease Fittings, Packing Injection Fittings, Handwheels and more.

3 1/8″ 5,000 psi 3 1/16″ 10,000 psi 3 1/16″ 15,000 psi

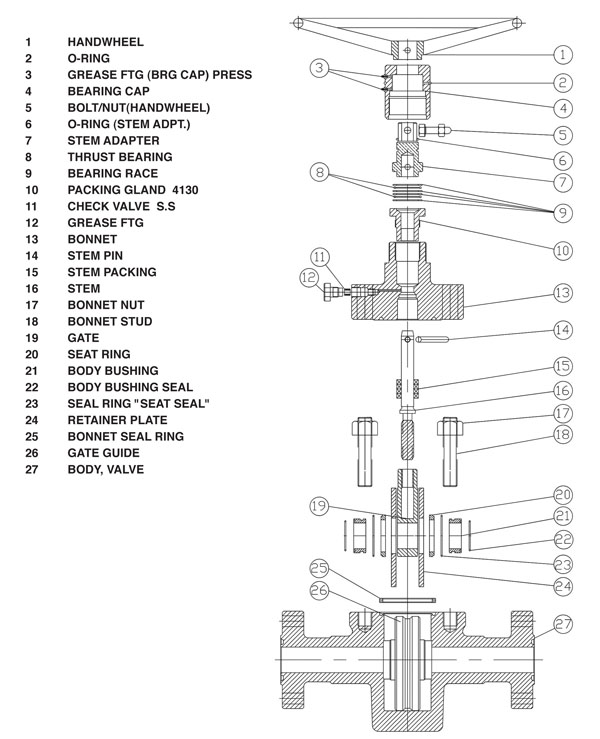

Part Description No. Req’d P/N P/N P/N
1. Handwheel DUCTILE IRON 1 19937-03 20774-02 20774-02
2. o-ring BUNA 1 B/70-236 B/70-236
3. Grease FTG (brg cap) PRESS S.S. 2 5929-05 5929-05 5929-05
4. Bearing Cap alloy 1 19106-01 19106-01 678472-01
5. Bolt/Nut(handwheel)
6. O-ring (Stem Adpt.) BUNA 1 B/70-222 B/70-222
7. Stem Adapter alloy 1 20871-01 20871-01 676474-01
8. Thrust Bearing 2 5931-09 5931-09 5931-22
9. Bearing Race 4 19108-01 19108-01 19310-02
10. Packing Gland 4130 4130 PHOSPHATE 1 20874-01 20874-01 677509-01
11. Check Valve s.s S.S. 1 19776-01 19776-01 19776-01
12. Grease Ftg 4140 nace 1 5929-25 5929-25 5929-25
s.s. S.S. 5929-55 5929-55 5929-55
13. Bonnet 4130 1 33297-09-01 33297-10-01 677513-02-01
14. Stem Pin alloy 1 21812-14 21812-14 C-24325-21
15. Stem Packing 1 686598-01 686598-01 691889-03
Stem Pkg backup ring MFTFE N/A N/A (1) 691889-01
16. Stem 17-4 S.S 1 19285-03 19285-03 687853-01
INCONEL 29381-49 29381-49 688590-01-99
17. Bonnet Nut B7 8 5926-25-10 5926-24-10 (16)18573-06-10
18. Bonnet Stud B7 8 5914-21-10 5917-33-10 (16)5914-95-10
19. Gate 410 S.S. NIT. 1 19800-03 19800-03 NO availability
4130 HF/COL. 23791-01 23791-01 678253-01
410 S.S. HF/TC 19800-02 19800-02 677512-01
20. Seat Ring Stellite 2 44783-06 44783-06 678353-01
410 S.S. NIT. C-04120-50 C-04120-50 NO P/N
21. Body Bushing 410 S.S. 2 694813-01 630469-06 44639-02
22. Body Bushing Seal MFTFE 2 610500-71 610500-71 610500-77
23. Seal Ring “seat seal” MFTFE 2 610500-50 610500-50 610500-55
24. Retainer plate alloy 2 611404-03 611404-03 611404-15
NO P/N S.S.
25. Bonnet Seal Ring S.S. F 21793-27 19141-10 19141-13
S.S. FC CFC-16220-30 44671-04
26. Gate Guide S.S. 2 694482-01 694482-01 44640-01
27. Body, Valve 4130 1 N/A 694480-01 44737-01
NOTE:
Regular Trim = 410 Nitride Gate & S.S. Nitride Seat
Super Trim = 4130 HF/COL Gate & Solid Stellite Seat
Stainless Super Trim = 410 S.S. HF/TC Gate & Solid Stellite Seat
