Description

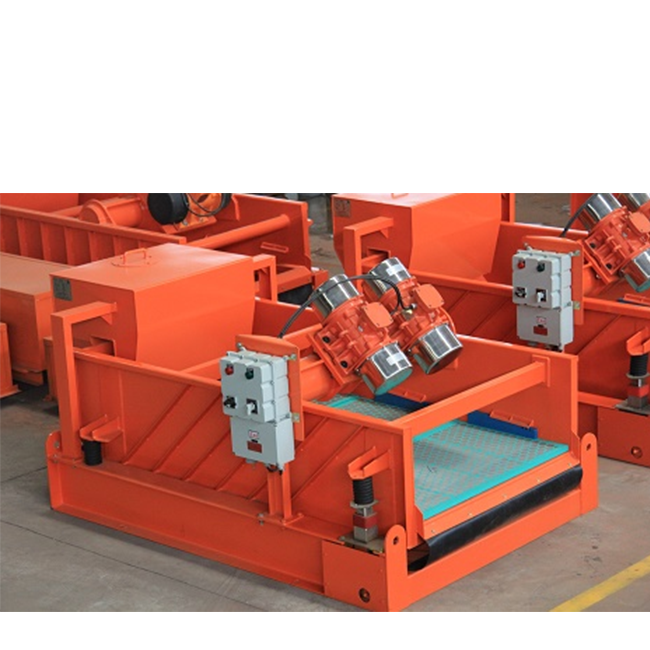

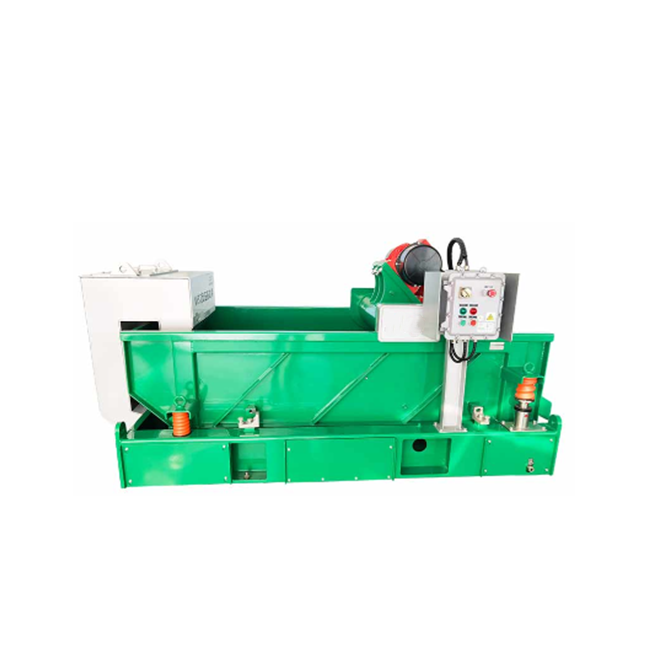

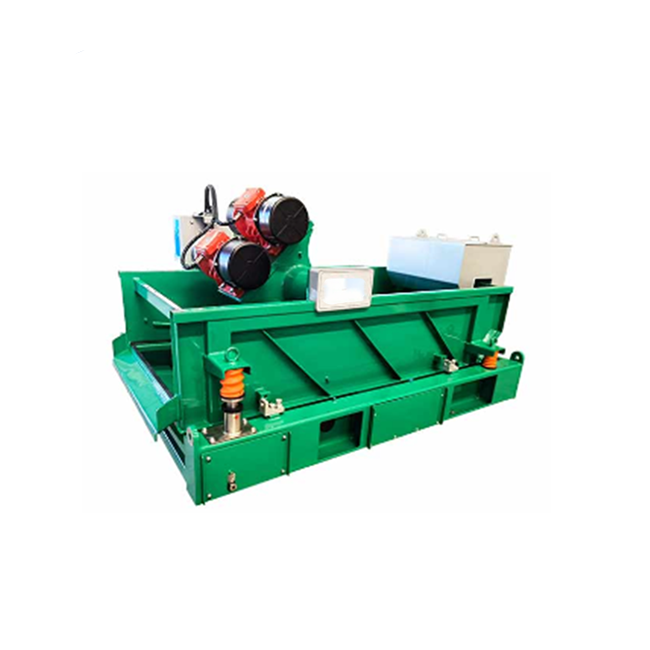

Shale Shaker

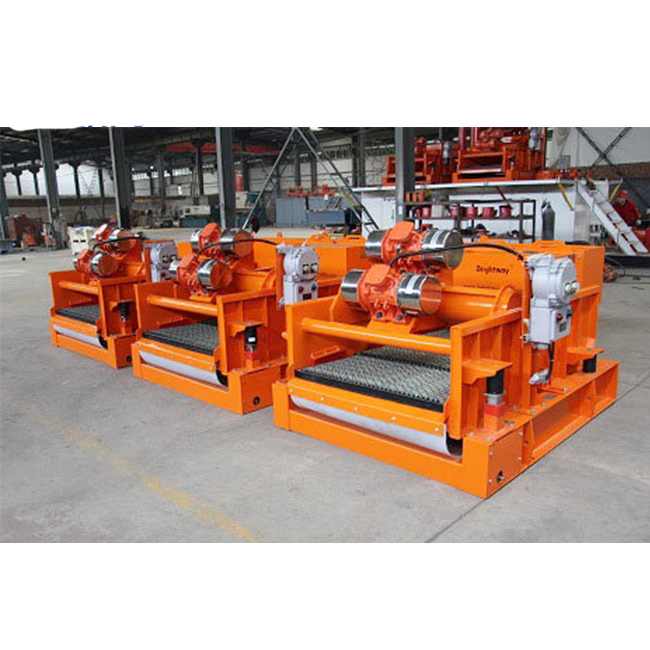

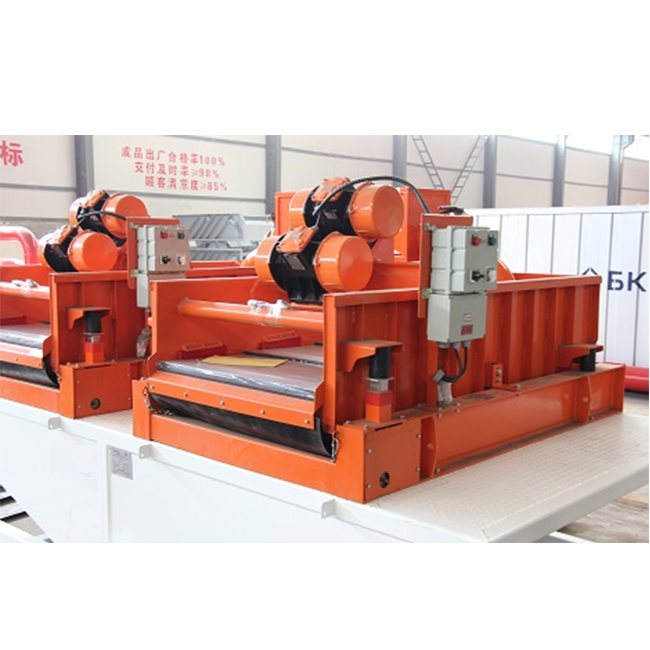

Shale Shaker is the first stage solids control equipment in drilling fluids recycling system; it is also the most important equipment. To a large extent, the performance of shale shaker decides the working efficiencies of whole solids control system. Besides single shale shaker, CAMTOP also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor. CAMTOP provides the most popular type Linear Motion shale shaker.

  • Ajustable High G force for primary solids control or cuttings drying.
  • Heat treatment on complete shale shaker deck.
  • Vibrating Motor: IEC Ex, ATEX and UL Certified.
  • Electrical components: SIEMENS, Schneider Brand.
  • Shale Shaker Bottom Deck Material: Stainless Steel.
  • Wedge type design for easy and quick screen replacement.
  • Electric Shaker Deck angle adjustable while working.
Model LK-200 LK-528 LK-616
Vibration Mode Linear Motion
Capacity 45m3/h(200GPM) 120m3/h(528GPM) 140m3/h(616GPM)
Vibration Motor 2×0.75Kw 2×1.72Kw 2×1.94Kw
Screen Qty 2pcs 3pcs 4pcs
Screen Size: L×W 750×900mm 700×1250mm 585×1165mm
Screen Area 1.35m2 2.63m2 2.73m2
Adjustable G Force ≤7.1G ≤7.5G ≤8.0G
Vibration Amplitude 3.92~5.62mm 4.14~5.96mm 4.4~6.34mm
Deck Angle Range +2° -1°~+5° (Adjustable)
Feeding Type Box Feeder Box Feeder Hopper Feeder
Weir Height 710mm 1042mm
EX Standard ExdIIBt4 / IEC EX/ ATEX
Weight (Kg) 893 1742 1638
Dimension: L×W×H(mm) 1676×1689×1062 2419×2055×1474 2761×1998×1428
