Stabilizer

Integral Spiral/Straight Blade Drill Stabilizers

Replaceable Sleeve Drill Stabilizer
Non-Rotating Drill Stabilizer
Float Valve Drill Stabilizer
Variable Diameter Drill Stabilizer
Unbalanced Spiral Blade Drill Stabilizer
Spherical Drill Stabilizer
As per API Spec  7

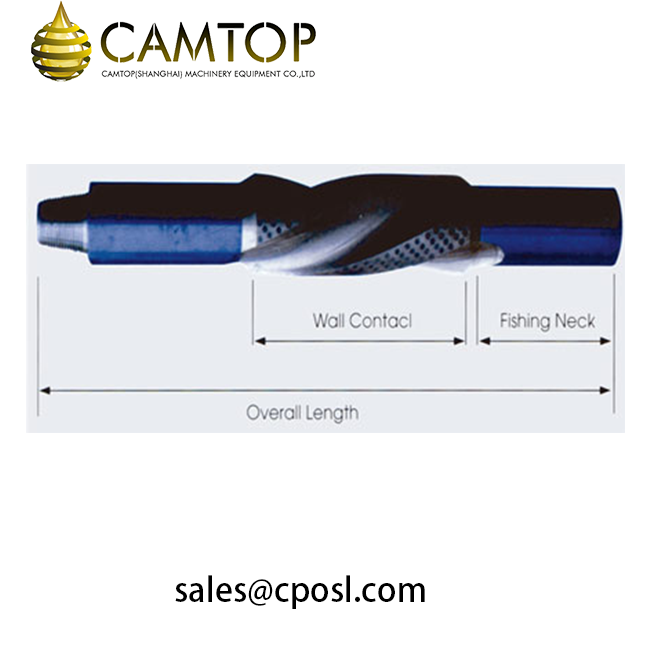

Integral Spiral Blade Stabilizer
ntegral Spiral Stabilizer is a one-piece tool made by AISI 4145H alloy steel and fully heat-treated to 285-341 Brinel Hardness number, and 54 Joules of minimum impact value  Three spiral blades have been designed to minimize the downhole torque, to reduce damage of the hole wall, and ensure the maximum fluid circulation  When drilling vertical holes, they shall be applied to reduce drift of drill bits and keep the drill bit straight downward  When drilling directional holes, they can increase, decrease or stabilize the tilt of the hole, to ensure the orientation of the hole, to ensure the quality of the well, and increase the drilling speed

RECOMMEND SIZE OF INTEGRAL SPIRAL STABILIZER

Hole Size (in)

Standard DC Size
(in)
Wall Contact
(in)
Blade Width
(in)
Fishing Neck length
(in)
Blade
under-gauge (in)
Overall length(in) Weight
String Near Bit

(lb)

6-6 ¾

4 ½-4 ¾ 16 2 ¼ 28 ~ 1/32 74 70 363
7 ½-8 ½ 6 ½ 16 2 ½ 28 ~ 1/32 75 70

770

9 ½-12 ¼

8 18 3 ½ 30 ~ 1/32 83 78 1650

14 ¾-17½

9 ½ 18 4 30 ~ 1/16 92 87

2204

20-26 9 ½ 18 4 30 ~ 1/16 100 95

3960

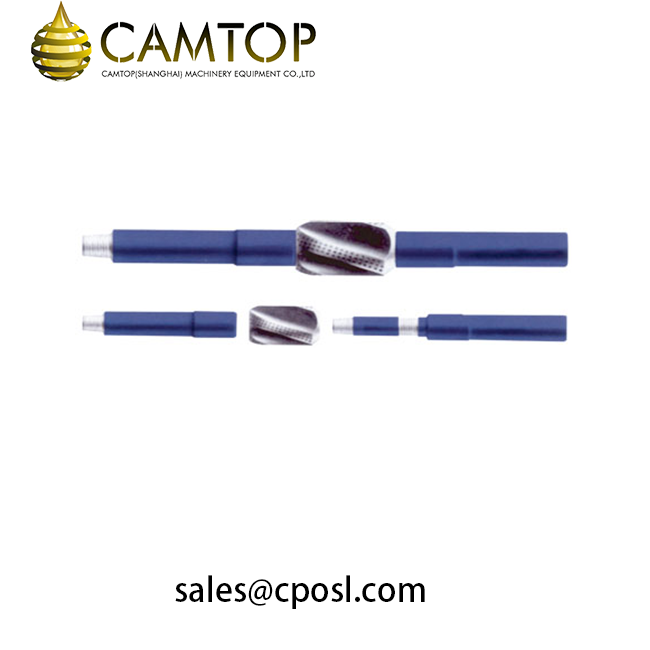

Replaceable Sleeve Stabilizer
Interchangeable Sleeve Stabilizers are made by AISI 4145H alloy steel and heat-treated to 285-341 Brinel Hardness number, and 54 Joules of impact value  For each body, a series of sleeves can be fitted with it; the body is constructed in two pieces, and jointed together by the sleeve

RECOMMEND SIZE OF REPLACEABLE SLEEVE STABILIZER

Hole size (in)

Sleeve DC Size (in) Bore (in) Upset Dia  (in) Center connection Weight (Ib)

Overall length (in)

Blade width (in)

Length (in)

6 ¼-6 ¾

2 18 4 ¾ 2 4 ¾ 2 ⅞IF 275 64
7 ⅜-7 ¾ 2 18 5 ¾ 2 ¼ 5 ¾ 3 ½IF 396

66

8 ½-8 ¾

2 ⅜ 18 6 ½ 2 13/16 6 ¾ 4IF 550 68
9 ½-11 2 ¾ 18 7 ¼ 2 13/16 7 ½ 4 ½IF 726

68

12 ¼-17 ½

3 ⅛ 24 9 ½ 3 9 ½ 7 ⅝ Reg 1210 81

17 ½-20

4 33 11 ¼ 3 11 ¼ 8 ⅝ Reg 1782

90

22-26 4 33 9 ½ 3 9 ¼ 7 ⅝ Reg 1353

90

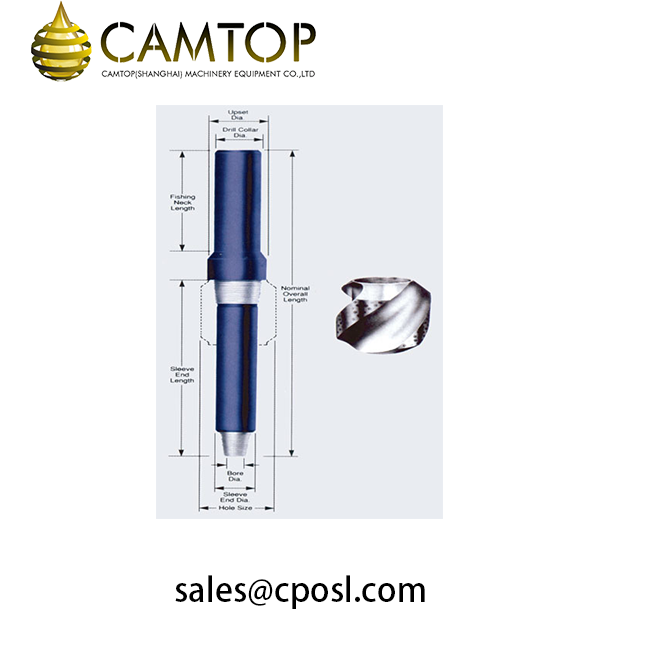

Sleeve Stabilizer

ole size (in)

DC Size (in) Upset
Diameter (in)
Bottom Neck
Dia  (in)
Overall
length (in)
Fishing neck length (in) Weight (Ib) Sleeve
length (in)
String Near-Bit

6 ¼-7 ½

4 ¾-5 5 ¾ 4 ¾ 65 27 22 275 14
8 ½-9 ⅞ 6 ¼-7 ¼ 7 ½ 6 ½ 65 27 22 572

14

12 ¼”-17 ½

8 ½-9 9 ⅞ 8 ½ 66 27 22 1012 18
14 ¾-20 9 ½-10 11 9 ⅝ 66 27 22 1210

22
