Description

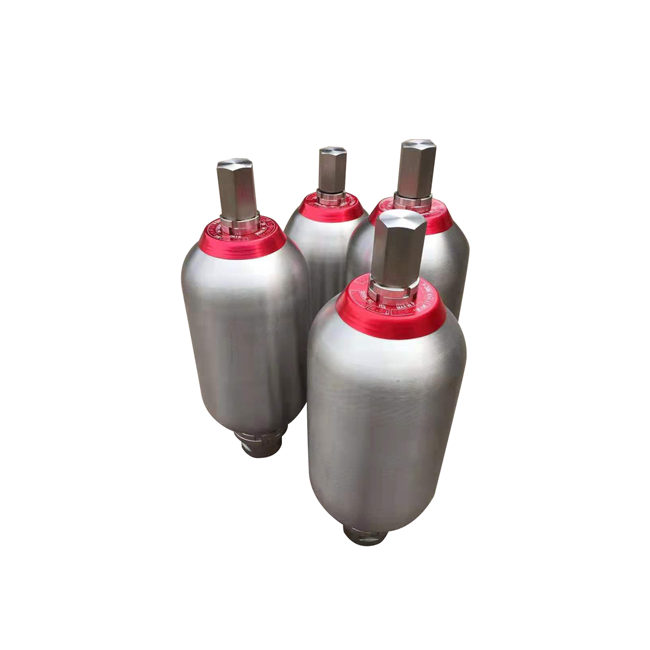

Stainless steel capsule accumulator

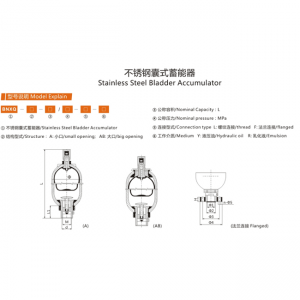

Stainless Steel Bladder Accumulator
型号/Model 公称压力 (Mpa) Nominal PressUr 公称容积L)
Nominal
Volume		 尺寸Size(mm)
M d Ф 1 Ф 2 Ф 3 Ф 4 N. Ф 5 L 1 H 连接方式Connection Type Ф 重量(kg) Weighl
螺纹 Thread 法兰Fiange
L
BNXQ-*-0.4/*-L(F)-* 10/15 0.4 M27×2 / 22 30 85 115 4-Ф17 52 22 260 270 89 3/3
BNXQ-*-0.63/*-L(F)-* 0.63 315 325 3.5/3.5
BNXQ-*-1/*-L(F)-* 1 430 440 4.5/4.5
RNXO-.1/。L(F)- 1 330 340 114 5/5.5
BNXQ-*-1.6/*-L(F)-* 1.6 M42×2 50 42 50 97 130 6-Ф17 66 28 365 380 152 11/12.5
BNXQ-*-2.5/*-L(F)-* 2.5 430 445 14/15
BNXQ-*-4/*-L(F)-* 4 540 555 16/18.5
BNXQ-*-6.3/*-L(F)-* 6.3 710 725 22/22.5
BNXQ-*-10/*-L(F)-* 10 M60×2 70 55 65 125 160 6-Ф21 90 32 650 665 219 39/48
BNXQ-*-16/*-L(F)- 16 860 875 54/63
BNXQ-*-20/*-L(F)-* 20 985 1000 62/72
BNXQ-*-25/*-L(F)-* 25 1160 1175 74/84
BNXQ-*-32/*-L(F)-* 32 1400 1415 90/101
BNXQ-*-40/*-L(F)-* 40 1680 1695 108/119
BNXQ-*-20/*-L(F)-* 20 M72×2 80 70 80 150 200 6-Ф26 106 40 680 695 299 80/91
BNXQ-*-25/*-L(F)-* 25 770 785 90/102.5
BNXQ-*-40/*-L(F)-* 40 1050 1065 118/136
BNXQ-*-50/*-L(F)-* 50 1230 1245 138/159.5
BNXQ-*-63/*-L(F)- 63 1470 1485 171/197
BNXQ-*-80/*-L(F)-* 80 1810 1825 213/246
BNXQ-*-100/’-L(F)-* 100 2190 2205 253/293
BNXQ-*-150/*-L(F)-* 150 3125 3140 335/393
BNXQ-*-63/*-L(F)-* 63 1170 1185 170/185.5
BNXQ-*-80/*-L(F)-* 80 M85×2 95 83 95 170 230 6-Ф26 110 40 1395 1410 351 206/225
BNXQ-*-100/*-L(F)-* 100 1660 1675 250/273
BNXQ-*-125/*-L(F)-* 125 1990 2005 304/332
BNXQ-*-150/*-L(F)-“ 150 2310 2325 356/389
BNXQ-*-160/*-L(F)- ° 160 2450 2465 379/414
BNXQ-*-180/*-L(F)-* 180 2700 2715 420/459
BNXQ-*-200/*-L(F)-* 200 2980 2995 466/509
