Sucker Rod Tools including sucker rod elevators, sucker rod BOPs, sucker rod hooks and sucker rod wrenches.
CAMTOP provides sucker rod tools of different sizes.
Made from high-quality heat-treated alloy.
Strictly tested according to API.
Easy for operation for safety use.

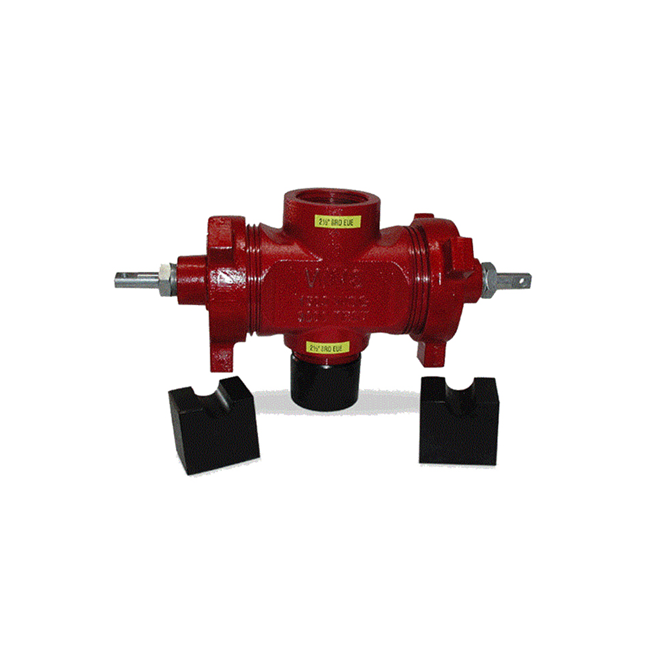

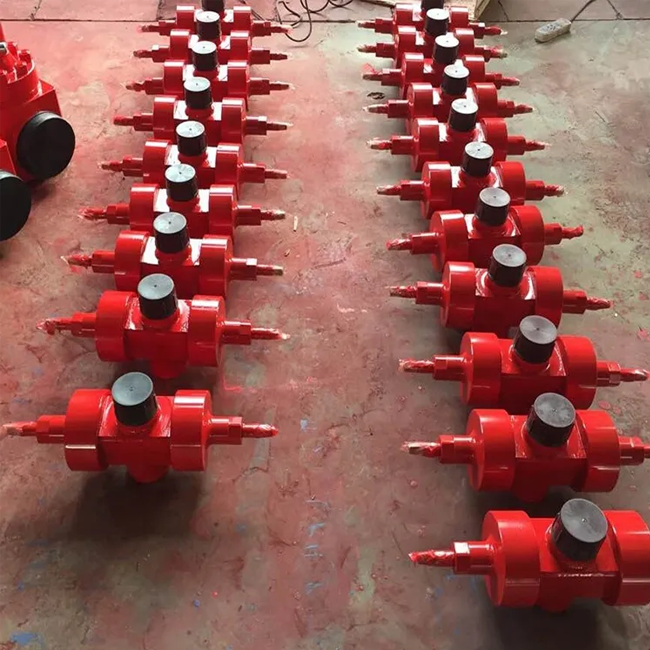

Sucker Rod BOP
Description
Sucker Rod BOP
Features of Sucker Rod BOP:
- The working pressure: 1500PSI to 5000PSI.
- Suitable for sucker rod specifications: 5/8″~1 1/2″.
- Easy to operation while drilling.
- API certified product, quality can be assured.
- Short delivery time.
Sucker rod BOP is used to prevent the oil and gas from leaking and ensure the washing wells and etc, its max working pressure is 1500psi and it is used for 1/2″ to 1-1/8″ sucker rod.
Technical Parameters of Sucker rod BOP:
Max. Working Pressure: 10.5MPa (1,500PSI)
Suitable Sucker Rod: 5/8-1.1/8 (16-29mm)
Upper and Lower Thread Joint: 3.1/2 UP TBG
| size | 1″,1-1/8″,1-1/4″,1-1/2″,1-3/4″ |
|---|---|
| structure | single packed, double packed |
| matierial | carbon steel AISI 1018-1045 alloy steel AISI 4130-4140 |
| working pressure | 1500psi |
| working tempreture | -20°C to 200 °C |
| connection | NUE, EUE, LP |
