Description

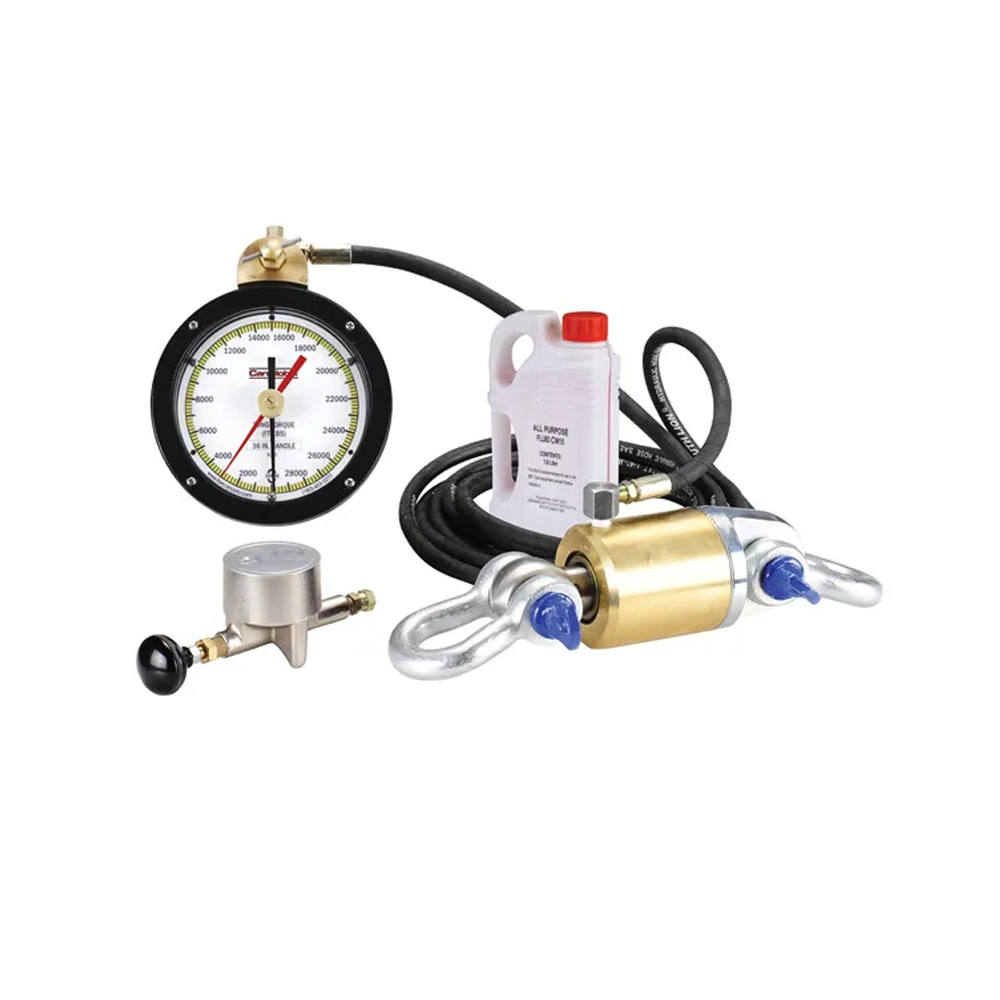

Tong torque system consists of tong torque load cell, tong torque gauge (installed in the driller display), and hydraulic hose.

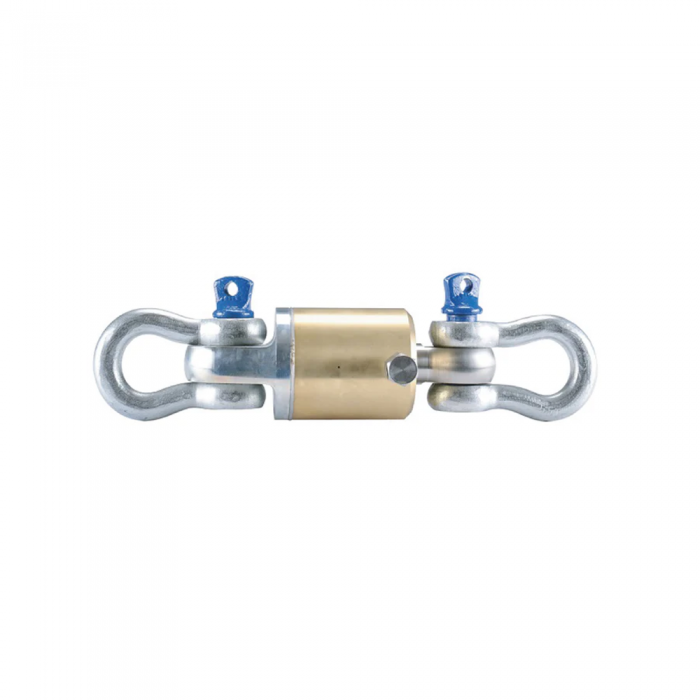

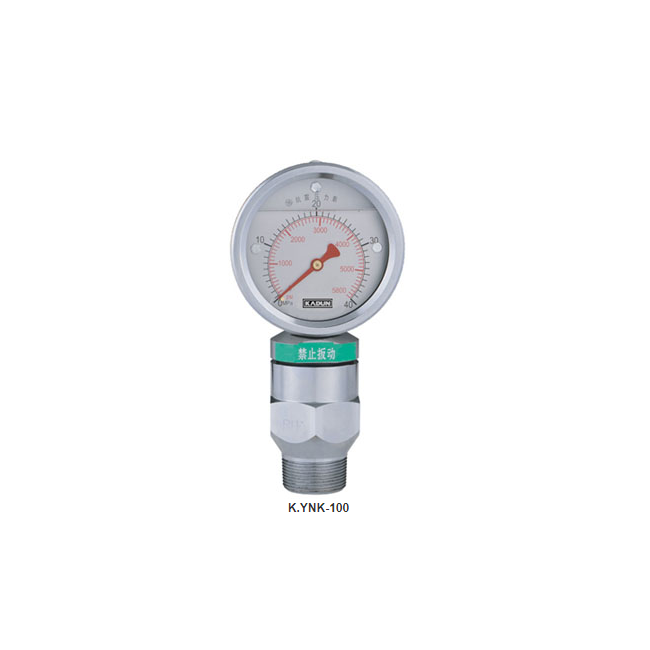

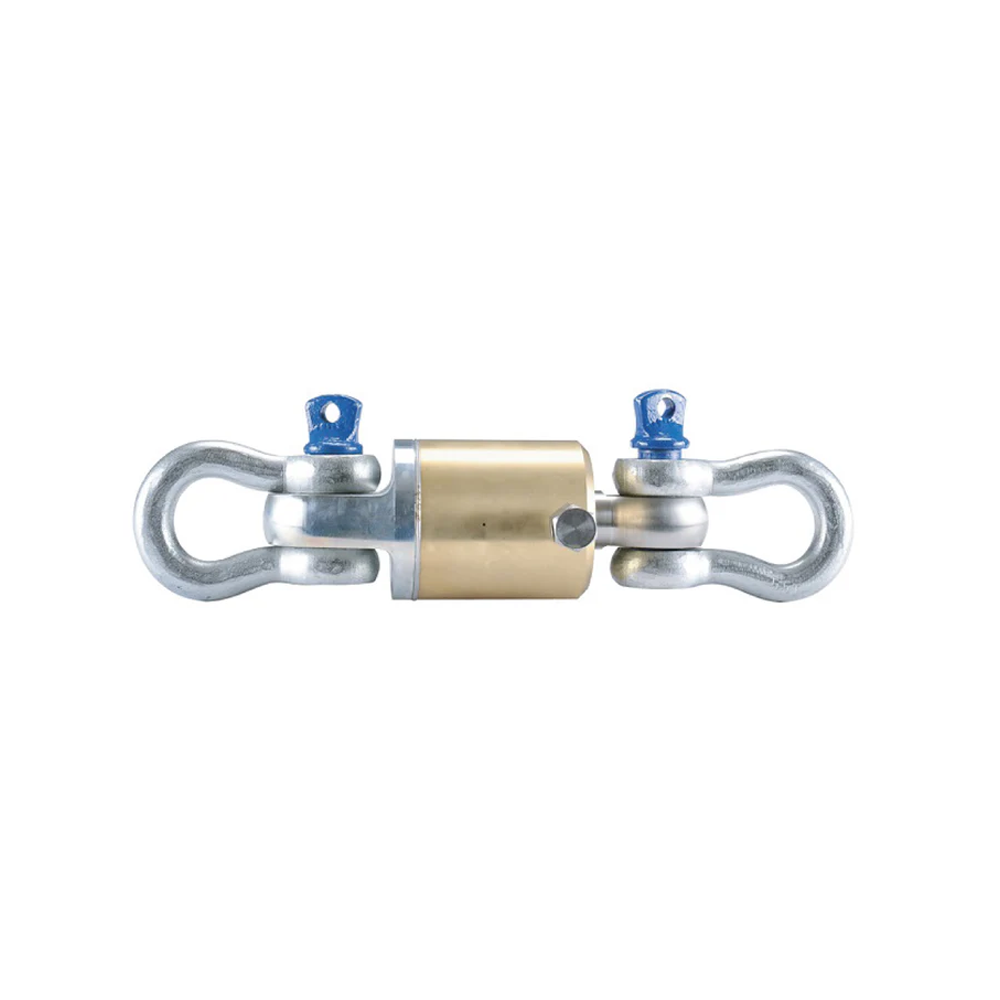

Load cell installed in the wire line of the power tong, when the drill pipe screws, it will be the pulling force which is proportional with the tightening torque on the wire line rope. This pulling force act on hydraulic fluid through piston of load cell, connect wire line to transmit on the bourdon tube of the gauge. The bourdon tube moves, it makes the pointer through the movement, then indicates the force of the power tong.
Use power tong or casing tongs, May not use load cells, connects wire line in power tong or in casing tongs hydraulic pressure source directly.

Features

• Modes avalibale for specific makes and models of power tons.
• Tension or Compression load cell avaliable for use in all power tong configurations.
• Indicates torque (in foot-pounds) applied to each joint when using power tongs to run pipe or casings.
• Operator Adjustable target pointer that the driller sets to a corresponding torque requirement
• Indicator make up or break out torque (in pounds of line pull) for all oilfield tubulars.
