Description

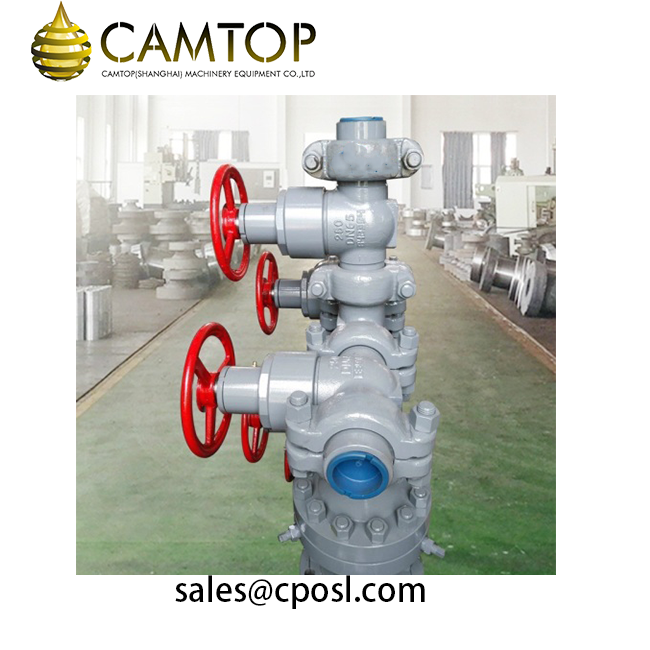

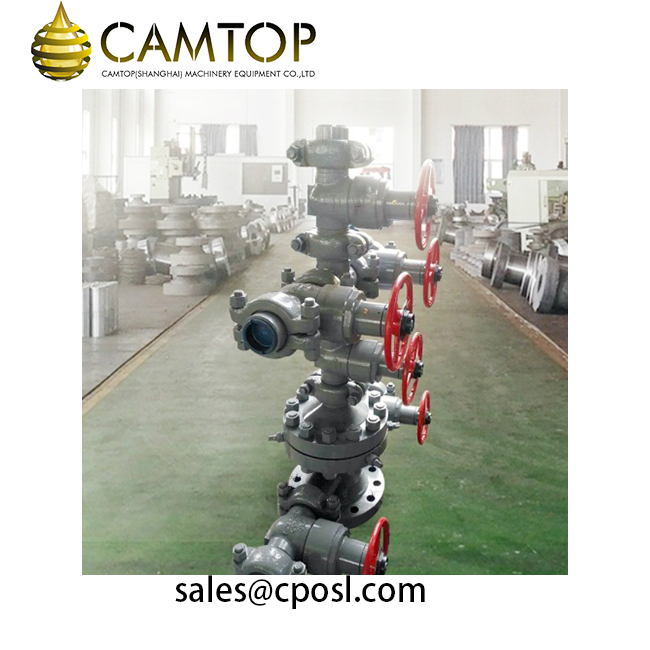

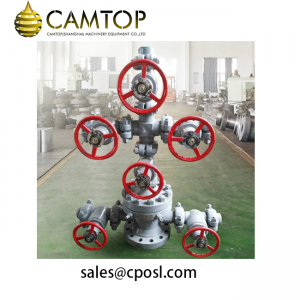

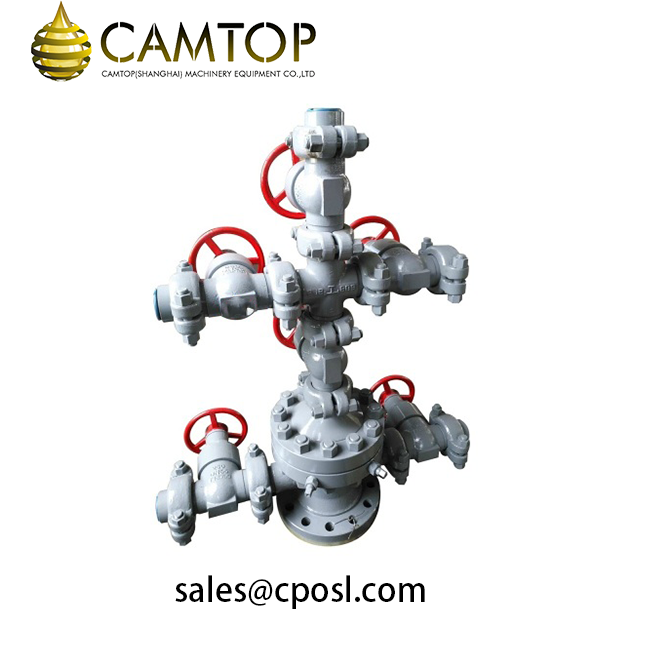

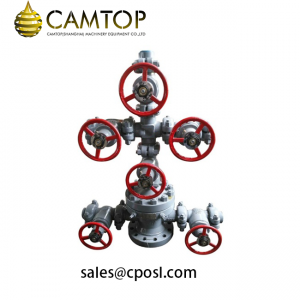

API 6A Wellhead Assembly and Christmas Tree for Oil Well
Overview
A Wellhead Assembly and Christmas Tree is the component at the surface of an oil well or a gas well that provides the structural and pressure-containing interface for the drilling and production equipment.
The primary purpose of a wellhead is to provide the suspension point and pressure seals for the casing strings that run from the bottom of the hole sections to the surface pressure control equipment.
There are many types wellhead assemblies and christmas trees available in today’s market, such as oil well wellhead, gas well wellhead, water injection wellhead, thermal recovery wellhead or steam injection wellhead, fracturing wellhead. Compared to gas wellheads which can use for both oil well and gas well, the wellhead assembly and xmas tree for oil well is relatively lower in terms of pressure rating and sizes and it can only use for oil well application.
CAMTOP’S’s wellhead assembly and christmas trees for oil well are fully designed, manufactured, and tested in accordance with API 6A and NACE-MR0175 standards. Available in bore sizes from 2-1/16″ to 4-1/16″ and rated working pressure ranging from 2000PSI to 5000PSI. The standard main material is AISI 4130 alloy steel (forged), other material and specifications are also available upon request.
Product Attribute
Delivery Date: | 45 days | Nominal Bore: | 52mm – 103mm |
---|---|---|---|
Rated Working Pressure: | 2000 PSI – 5000 PSI | Material: | AISI 4130 Forged |
Working Medium: | Crude Oil | Material Class: | AA, BB, CC, DD, EE, FF, HH |
Temp Class: | PU – LU | Performance Requirement: | PR1, PR2 |
Product Specification Level: | PSL1, PSL2, PSL3, PSL3G, PSL4 | Carried Standard: | API Spec 6A, NACE MR0175 |
Application: | Petroleum Drilling & Production |
Detailed Specifications:
Product Name: Wellhead Assembly and Christmas Tree for Oil Well
Nominal Bore Size: 2-1/16″ to 4-1/16″
Main Components: Casing Head Assembly, Tubing Head Assmbly, Slab Gate Valves
Pressure Rating: 2000PSI, 3000PSI, 5000 PSI
Material Class: AA, BB, CC, DD, EE, FF, HH
Main Material: AISI4130 Forged
Temperature Class: L-U
Working Medium: Crude Oil
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL3G
Standards: API Spec 6A, NACE MR0175, CE, ISO9001 etc
Traceability: CAMTOP’S’s wellhead assembly and xmas trees are supplied with full traceability documentation for each component.
Appliaction: Petroleum Drilling & Production
Origin: China
Packing: Plywood
Cross
Slab Gate Valve
Test Plugs
Tubing Heads
Tubing Hangers
Tubing Head Adapter
Features/Others
Petroleum production tree can be both single or double wing structures.
Integral forged valve body with fine mechanical properties.
Trims are made of material with fine wear resistance and scour resistance.
Easy to operate and simple to maintain
On-Time delivery and competitively priced
