Y40-20 RELIEF VALVE

The overflow valves in the ground-based BOP control device are all used for safety valves and are divided into two types: low-pressure relief valve and high-pressure relief valve. The setting pressures of the two valves are different.

Description

Y40-20 RELIEF VALVE

The overflow valves in the ground-based BOP control device are all used for safety valves and are divided into two types: low-pressure relief valve and high-pressure relief valve. The setting pressures of the two valves are different.

4 JB982-77 Gasket 1
3 Y08-98B Valve seat 1
2 Y08-08A Valve Rod 1
1 GB3452.1-82 O-ring 1
Item No. Code Description Qty

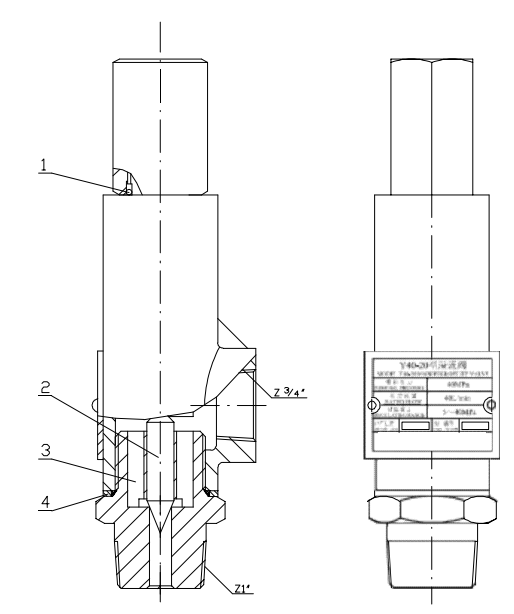

Model Y40-20 Relief Valve
Drawing No. Y9-00B
