Drilling Jar
Mechanical Drilling Jar
The mechanical drilling jar type JZ takes the appliance of mechanical structure And high pressure will not produce in inner chamber as to create a good sealing property and greatly extend the service life During the drilling operation, the jarring mechanism has no action due to its unique structure which can not be controlled by the common drilling condition and torque, and its unique structure can accurately transmit the torque Moreover, the up or down jarring blow is adjustable prior to tripping in and will not change during the downhole operation so as to keep a constant jarring load
Drilling Jar
| Specification Series and Performance Parameters | |||||||||
| TYPE | O D mm (in ) |
I D mm (in ) |
Connection API |
Max Tensile Load MN (Lbf) |
Max Working torque k N·m (Lbf·m) |
Pumping area cm2 |
Up jarring stroke mm (in ) |
Down jarring stroke mm (in ) |
Overall length ( locked) mm (in ) |
| JZ95 | 95 (3 3/4) |
28 (1 1/8) |
2 7/8REG | 0 5 (112500) |
5 (1,125) |
32 | 200 (7 87) |
200 (7 87) |
5 800 (228 35) |
| JZ108 | 108 (4 1/4) |
36 (1 7/16) |
NC31 | 0 7 (157500) |
10 (2,250) |
38 | 203 (8 00) |
203 (8 00) |
6 404 (252 13) |
| JZ121 | 121 (4 3/4) |
51 4 (2) |
NC38 | 1 0 (225000) |
12 (2,700) |
60 | 198 (7 80) |
205 (8 07) |
6 343 (249 72) |
| JZ159Ⅲ | 159 (6 1/4) |
57 (2 1/4) |
NC46 | 1 5 (337500) |
14 (3,150) |
100 | 149 (5 87) |
166 (6 54) |
6 517 (256 57) |
| JZ165 | 165 (6 1/2) |
57 (2 1/4) |
NC50 | 1 6 (360000) |
14 (3,150) |
100 | 149 (5 87) |
166 (6 54) |
6 517 (256 57) |
| JZ178 | 178 (7) |
57 (2 1/4) |
NC50 | 1 8 (405000) |
15 (3,150) |
100 | 147 5 (5 81) |
167 5 (6 59) |
6 570 (258 66) |
| JZ203 | 203 (8) |
71 4 (2 13/16) |
6 5/8REG | 2 2 (495000) |
18 (4,050) |
176 | 144 5 (5 69) |
176 5 (6 95) |
7 234 (284 80) |
| JZ229 | 229 (9) |
76 (3) |
7 5/8REG | 2 5 (562500) |
22 (4,950) |
181 | 203 (8 00) |
203 (8 00) |
7 753 (305 24) |

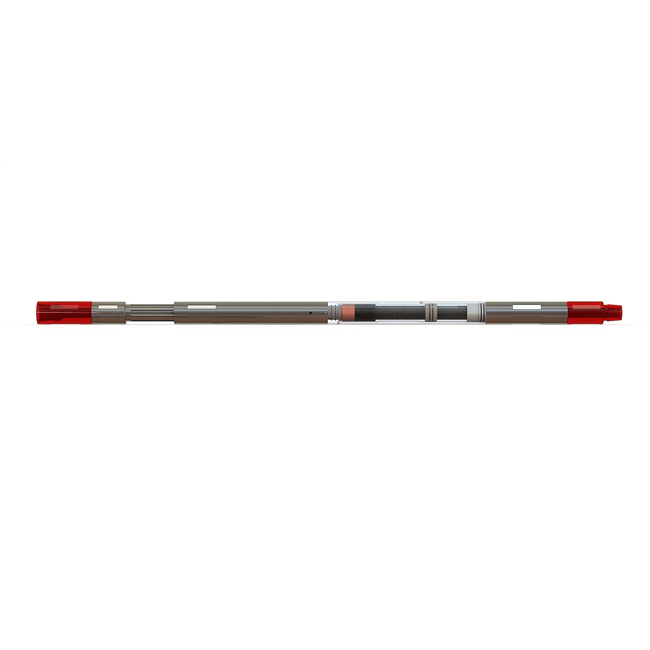

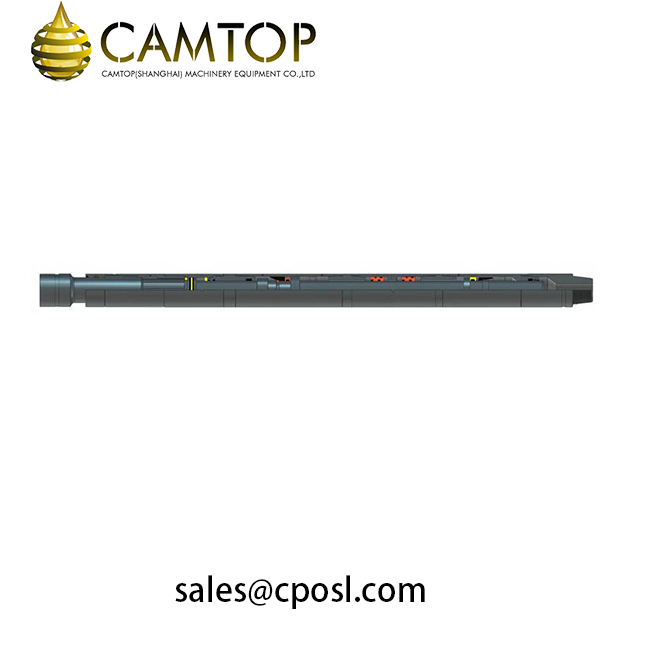

Full Hydraulic Drilling Jar
The full hydraulic drilling jar type QY is a double-acting hydraulic jar and is used to free equipment stuck down hole It can be used with a down hole motor, because it is capable of torque transmission, and is ideal for use in coiled tubing operations, snubbing, rotary drilling and fishing applications By adjusting the amount of surface push or pull (no torque or external adjustments are required) the operator can deliver very light or maximum impacts in either direction
| Specification Series and Performance Parameters | ||||||||
| Type | O D mm(in ) |
Water Hole mm(in ) |
Overall Stroke mm(in) |
Max Up Jarring Load kN(lbf) |
Max Down Jarring Load kN(lbf) |
Connection API |
Max Tensile load KN(lbf) |
Max Working Torque kN·m |
| QY121 | 121 (4 3/4) |
51 4 (2) |
9442 | 350 （78000） |
180 (40000) |
NC38 | 1000 (225000) |
3 5 (2580) |
| QY159 | 159 (6 1/4) |
69 (2 23/32) |
10323 | 700 （160000） |
350 (78000) |
NC46 | 1500 (337000) |
14 (10300) |
| QY165 | 165 (6 1/2) |
69 (2 23/32) |
10323 | 700 （160000） |
350 (78000) |
NC46 | 1500 (337000) |
14 (10300) |
| QY178 | 178 (7) |
69 (2 23/32) |
9850 | 800 （180000） |
400 (90000) |
NC50 | 1800 (405000) |
15 (11000) |
| QY203 | 203 (8) |
76 (3) |
10261 | 1000 （225000） |
500 (120000) |
6 5/8REG | 2200 (495000) |
18 (13000) |
| QY241 | 241 (9 1/2) |
76 2 (3) |
9987 | 1200 （270000） |
600 (135000) |
7 5/8REG | 2500 (562000) |
22 (16000) |

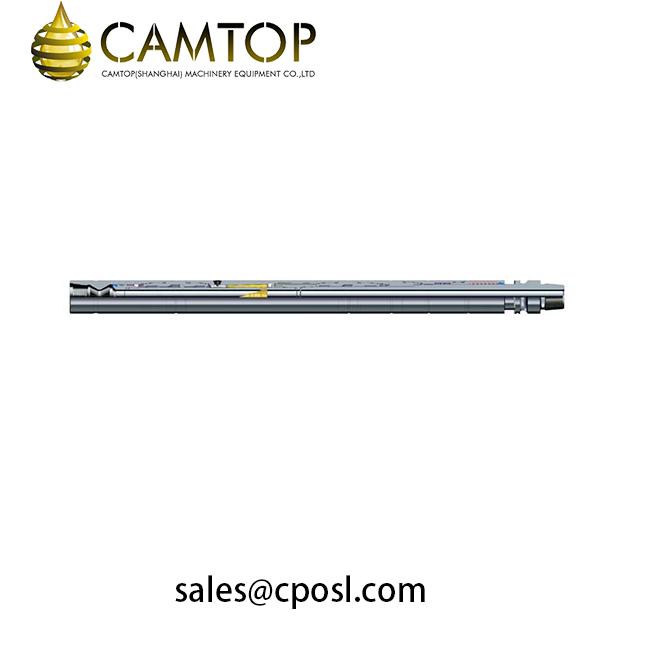

Hydro-mechanical Drilling Jar
The hydro mechanical drilling jar type ZXJ can be used either independently or in conjunction It is designed for use during drilling operations to apply an intensified force either up or down against a stuck portion of the drilling string Its unique design combines both a hydraulic time delay release and a mechanical latch mechanism, in one relatively short, double acting drilling jar Therefore, it is an ideal tool for drilling directional well, complicated well and slant well
| Specification Series and Performance Parameters | ||||||||
| Type | ZXJ36 | ZXJ46 | ZXJ 56 | ZXJ 62Ⅱ | ZXJ 64 | ZXJ 70 | ZXJ 76 | ZXJ 80 |
| OD mm (in ) | 95 (3 3/4) |
121 (4 3/4) |
146 (5 3/4) |
159 (6 1/4) |
165 (6 1/2) |
178 (7) |
197 (7 3/4) |
203 (8) |
| ID mm (in ) | 28 (1 1/10) |
51 (2) |
57 (2 1/4) |
57 (2 1/4) |
57 (2 1/4) |
70 (2 3/4) |
71 4 (2 4/5) |
71 4 (2 4/5) |
| Connection API | 27/8REG | NC38 | 41/2FH | NC46 | NC50 | NC50 | 65/8REG | 65/8REG |
| Max Tensile Load MN | 0 5 | 1 0 | 1 2 | 1 5 | 1 6 | 1 8 | 2 0 | 2 2 |
| Max Working Torque KN·m | 3 5 | 12 | 13 | 14 | 14 | 15 | 16 | 18 |
| Max Upward Jarring Load kN | 160 | 280 | 400 | 560 | 560 | 640 | 800 | 800 |
| Max Upward Jarring Stroke mm (in) | 254 (10) |
305 (12) |
330 (13) |
346 (13 62) |
346 (13 62) |
346 (13 62) |
370 (14 56) |
370 (14 56) |
| Max Downward Jarring Load kN | 100 | 220 | 300 | 420 | 420 | 480 | 600 | 600 |
| Max Downward Jarring Stroke mm(in) | 178 (7) |
182 (7 16) |
182 (7 16) |
182 (7 16) |
182 (7 16) |
182 (7 16) |
181 (7 12) |
181 (7 12) |
| Max Working Temperature ℃ | 150 | 150 | 120 | 120 | 120 | 120 | 120 | 120 |
| Sealing Pressure MPa | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Overall Length of Up mm (in) | 4 162 (163 85) |
6 093 (239 88) |
5 410 (213) |
6 394 (251 73) |
6 736 (265 2) |
6 354 (250 15) |
6 295 (247 83) |
6 222 (244 96) |
| Overall Length of Down mm (in) | 3 275 (128 93) |
5 138 (202 28) |
5 000 (196 9) |
5 371 (211 45) |
5 457 (214 8) |
5 457 (214 8) |
5 244 (206 45) |
5 249 (206 65) |

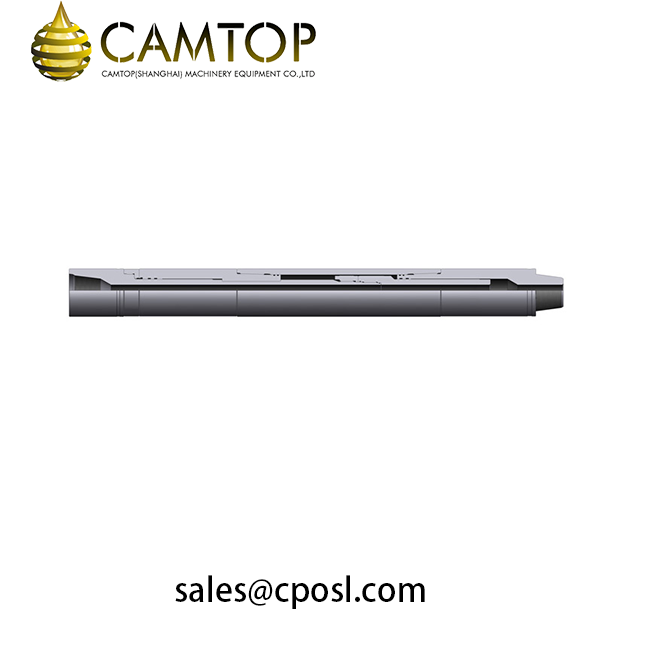

Drilling Bumper Sub
The drilling bumper sub type ZKX mainly makes the down jarring blow operation, releasing the stuck accident such as the sticking, land filling and keyway effectively and so on Moreover, it can be also used for fishing operation, or it can be considered as “heave compensator” during offshore drilling
| Specification Series and Performance Parameters | |||||||
| Type | Tool O D mm（in） |
Hole Diameter mm（in） |
Connection API |
Overall Stroke mm(in) |
Max Working Load kN(lbf) |
Max Working Torque kN m |
Max Tensile Load kN(lbf) |
| ZKX46 | 121(4 3/4) | 50(2) | NC38 | 508(20) | 350(79000) | 8(5900) | 900(202000) |
| ZKX76 | 197(7 3/4) | 76(3) | 6 5/8REG | 1520(59 7/8) | 770(173000) | 15(11000) | 1800(404000) |
| ZKX90 | 229(9) | 76(3) | 7 5/8REG | 1520(59 7/8) | 1300(292000) | 20(15000) | 2200(494000) |

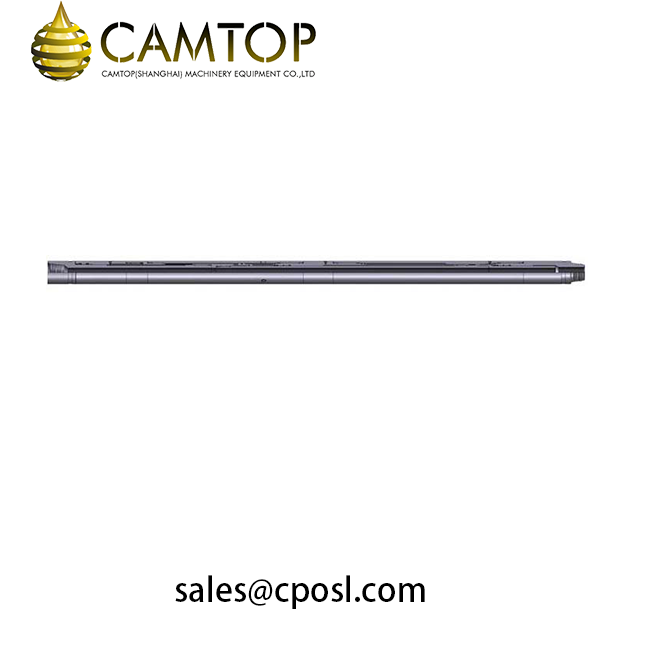

Drilling Accelerator
The drilling accelerator type ZJQ is run in conjunction with a hydraulic drilling jar of the same size, and is manufactured from high strength alloy steel The tool can not only strengthen the jarring force, but also can absorb much of the jarring shock from the rebounding string to protect tools and strings from damage
| Specification Series and Performance Parameters | ||||||||
| Type | O D mm (in) |
Hole Diameter (in) |
Connection API | Max Working Stroke mm (in) |
Seal Pressure Mpa | Max Working Load KN |
Max Working Torque KN M | Overall Length mm (in) |
| ZJQ 46 |
121 (4 3/4) |
50 (2) |
NC38 | 350 (13 78) |
30 | 350 (78750) |
8 (5900） |
7430 (292 5) |
| ZJQ 62 |
159 (6 1/4) |
57 (2 1/4) |
NC50 | 350 (13 78) |
30 | 700 (157500) |
13 (9600) |
7780 (306 3) |
| ZJQ 64 |
165 (6 1/2) |
57 (2 1/4) |
NC50 | 350 (13 78) |
30 | 750 (168750) |
14 (10400) |
7780 (306 3) |
| ZJQ 76 |
197 (7 3/4) |
61 9 (2 2/5) |
6 5/8REG | 350 (13 78) |
30 | 1000 (225000) |
18 (13300) |
7630 (300 4) |
| ZJQ 80 |
203 (8) |
76 2 (3) |
6 5/8REG | 350 (13 78) |
30 | 1000 (225000) |
18 (13300) |
7752 (305 2) |
| ZJQ 95 |
241 (9 1/2) |
76 (3) |
7 5/8REG | 350 (13 78) |
30 | 1200 (270000) |
22 (16300) |
6752 (265 8) |

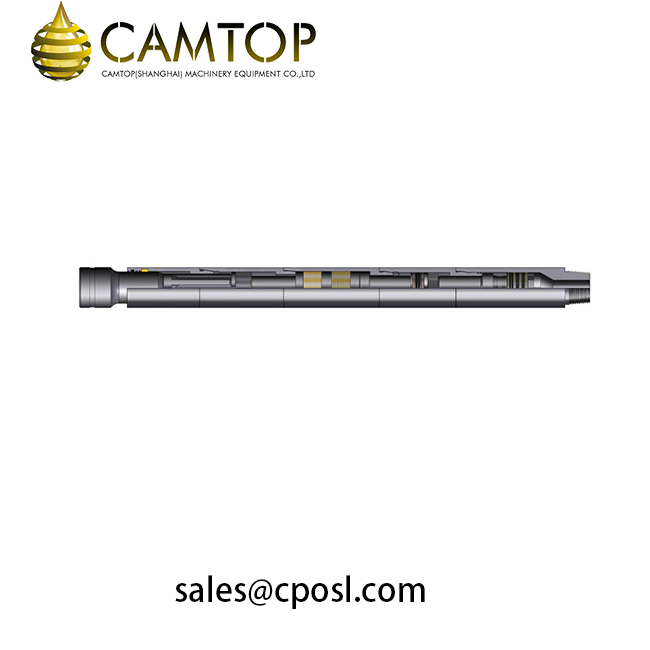

Double-acting Mechanical-hydraulic Drilling Jar
The double acting mechanical-hydraulic drilling jar type JYQ is designed for drilling operation to apply an intensified force either up or down against a stuck portion of the drilling string It incorporates the feature of both hydraulic and mechanical drilling jars, without of the inherent disadvantage of either type Its unique design combines both a hydraulic time delay release and mechanical latch mechanism in one relatively short, double acting drilling jar
| Specification Series and Performance Parameters | |||||||||||
| Type | O D mm (in) |
I D mm (in) |
Tool Joint Connection API |
Up Stroke mm (in) |
Down Stroke mm (in) |
Working Torque kN m (Lb ft) |
Max Tensile Load kN (Lbf) |
Max up Jarring KN (Lbf) |
Max down Jarring KN (Lbf) |
Overall Length mm (in) |
Piston areas mm2 |
| JYQ121 | 124 (4 7/8) |
50 8 (2) |
NC38 | 227 (8 9) |
102 (4) |
12 5 (21000) |
1300 (362000) |
250 (56250) |
200 (45000) |
4500 (177) |
2516 |
| 121 (4 3/4) |
57 2 (2 1/4) |
NC38 | 227 (8 9) |
102 (4) |
12 5 (21000) |
1300 (362000) |
250 (56250) |
200 (45000) |
4500 (177) |
2827 | |
| JYQ159 | 159 (6 1/4) |
57 (2 1/4) |
NC46 | 230 (9) |
152 (6) |
15 (21000) |
2220 (730000) |
600 (135000) |
330 (74250) |
5007 (197) |
6446 |
| JYQ165 | 165 (6 1/2) |
70 (2 3/4) |
NC50 | 230 (9) |
152 (6) |
15 (21000) |
2220 (730000) |
600 (135000) |
330 (74250) |
5007 (197) |
6446 |
| JYQ178 | 178 (7) |
70 (2 3/4) |
NC50 | 230 (9) |
152 (6) |
18 (25200) |
2220 (730000) |
600 (135000) |
330 (74250) |
5007 (197) |
6446 |
| JYQ203 | 203 (8) |
76 2 (3) |
65/8REG | 232 (9 1) |
152 (6) |
25 (35000) |
2500 (1000000) |
800 (180000) |
400 (90000) |
5095 (200) |
9170 |
| JYQ241 | 241 (9 1/2) |
76 2 (3) |
75/8REG | 232 (9 1) |
152 (6) |
50 (70000) |
5400 (2160000) |
1400 (315000) |
460 (103500) |
5300 (208) |
172 |
